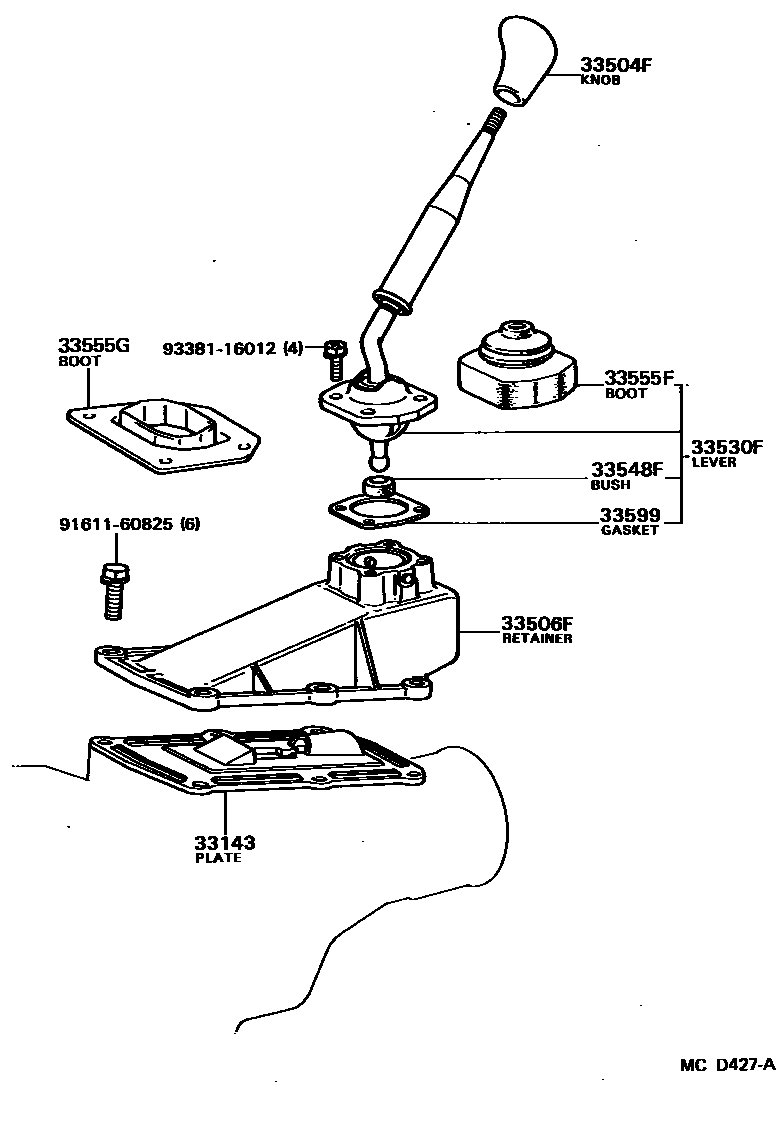

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020iGA70..5F198602-198808

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14090-02iGA70..5F..(G,GT,S)198602-198808

MAROON,MAROON,TRIM3#

sub33504-24010

main33504-14090-03iGA70..5F..(G,GT,S)198701-198808

GRAY,MEDIUM GRAY,TRIM1#

sub33504-24010

main33504-14090-04iGA70..5F..(G,GT,S)198602-198808

BLUE,DEEP BLUE,TRIM8#

sub33504-24010

main33504-14090-05iGA70..5F..(G,GT,S)198602-198701

BEIGE,BEIGE,TRIM4#

sub33504-24010

main33504-14100-02iGA70,MA70..5F..(GTL,GTT)198602-198808

MAROON,MAROON,TRIM3#

sub33504-14101

main33504-14100-03iGA70,MA70..5F..(GTL,GTT)198701-198808

GRAY,MEDIUM GRAY,TRIM1#

sub33504-14101

main33504-14100-04iGA70,MA70..5F..(GTL,GTT)198602-198808

BLUE,DEEP BLUE,TRIM8#

sub33504-14101

main33504-14100-05iGA70..5F..GTT198602-198701

BEIGE,BEIGE,TRIM4#

sub33504-14101

main33542-32040-12iGA70,MA70..4FC198602-198808

MAROON,MAROON,TRIM3#

main33542-32040-13iGA70,MA70..4FC198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main33542-32040-15iGA70,MA70..4FC198602-198701

BEIGE,DARK BEIGE,TRIM4#

main33542-32040-24iGA70,MA70..4FC198602-198808

BLUE,DEEP BLUE,TRIM8#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-14050iMA70..5F198701-198808

main33570-22070iGA70..5F198602-198808

sub33570-30010

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-14380iGA70,MA70..5F198602-198808

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iGA70,MA70..5F198602-198808

33555BOOT, SHIFT LEVER

main33555-14060iGA70,MA70..4FC198602-198808

33555FBOOT, SHIFT & SELECT LEVER, NO.2

main33555-22050iGA70,MA70..5F198602-198808

33555GBOOT, SHIFT & SELECT LEVER, NO.3

main33555-14080iGA70,MA70..5F198602-198808

sub33555-14070

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iGA70,MA70..5F198602-198808

9161160825

main91611-60825

9338116012

main93381-16012

11 parts on this diagram · 3 diagrams in section
