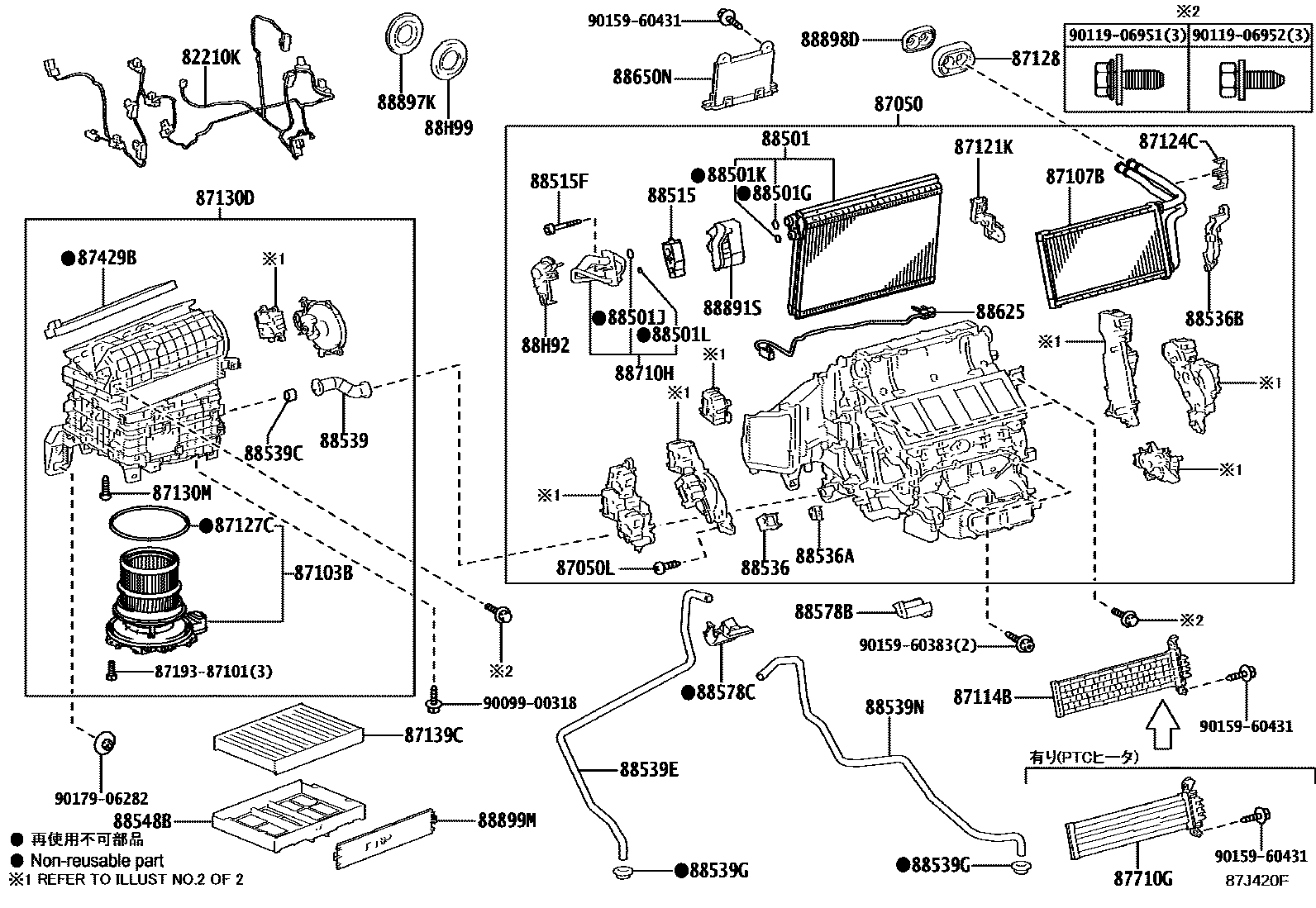

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1���������

82210KHARNESS ASSY, AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87106-11010

main87106-11020

main87106-11050

main87050-62050

main87106-11060

main87050-62090

main87050-62120

main87106-50600

main87106-50700

main87106-50710

main87106-50730

main87106-50740

main90099-00968

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main90099-00968×24iJPD20..Z202312-202411

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-50190iJPD20202312-202411

87107BUNIT SUB-ASSY, HEATER RADIATOR

main87107-62030iJPD20202312-202411

87114BCOVER, HEATER

main87114-30010iJPD20202312-202411

87121KBRACKET, HEATER

main87121-11040iJPD20202312-202411

87124CCLAMP, HEATER

main87124-33070iJPD20202312-202411

87127CPACKING, BLOWER MOTOR SUB-ASSY, NO.1

main87127-11010iJPD20202312-202411

87128GROMMET, HEATER

main87128-28020iJPD20202312-202411

87130DBLOWER ASSY

main87130-50190iJPD20202011-202312

87130MSCREW(FOR BLOWER)

main90099-00968×13supersedes 90099-00968iJPD20202312-202411

87139CFILTER, CLEAN AIR

main87139-50110iJPD20202312-202411

87429BPACKING, COOLER UNIT, NO.1

main87429-53010iJPD20202312-202411

87710GQUICK HEATER ASSY

main87710-30050iJPD20202011-202212

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30A30iJPD20202312-202411

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iJPD20202312-202411

88501JO-RING, COOLER EVAPORATOR NO.2(SUCTION)

main90099-14121iJPD20202312-202411

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iJPD20202312-202411

88501LO-RING, COOLER EVAPORATOR NO.2(LIQUID)

main90099-14119iJPD20202312-202411

88515VALVE, COOLER EXPANSION

main88515-50320iJPD20202312-202411

88515FBOLT(FOR COOLER EXPANSION VALVE)

main88899-44050×2iJPD20202312-202411

88536BRACKET, COOLING UNIT, NO.1

main87241-11020iJPD20202312-202411

88536ABRACKET, COOLING UNIT, NO.2

main87241-11040iJPD20202312-202411

88536BBRACKET, COOLING UNIT, NO.3

main87241-11060iJPD20202312-202411

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-11050iJPD20202011-202312

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-30A00iJPD20202312-202411

88539EHOSE, COOLER UNIT DRAIN, NO.3

main88539-11030iJPD20202312-202411

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26029×2iJPD20202312-202411

88539NHOSE, COOLER UNIT DRAIN, NO.4

main88539-50200iJPD20202312-202411

88548BCASE, AIR FILTER

main88899-50140iJPD20202312-202411

88578BPACKING, COOLING UNIT, NO.1

main88578-11010iJPD20202312-202411

88578CPACKING, COOLING UNIT, NO.2

main88578-11020iJPD20202312-202411

88625THERMISTOR, COOLER, NO.1

main88620-50020iJPD20202312-202411

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-62070iJPD20202011-202212

main88650-62083iJPD20202212-202306

main88650-62084iJPD20202306-202312

main88650-62090iJPD20202312-202411

main88650-62091iJPD20202412

main88650-62100iJPD20..Z202406-202411

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-11020iJPD20202312-202411

88891SCOVER, COOLER, NO.1

main88891-50120iJPD20202312-202411

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iJPD20202312-202411

88898DGROMMET

main87128-28010iJPD20202312-202411

88899MPLATE, COVER(FOR AIR FILTER)

main88899-50150iJPD20202312-202411

88H92COVER, COOLER, NO.2

main88892-50140iJPD20202312-202411

88H99PARTS, COOLING UNIT

main88899-11020iJPD20202312-202411

8719387101

main87193-87101

9009900318

main90099-00318

9011906951

main90119-06951

9011906952

main90119-06952

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

49 parts on this diagram · 2 diagrams in section
