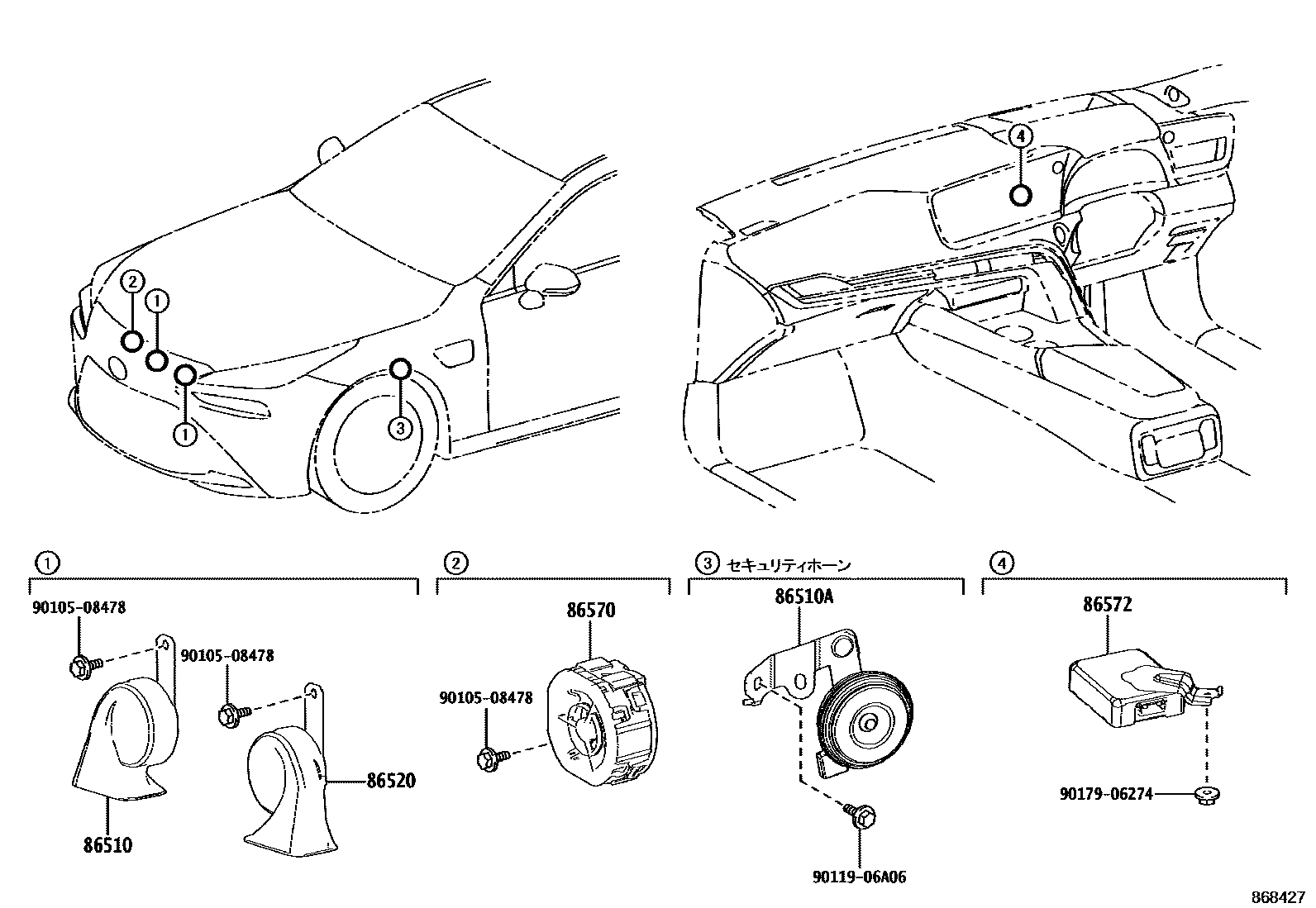

HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-30740iJPD20¥2,480202011-202411

86510AHORN ASSY, SECURITY

main86560-50030iJPD20¥2,190202011-202411

86520HORN ASSY, LOW PITCHED

main86520-30650iJPD20¥2,480202011-202411

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-30080iJPD20202011-202108

main86570-62040iJPD20202108-202411

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-62010iJPD20202011-202108

main86572-62070iJPD20202108-202312

main865H2-62020iJPD20..Z¥8,800202312-202411

9010508478

main90105-08478¥80

9011906A06

main90119-06A06¥60

9017906274

main90179-06274¥70

8 parts on this diagram · 2 diagrams in section
