SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-62050iJPD20..G¥19,600202011-202411

main86150-62100iJPD20..Z¥29,600202011-202411

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-62010iJPD20..Z¥7,100202011-202212

86150CSPEAKER ASSY, W/BOX, NO.3

main86150-62020iJPD20..Z¥7,100202011-202212

86150DSPEAKER ASSY, W/BOX, NO.4

main86150-62130iJPD20¥3,080202011-202411

86160SPEAKER ASSY, FRONT NO.1

main86160-33A10iJPD20..Z¥23,500202011-202411

main86160-62010iJPD20..G¥6,300202011-202411

86160BSPEAKER ASSY, REAR

main86160-62020iJPD20..Z¥20,000202011-202411

main86160-76140iJPD20..G¥6,300202011-202411

86160JSPEAKER ASSY, FRONT NO.3

main86150-33060iJPD20..Z¥9,300202011-202411

86160PSPEAKER ASSY, FRONT NO.2

main86150-62140iJPD20..G¥6,300202011-202411

main86160-33A30iJPD20..Z¥10,200202011-202411

86160YSPEAKER ASSY, REAR NO.2

main86150-33060iJPD20..Z¥9,300202011-202411

main86150-62070iJPD20..G¥5,200202011-202411

86160ZSPEAKER ASSY, REAR NO.3

main86150-62060iJPD20..Z¥10,600202011-202411

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-62010iJPD20..Z¥31,500202011-202212

main86240-62050iJPD20..Z202212-202312

main86240-62060iJPD20..Z¥28,600202312-202411

9011906A06

main90119-06A06¥60

9015950311

main90159-50311¥70

9015950327

main90159-50327¥70

9015960303

main90159-60303¥70

9017906274

main90179-06274¥70

9018906227

main90189-06227¥70

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

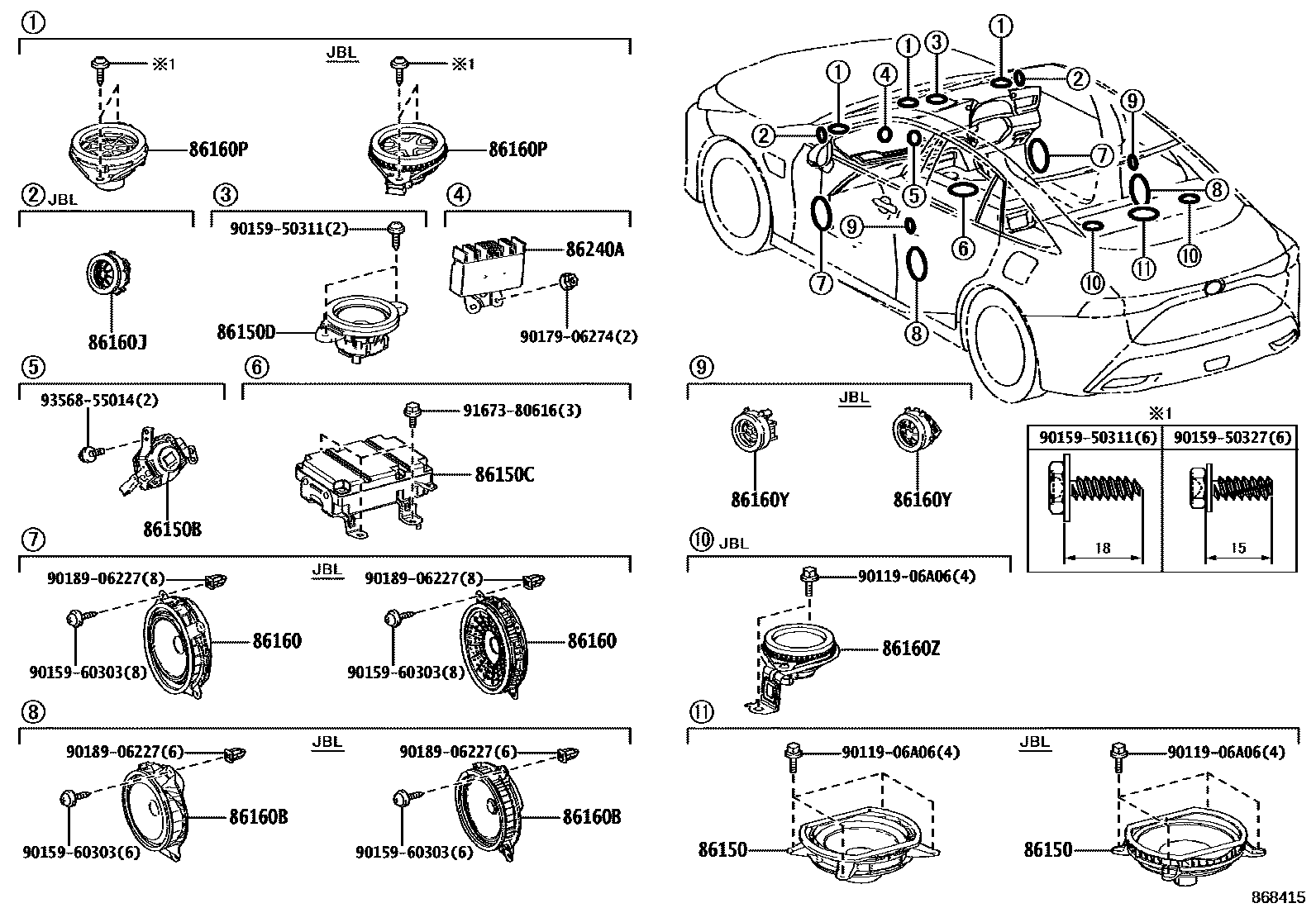

19 parts on this diagram · 1 diagram in section
