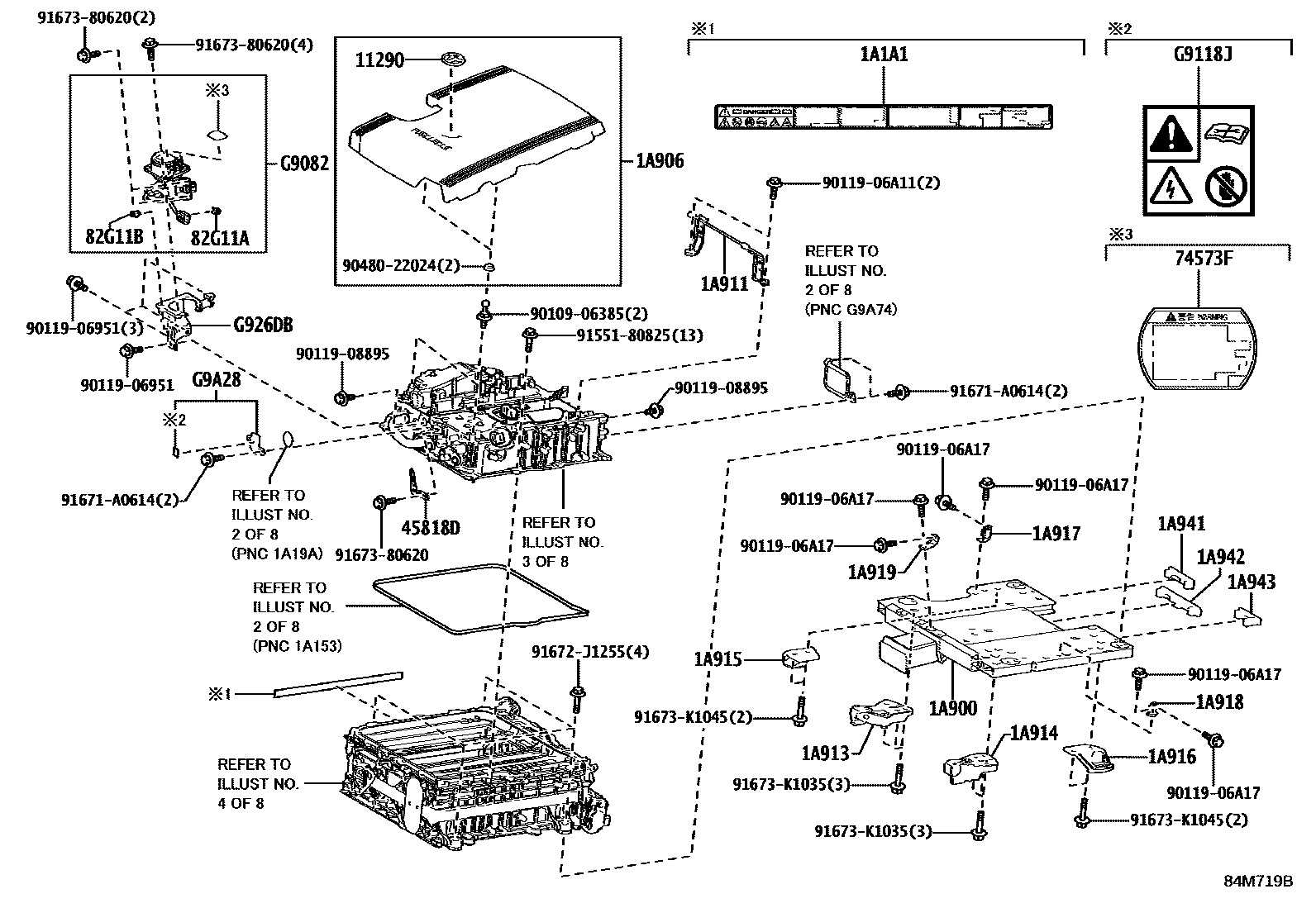

FCEV STACK & CONVERTER
11290PLATE ASSY, FC STACK NAME
1A900FRAME ASSY, FC STACK
1A911BRACKET, FC STACK COVER
1A913BRACKET, FC MOUNTING, FRONT RH
1A914BRACKET, FC MOUNTING, FRONT LH
1A915BRACKET, FC MOUNTING, REAR RH
1A916BRACKET, FC MOUNTING, REAR LH
1A917BRACKET, FC STACK FRAME SUPPORT, RH
1A918BRACKET, FC STACK FRAME SUPPORT, LH
1A919BRACKET, FC STACK FRAME SUPPORT, FRONT
1A941COVER, FC STACK FRAME, NO.1
1A942COVER, FC STACK FRAME, NO.2
1A943COVER, FC STACK FRAME, NO.3
45818DBRACKET, CONNECTOR
74573FLABEL, EV BATTERY CAUTION
82G11ACLAMP, WIRING HARNESS, NO.1
82G11BCLAMP, WIRING HARNESS, NO.2
G9082CABLE, DC EV POWER SUPPLY
G9118JLABEL, UNIT CONTROLLER CAUTION, NO.1
G926DBBRACKET, EV CHARGE CONNECTOR
G9A28COVER, FC CONVERTER SERVICE HOLE, FRONT
9010906385
main90109-06385
9011906951
main90119-06951
9011906A11
main90119-06A11
9011906A17
main90119-06A17
9011908895
main90119-08895
9048022024
main90480-22024
9155180825
main91551-80825
91671A0614
main91671-A0614
91672J1255
main91672-J1255
9167380620
main91673-80620
91673K1035
main91673-K1035
91673K1045
main91673-K1045
35 parts on this diagram · 8 diagrams in section
