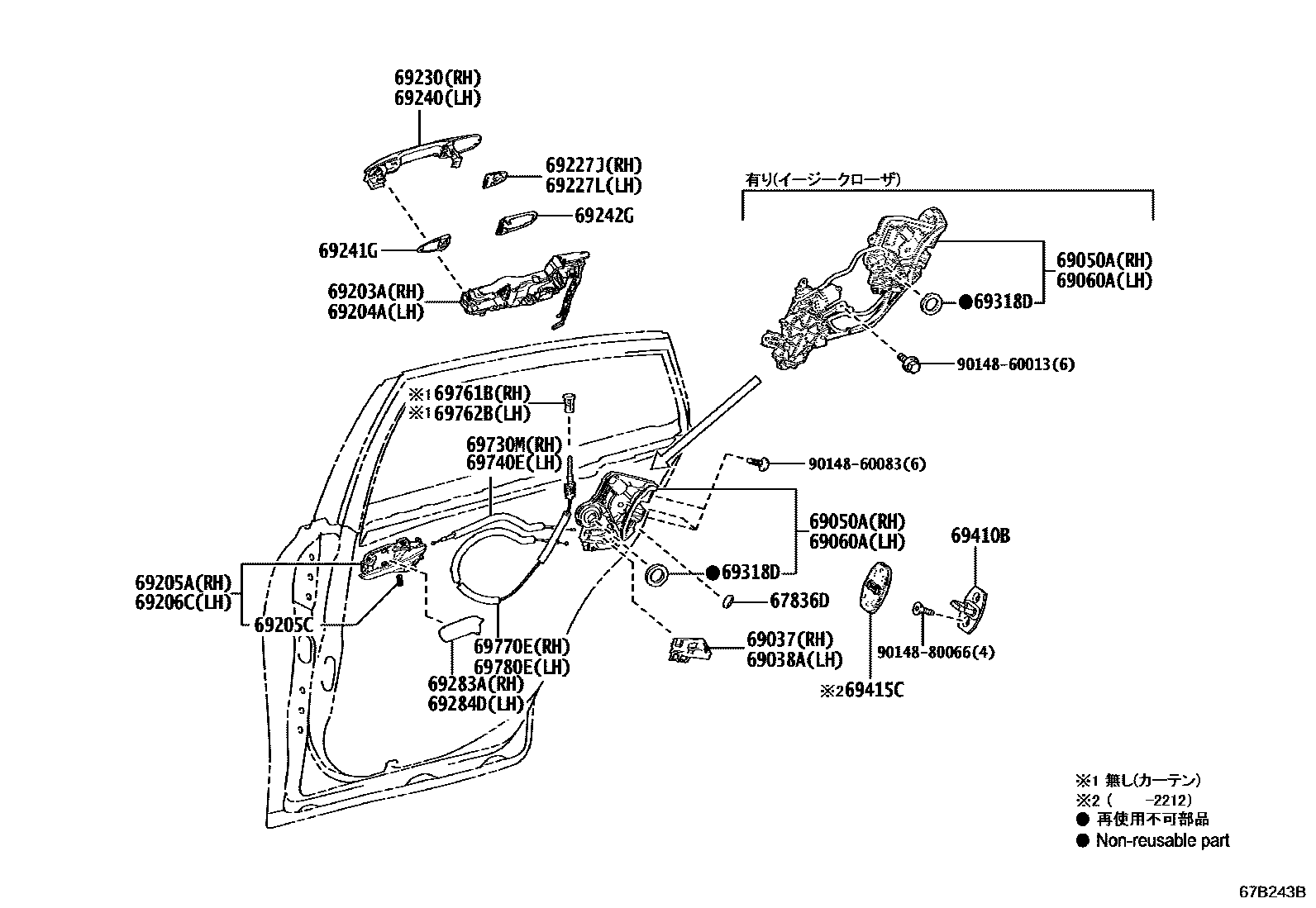

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
BLACK,202
PRECIOUS BLACK,219
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
FORCE BLUE MULTIPLE LAYER,8Y7
PRECIOUS METAL,1L5
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
BLACK,202
PRECIOUS BLACK,219
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
FORCE BLUE MULTIPLE LAYER,8Y7
PRECIOUS METAL,1L5
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
BLACK,202
PRECIOUS BLACK,219
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
FORCE BLUE MULTIPLE LAYER,8Y7
PRECIOUS METAL,1L5
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
BLACK,202
PRECIOUS BLACK,219
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
FORCE BLUE MULTIPLE LAYER,8Y7
PRECIOUS METAL,1L5
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH
BLACK,TRIM0#,2#
69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH
BLACK,TRIM0#,2#
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014860013
main90148-60013
9014860083
main90148-60083
9014880066
main90148-80066
30 parts on this diagram · 1 diagram in section
