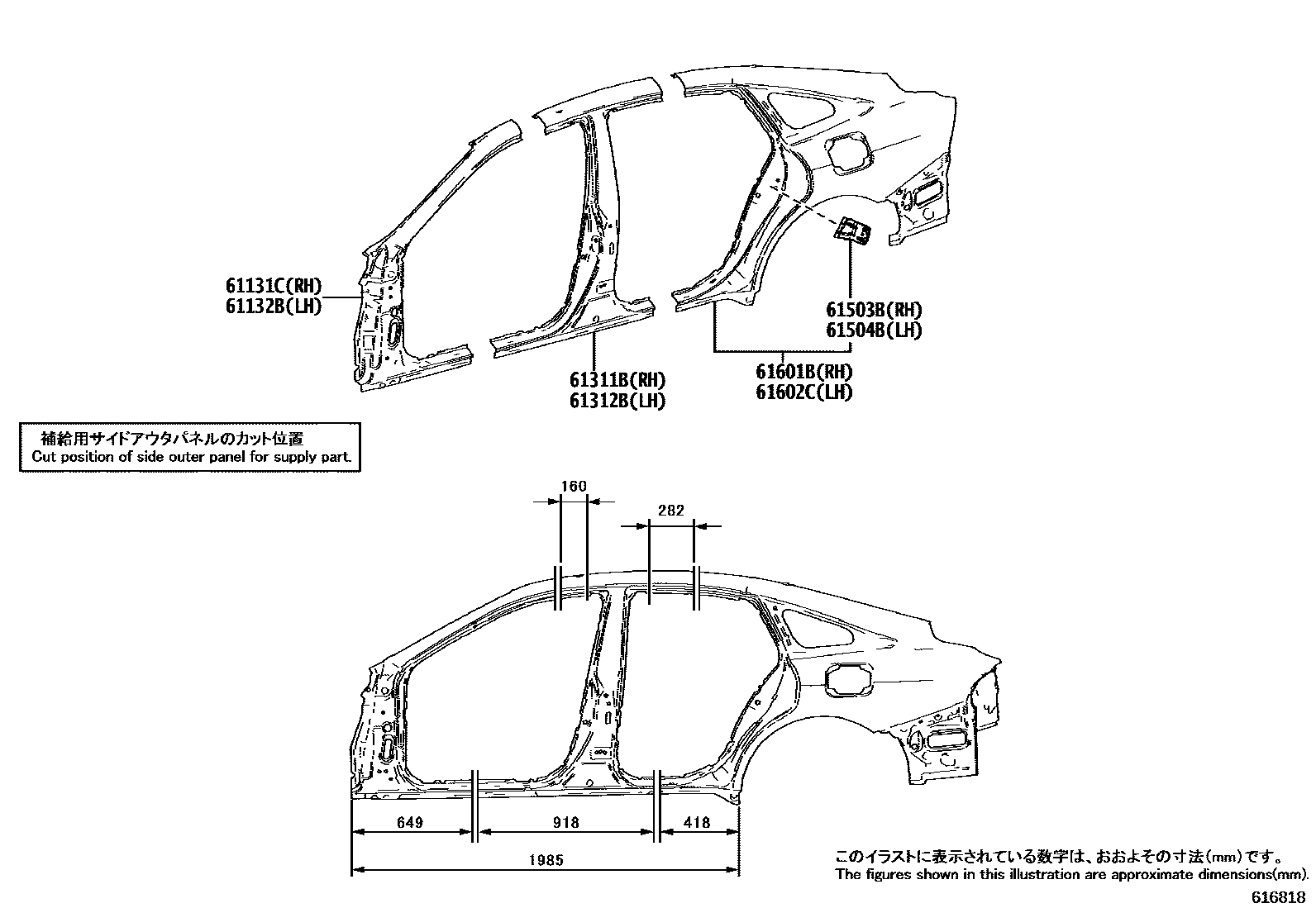

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-62020iJPD20202011-202411

61132BPILLAR, FRONT BODY, OUTER LH

main61132-62020iJPD20202011-202411

61311BPILLAR, CENTER BODY, OUTER RH

main61311-62020iJPD20202011-202411

61312BPILLAR, CENTER BODY, OUTER LH

main61312-62020iJPD20202011-202411

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-62020iJPD20202011-202411

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-62020iJPD20202011-202411

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-62010iJPD20202011-202411

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-62010iJPD20202011-202411

8 parts on this diagram · 3 diagrams in section
