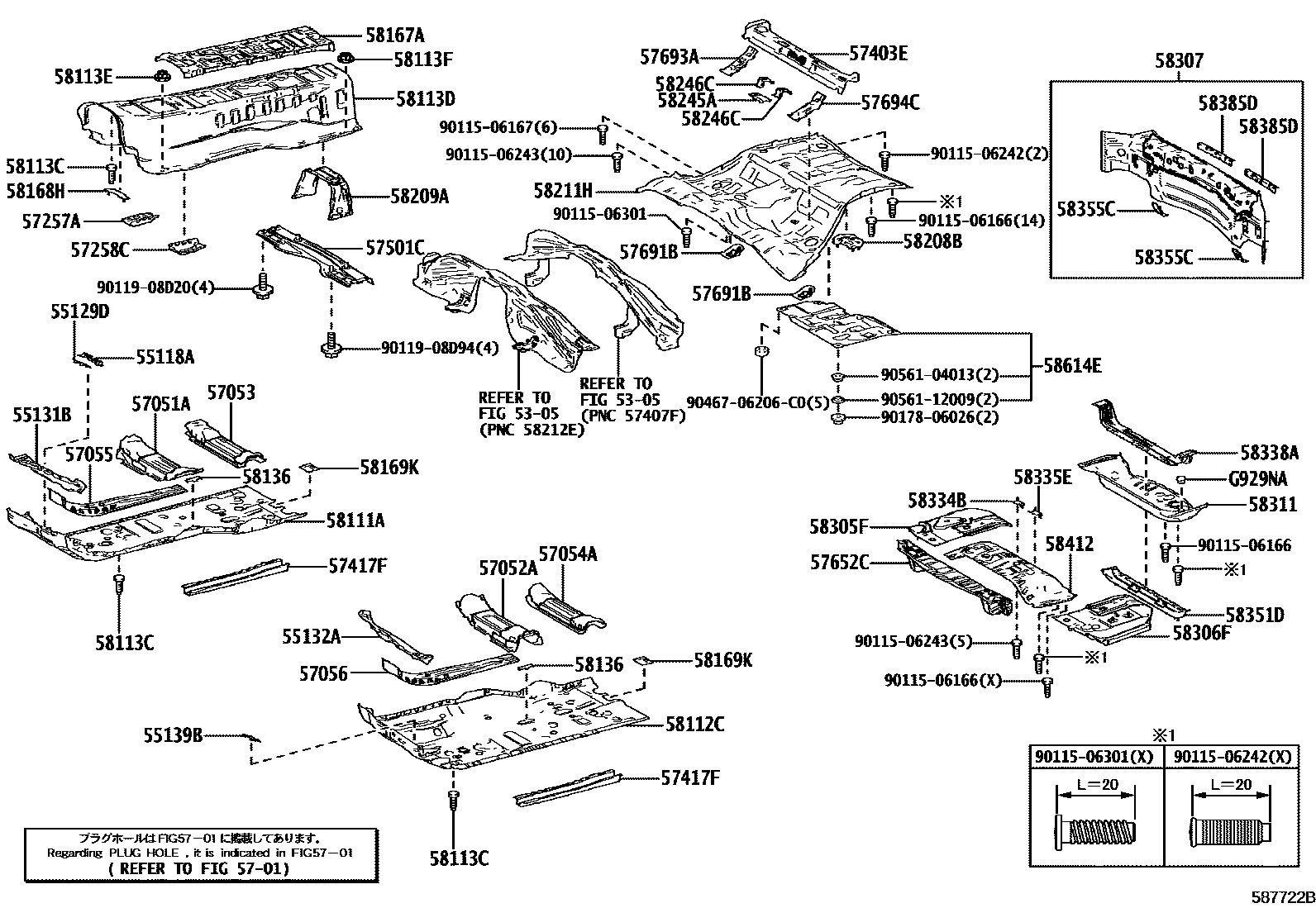

FLOOR PAN & LOWER BACK PANEL
5305
55118AEXTENSION, DASH PANEL, RH
55129DCOVER, DASH PANEL HOLE, RH
55131BREINFORCEMENT, TOE BOARD, RH
55132AREINFORCEMENT, TOE BOARD, LH
55139BCOVER, DASH PANEL HOLE, LH
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5
57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
57652CMEMBER, REAR FLOOR CROSS, NO.1
57691BBRACKET, FUEL TANK MOUNTING, FRONT CENTER
57693AREINFORCEMENT, FUEL TANK MOUNTING BRACKET, RH
57694CREINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)
58113DPANEL, FRONT FLOOR SIDE, NO.1 RH
58113ENUT, WELD(FOR FRONT FLOOR PANEL, CENTER)
58113FNUT, WELD(FOR FRONT FLOOR PANEL, CENTER)
58136COVER, FRONT FLOOR HOLE
58167ACOVER, FRONT FLOOR, CENTER
58168HPROTECTOR, FLOOR WIRE
58169KPATCH, FRONT FLOOR, REAR
58208BBRACKET, CENTER FLOOR HEAT INSULATOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58245ABRACKET, REAR SEAT HINGE, CENTER NO.1
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58334BPLATE, REAR FLOOR CROSSMEMBER, CENTER RH
58335EPLATE, REAR FLOOR CROSSMEMBER, CENTER LH
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58355CBRACKET, REAR BUMPER ARM
58385DBRACKET, REAR BUMPER COVER
58412PANEL, REAR FLOOR, FRONT
58614ESHEET, CENTER FLOOR SILENCER
G929NAPLUG, BATTERY DRAIN
9011506166
main90115-06166
9011506167
main90115-06167
9011506242
main90115-06242
9011506243
main90115-06243
9011506301
main90115-06301
9011908D20
main90119-08D20
9011908D94
main90119-08D94
9017806026
main90178-06026
9046706206C0
main90467-06206C0
9056104013
main90561-04013
9056112009
main90561-12009
61 parts on this diagram · 1 diagram in section
