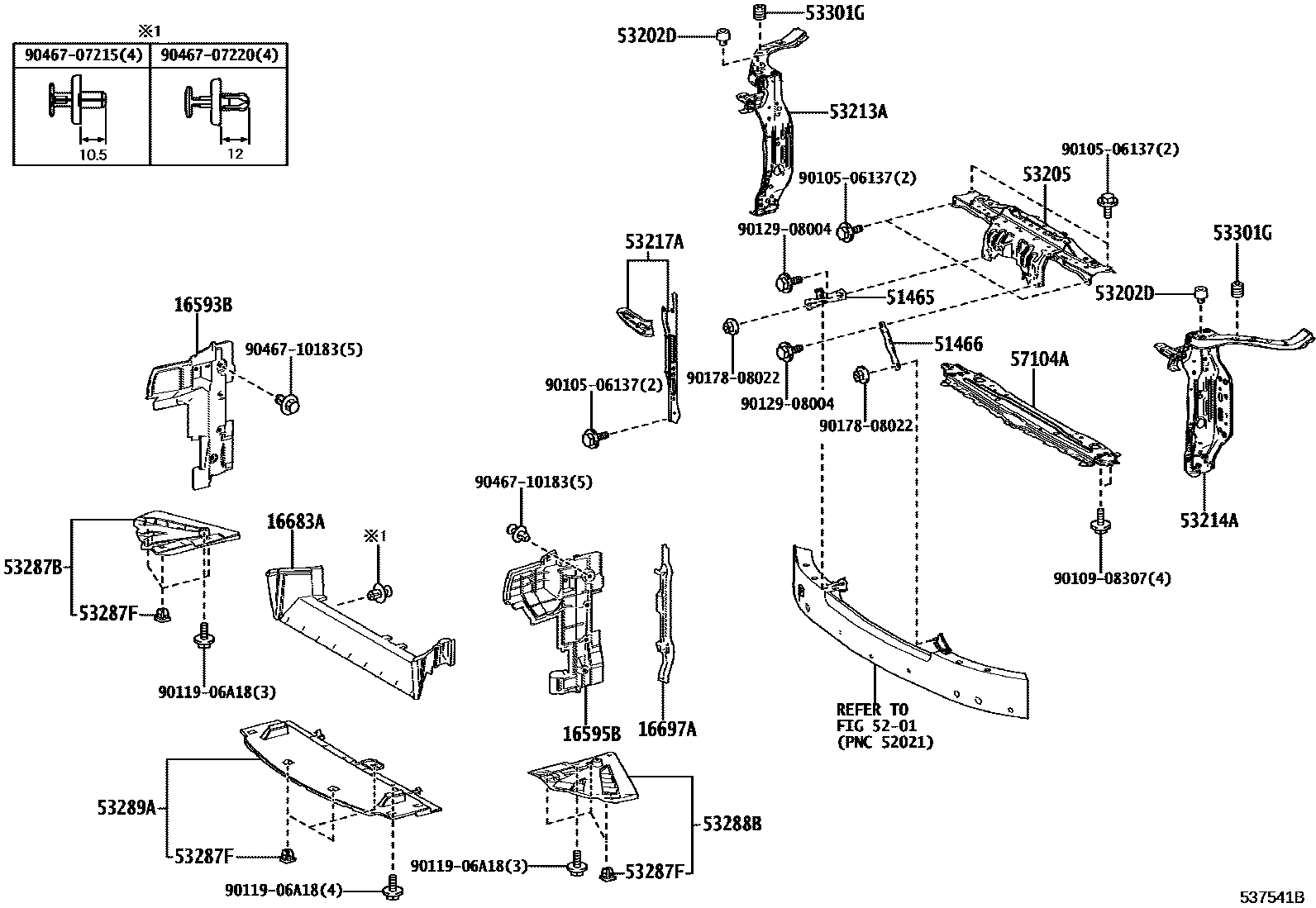

FRONT FENDER APRON & DASH PANEL

0001 1�������&����������� 0002 1���������� 0003 1���������

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-77020i3KM..JPD20202011-202411

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-77020i3KM..JPD20202011-202411

16683APLATE, RADIATOR LOWER AIR GUIDE

main16683-77020i3KM..JPD20202011-202411

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-77010i3KM..JPD20202011-202411

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51503-30040iJPD20202011-202411

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51465-30010iJPD20202011-202110

sub51503-30040

main51503-30040iJPD20202110-202411

5201

53202DCUSHION, RADIATOR SUPPORT

main90541-09125iJPD20202011-202411

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-62020iJPD20202011-202411

53213ASUPPORT, RADIATOR, UPPER RH

main53202-62900iJPD20202011-202411

53214ASUPPORT, RADIATOR, UPPER LH

main53203-62900iJPD20202011-202411

53217ABRACE, HOOD LOCK SUPPORT

main53217-62900iJPD20202011-202411

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-62010iJPD20202011-202411

53287FGROMMET, NO.1

main90189-06237iJPD20202011-202411

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-62010iJPD20202011-202411

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-62010iJPD20202011-202411

53301GCUSHION, HOOD BUMPER

main90541-15034iJPD20202011-202411

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-11010iJPD20202011-202411

9010506137

main90105-06137

9010908307

main90109-08307

9011906A18

main90119-06A18

9012908004

main90129-08004

9017808022

main90178-08022

9046707215

main90467-07215

9046707220

main90467-07220

9046710183

main90467-10183

26 parts on this diagram · 3 diagrams in section
