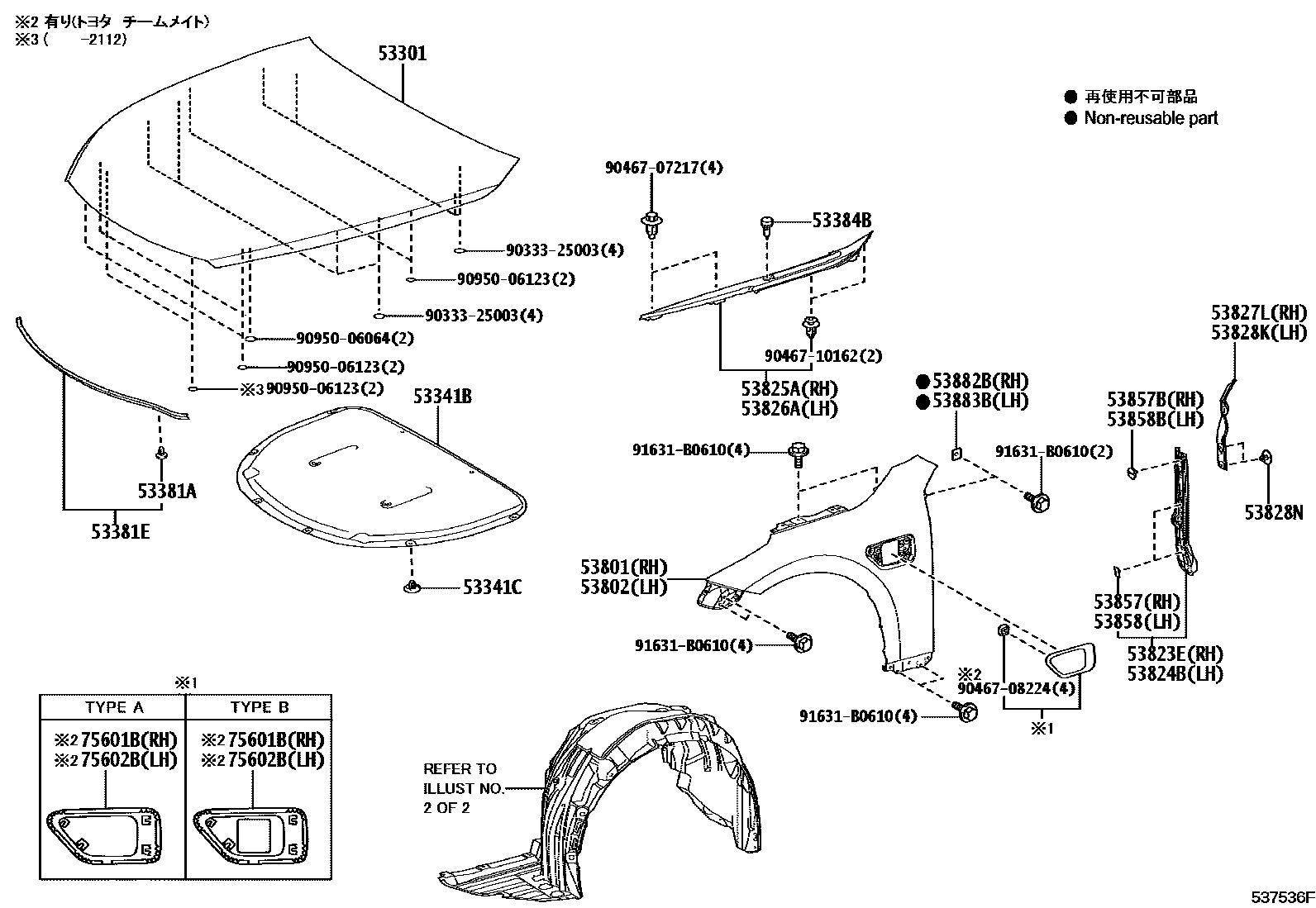

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53381ESEAL, HOOD TO RADIATOR SUPPORT
53384BCUSHION, HOOD, CENTER
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
BLACK
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
75601BMOULDING SUB-ASSY, FRONT FENDER, RH
75602BMOULDING SUB-ASSY, FRONT FENDER, LH
9033325003
9046707217
9046708224
9046710162
9095006064
9095006123
91631B0610
30 parts on this diagram · 2 diagrams in section
