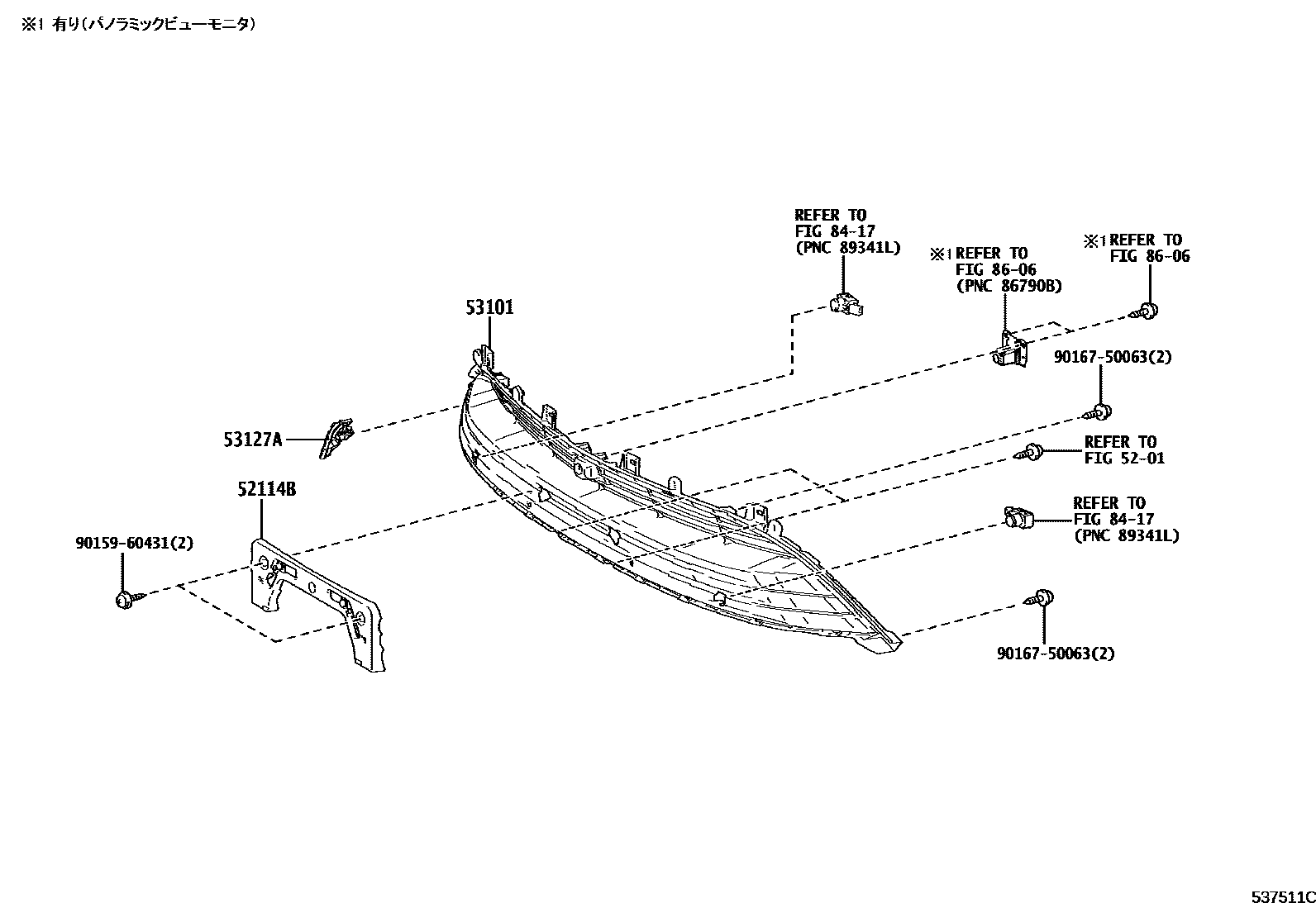

RADIATOR GRILLE

5201

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-62050iJPD20202011-202411

53101GRILLE SUB-ASSY, RADIATOR

main53101-62060iJPD20..G202011-202411

main53101-62070iJPD20..G202011-202212

main53101-62070iJPD20..G202011-202212

main53101-62070iJPD20..G202011-202212

main53101-62150iJPD20..G202212-202411

main53101-62150iJPD20..G202212-202312

main53101-62150iJPD20..G202212-202312

main53101-62150iJPD20..Z202312-202411

main53101-62150iJPD20..Z202312-202411

main53101-62220iJPD20..Z202412

53127AGRILLE, RADIATOR, LOWER RH

main53127-62030iJPD20202011-202411

main53127-62080iJPD20..Z202412

8417

8606

9015960431

main90159-60431

9016750063

main90167-50063

8 parts on this diagram · 1 diagram in section
