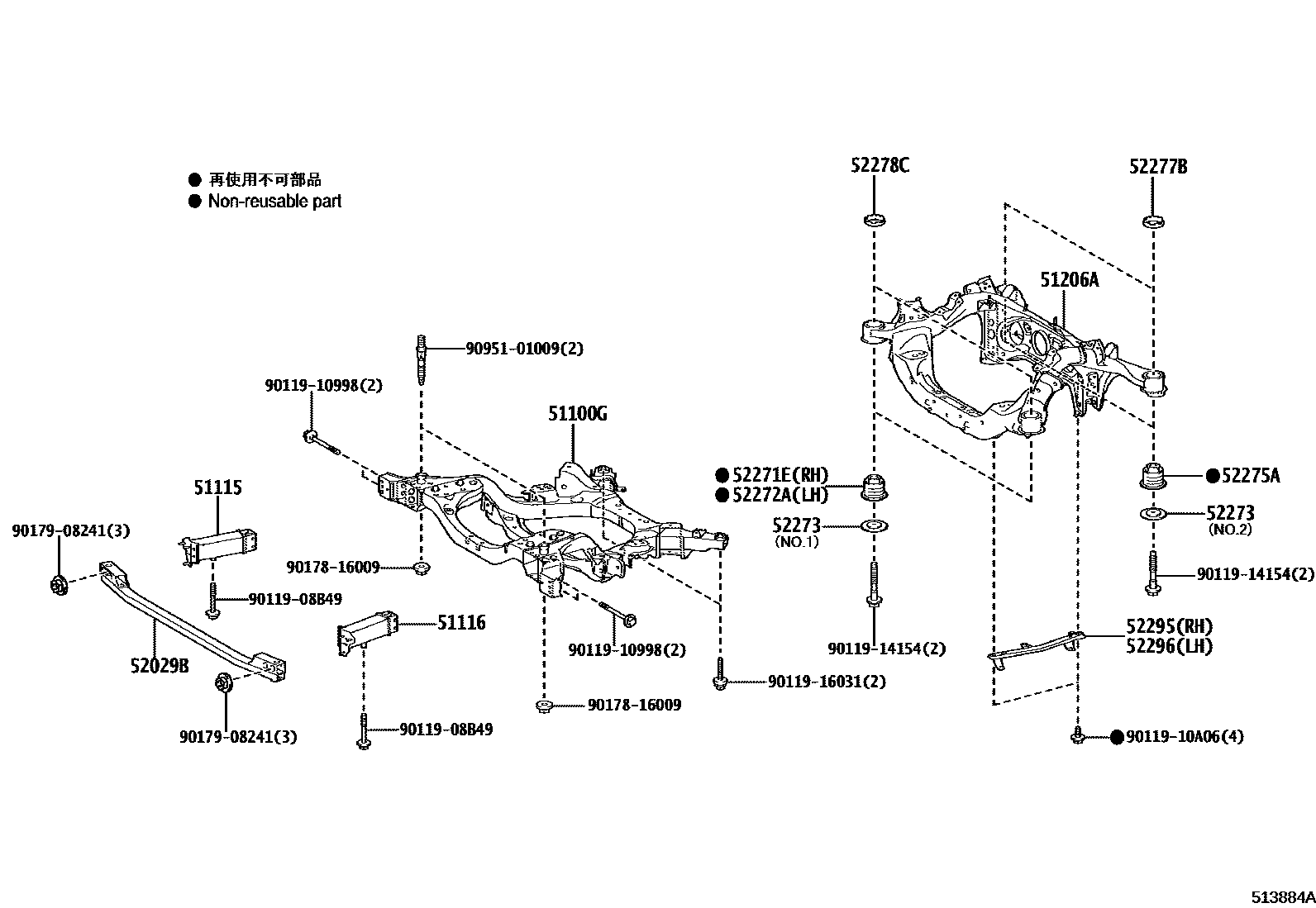

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0002 1������������� 0003 1�����������(����) 0004 1�����������(����&��)

51100GFRAME ASSY, FRONT

main51100-62011iJPD20202011-202411

51115RAIL, FRAME SIDE, REAR RH

main51107-62020iJPD20202011-202411

51116RAIL, FRAME SIDE, REAR LH

main51108-62020iJPD20202011-202411

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-62020iJPD20202011-202411

52029BREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-11010iJPD20202110-202411

main52029-62010iJPD20202011-202110

sub52029-11010

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52272-62010iJPD20202011-202411

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-62010iJPD20202011-202411

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52274-30020iJPD20202402-202411

main52274-30030iJPD20202402-202411

main52274-50020iJPD20202011-202302

main52274-62010iJPD20202011-202302

sub52274-62040

main52274-62030iJPD20202303-202401

main52274-62040iJPD20202303-202401

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-11010iJPD20202011-202411

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-11010iJPD20202011-202411

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-50030iJPD20202011-202301

main52278-62010iJPD20202302-202306

sub52278-62020

main52278-62020iJPD20202307-202411

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-62010iJPD20202011-202411

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-62010iJPD20202011-202411

9011908B49

main90119-08B49

9011910998

main90119-10998

9011910A06

main90119-10A06

9011914154

main90119-14154

9011916031

main90119-16031

9017816009

main90178-16009

9017908241

main90179-08241

9095101009

main90951-01009

21 parts on this diagram · 4 diagrams in section
