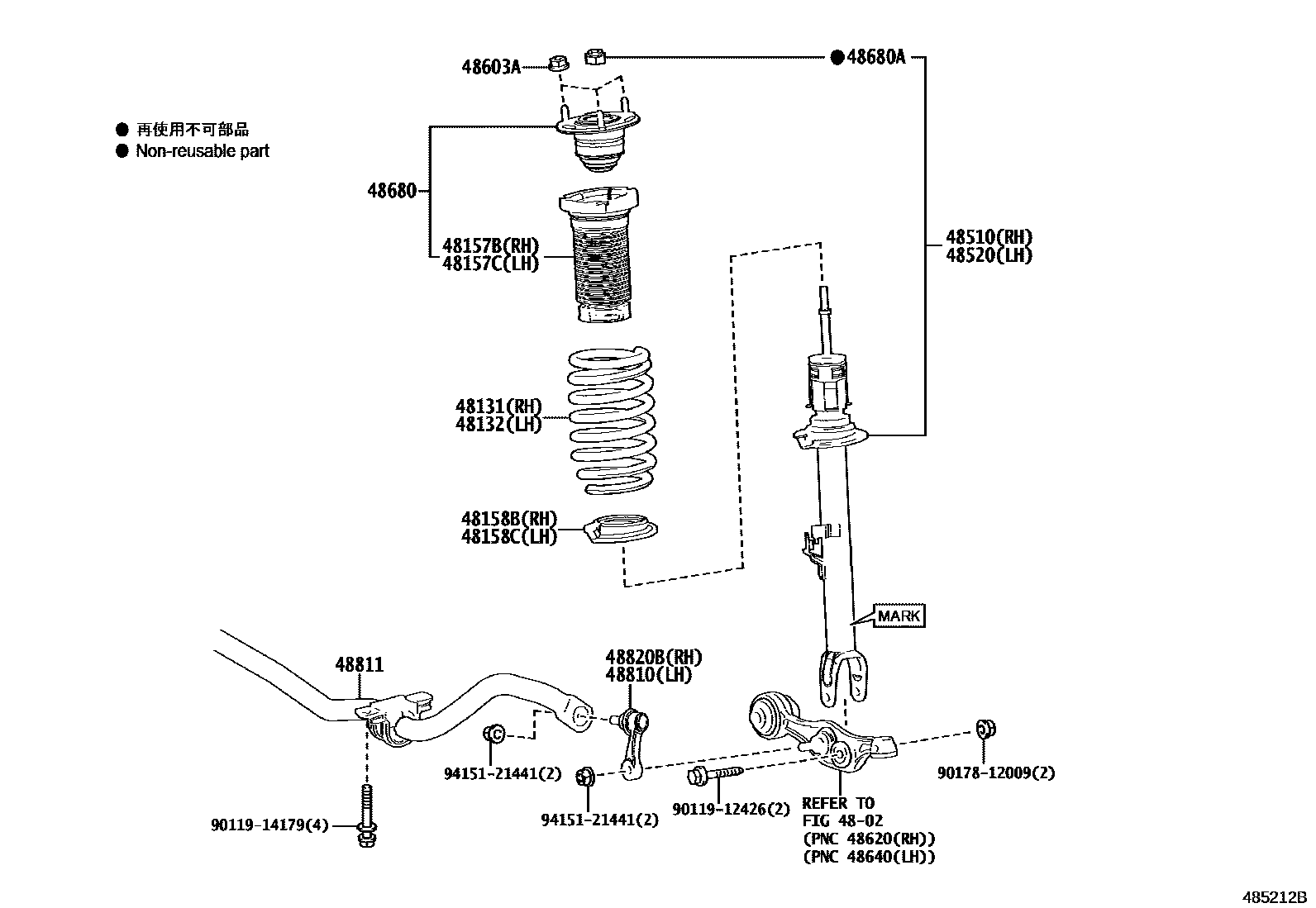

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-62020iJPD20202011-202411

48132SPRING, FRONT COIL, LH

main48131-62020iJPD20202011-202411

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-50070iJPD20202011-202411

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-50080iJPD20202011-202411

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iJPD20202011-202411

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iJPD20202011-202411

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69755iJPD20202011-202411

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-69235iJPD20202011-202411

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10033iJPD20202011-202304

main90178-10039iJPD20202305-202411

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-62010iJPD20202011-202411

main48680-62020iJPD20202011-202411

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-12002iJPD20202011-202411

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50040iJPD20202011-202411

48811BAR, STABILIZER, FRONT

main48804-62010iJPD20202011-202411

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50050iJPD20202011-202411

9011912426

main90119-12426

9011914179

main90119-14179

9017812009

main90178-12009

9415121441

main94151-21441

19 parts on this diagram · 1 diagram in section
