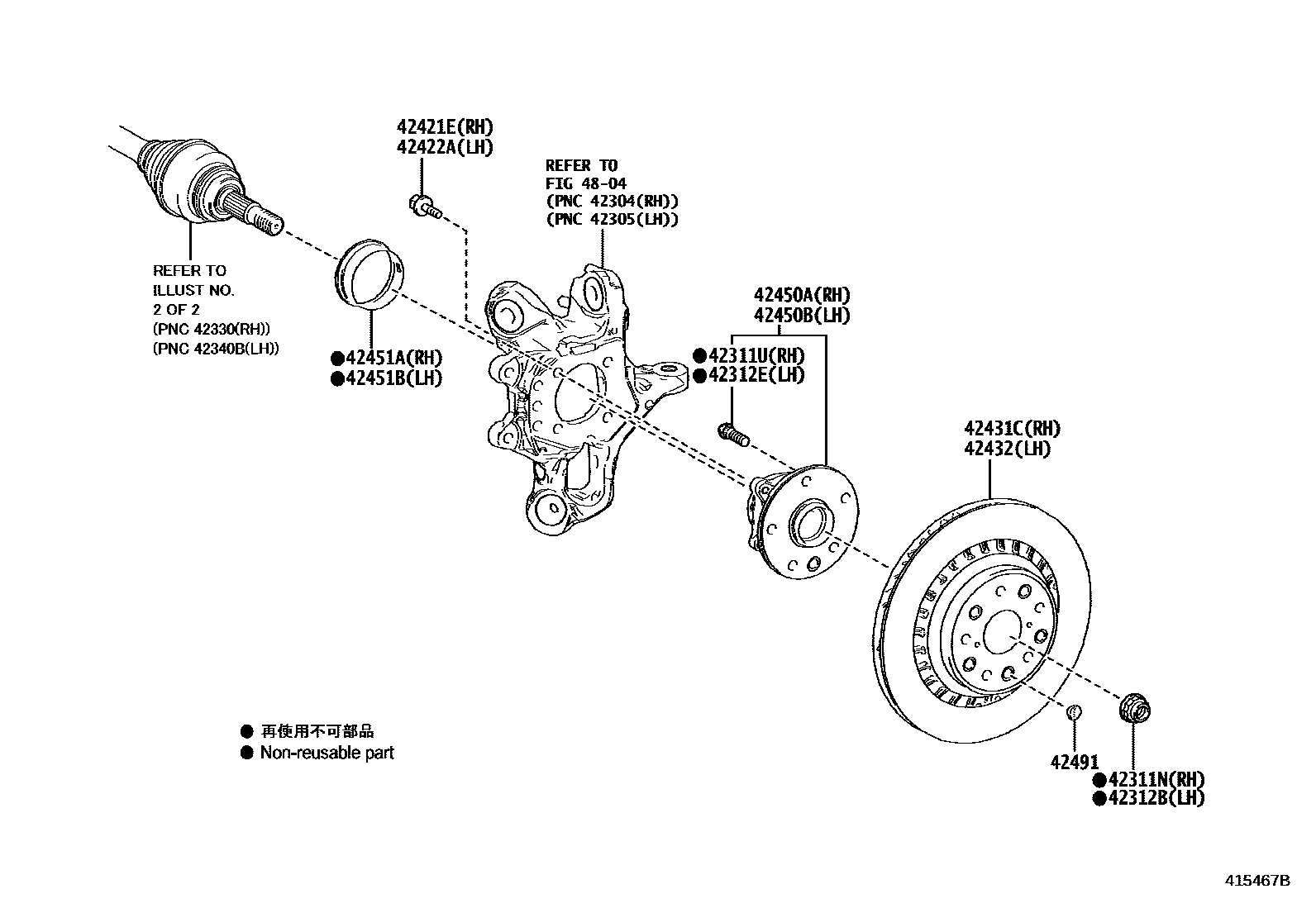

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iJPD20¥260202011-202411

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02083iJPD20¥280202011-202411

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iJPD20¥260202011-202411

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02083iJPD20¥280202011-202411

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12364iJPD20¥250202011-202411

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12364iJPD20¥250202011-202411

42431CDISC, REAR RH

main42431-50110iJPD20¥10,700202011-202308

sub42431-50120¥9,800

main42431-50120iJPD20¥9,800202309-202411

42432DISC, REAR LH

main42432-50020iJPD20¥10,700202011-202308

sub42432-50030¥9,800

main42432-50030iJPD20¥9,800202309-202411

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-50042iJPD20¥11,900202011-202411

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-50042iJPD20¥11,900202011-202411

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-50030iJPD20¥790202011-202411

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-50030iJPD20¥790202011-202411

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iJPD20¥60202011-202411

4804

14 parts on this diagram · 2 diagrams in section
