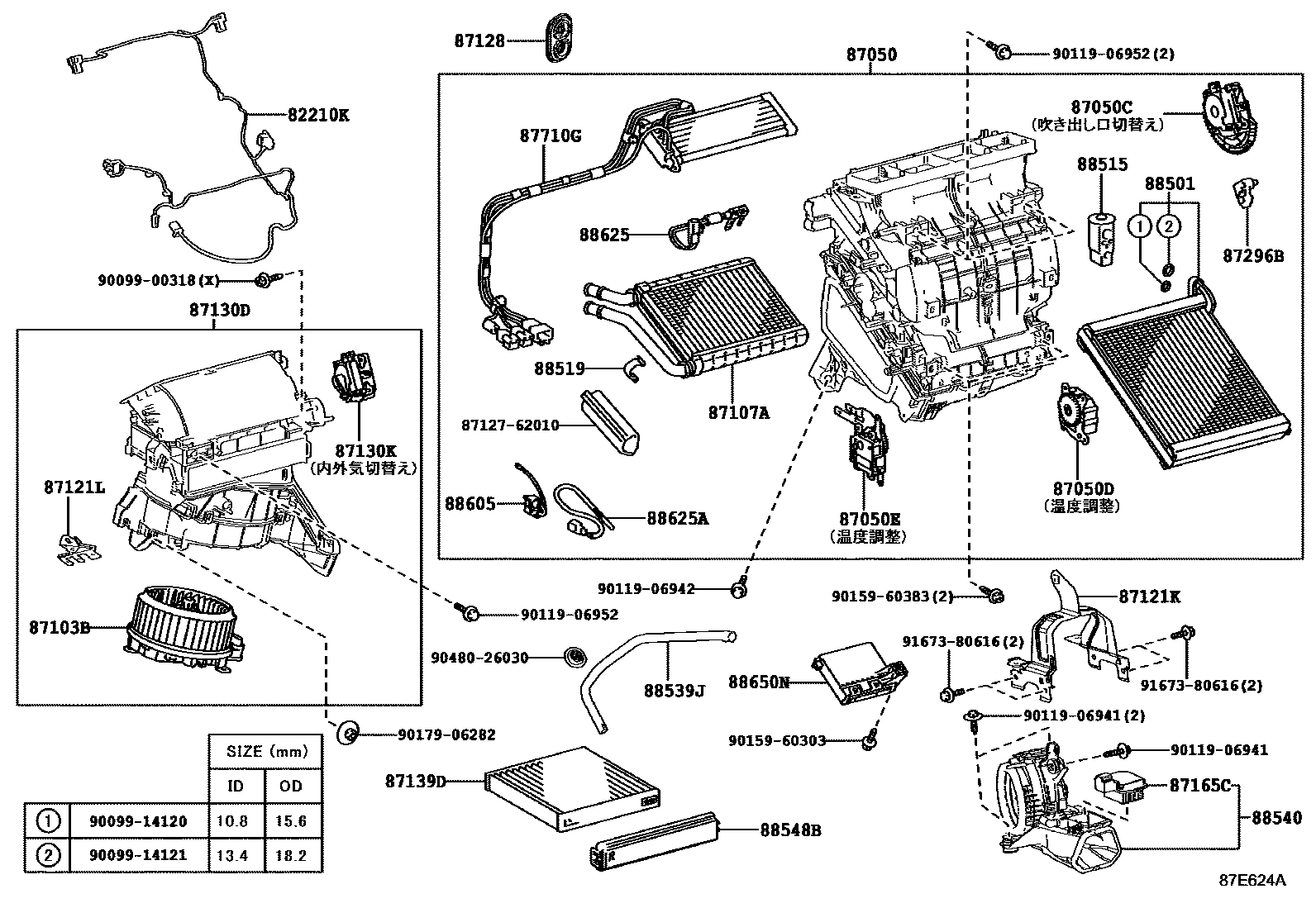

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12040iJPD10201412-202005

87050RADIATOR ASSY, AIR CONDITIONER

main87050-62010iJPD10201412-202005

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-42190iJPD10201412-202005

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-42210iJPD10201412-202005

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-62010iJPD10201412-202005

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-76020iJPD10201412-202005

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-62020iJPD10201412-202005

87121KBRACKET, HEATER

main87121-62020iJPD10201412-202005

87121LBRACKET, HEATER

main87121-62040iJPD10201412-202005

87128GROMMET, HEATER

main87128-76010iJPD10201412-202005

87130DBLOWER ASSY

main87130-62020iJPD10201412-202005

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-42150iJPD10201412-202005

87139DELEMENT, AIR REFINER

main87139-50100iJPD10201412-202005

main87139-52040iJPD10201412-202005

87165CCONTROL, BLOWER MOTOR

main87165-28020iJPD10201412-202005

87296BLEVER, HEATER AIR DAMPER CONTROL

main87296-42010iJPD10201412-202005

87710GQUICK HEATER ASSY

main87710-42010iJPD10201412-202005

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-75010iJPD10201412-202005

88515VALVE, COOLER EXPANSION

main88515-26070iJPD10201412-202005

88519HOLDER, REMOTE BULB

main88519-22030iJPD10201412-202005

88539JHOSE, DRAIN COOLER

main88539-12210iJPD10201412-202005

88540BLOWER ASSY, COOLER

main88540-75010iJPD10201412-202005

88548BCASE, AIR FILTER

main88548-42010iJPD10201412-202005

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-62010iJPD10201412-202005

88625THERMISTOR, COOLER, NO.1

main88625-26090iJPD10201412-202005

88625ATHERMISTOR, COOLER NO.2

main88620-62010iJPD10201412-202005

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-62020iJPD10201412-201505

sub88650-62050

main88650-62030iJPD10201412-201505

sub88650-62060

main88650-62050iJPD10201506-201510

sub88650-62051

main88650-62051iJPD10201511-201605

sub88650-62052

main88650-62052iJPD10201606-201808

sub88650-62053

main88650-62053iJPD10201809-202005

main88650-62060iJPD10201506-201510

sub88650-62061

main88650-62061iJPD10201511-201605

sub88650-62062

main88650-62062iJPD10201606-201808

sub88650-62063

main88650-62063iJPD10201809-202005

8712762010PACKING, HEATER AIR DAMPER

main87127-62010

9009900318

main90099-00318

9009914120

main90099-14120

9009914121

main90099-14121

9011906941

main90119-06941

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

9048026030

main90480-26030

9167380616

main91673-80616

38 parts on this diagram · 1 diagram in section
