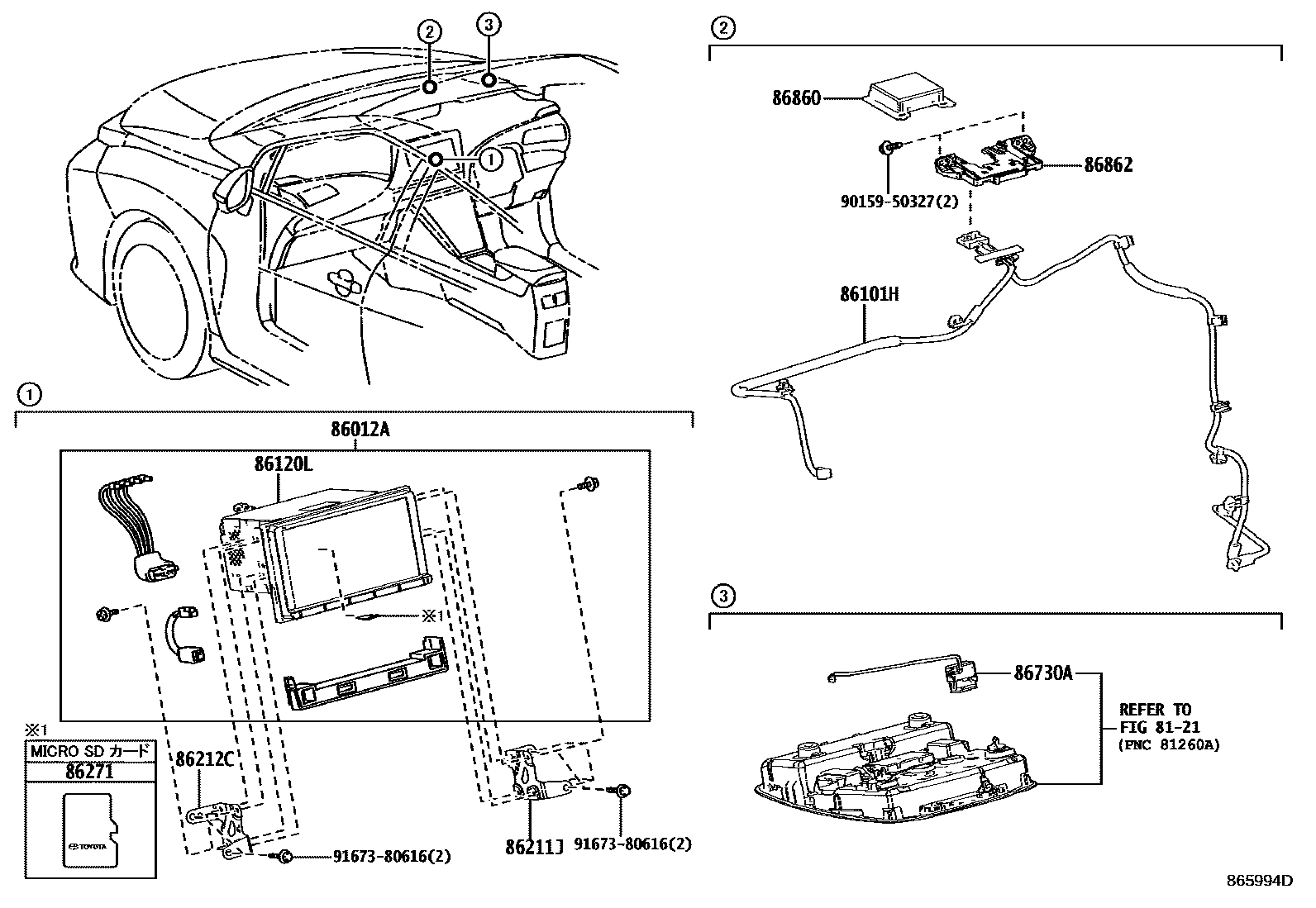

NAVIGATION & FRONT MONITOR DISPLAY

8121

86012APARTS SET, RADIO SETTING

main86011-62010iJPD10201412-202005

86101HCORD SUB-ASSY, ANTENNA

main86101-62170iJPD10201412-202005

86120LRECEIVER ASSY, NAVIGATION

main86100-62030iJPD10201412-202005

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-62020iJPD10201412-202005

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-62020iJPD10201412-202005

86271DISC, DISC PLAYER

main86271-62010iJPD10201412-201505

sub86271-62020

main86271-62011iJPD10201506-201511

sub86271-62012

main86271-62012iJPD10201512-201603

sub86271-62013

main86271-62013iJPD10201604-201611

sub86271-62014

main86271-62014iJPD10201612-201704

sub86271-62015

main86271-62015iJPD10201705-201710

sub86271-62016

main86271-62016iJPD10201711-201806

sub86271-62017

main86271-62017iJPD10201806-201810

sub86271-62020

main86271-62018iJPD10201811-201905

sub86271-62019

main86271-62019iJPD10201906-201911

sub86271-62020

main86271-62020iJPD10201911-202005

86730AMICROPHONE ASSY, TELEPHONE

main86730-62030iJPD10201412-202005

86860ANTENNA ASSY, NAVIGATION

main86880-78010iJPD10201412-202005

86862BRACKET, NAVIGATION ANTENNA

main86862-62010iJPD10201412-202005

9015950327

main90159-50327

9167380616

main91673-80616

12 parts on this diagram · 1 diagram in section
