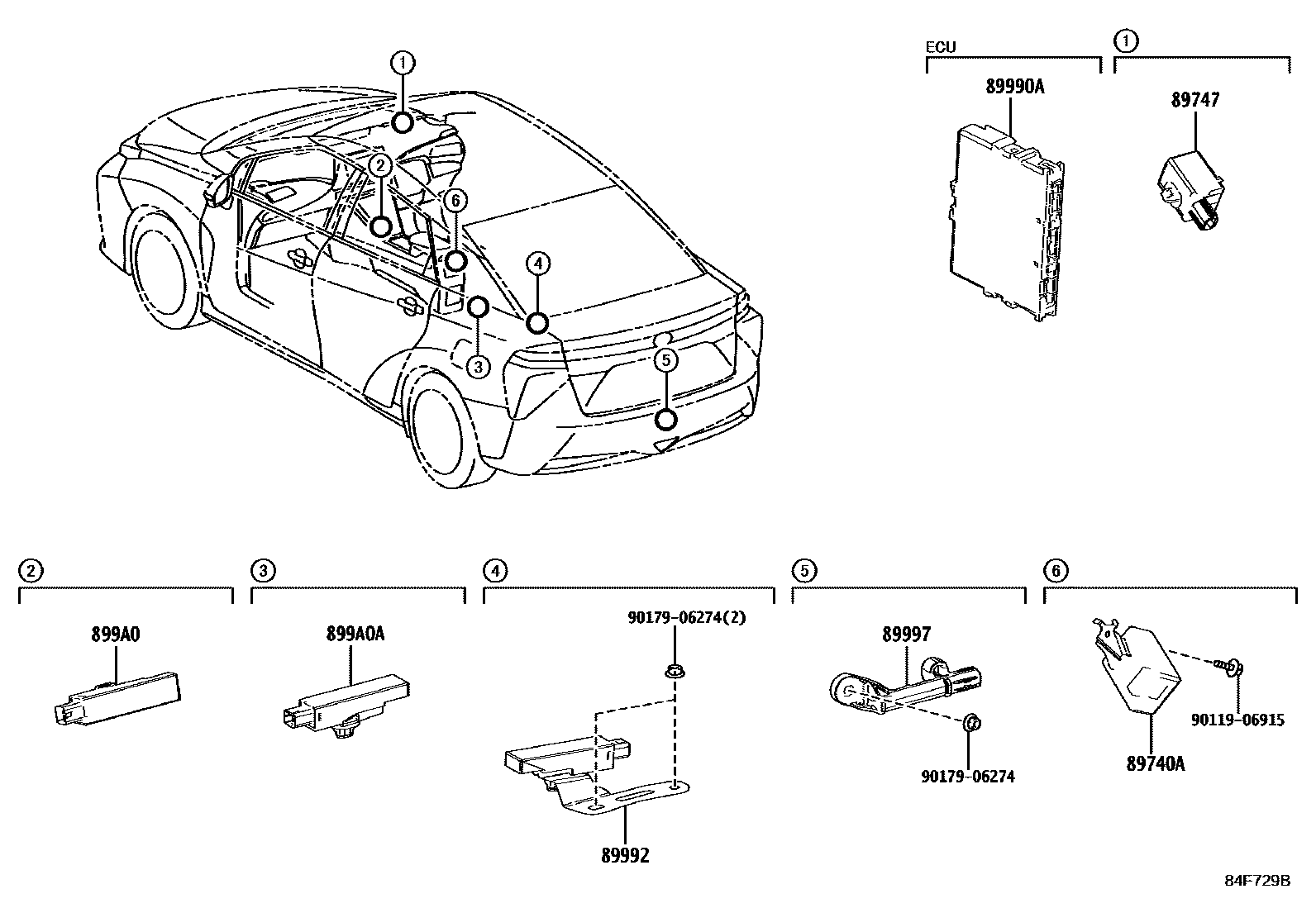

WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-62010iJPD10201412-202005

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iJPD10201412-202005

89990ACOMPUTER ASSY, SMART KEY

main89990-62010iJPD10201412-201810

sub89990-62011

main89990-62011iJPD10201811-202005

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30070iJPD10201412-202005

89997ANTENNA, ELECTRICAL KEY

main89997-30100iJPD10201412-202005

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iJPD10201412-202005

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60010iJPD10201412-202005

9011906915

main90119-06915

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
