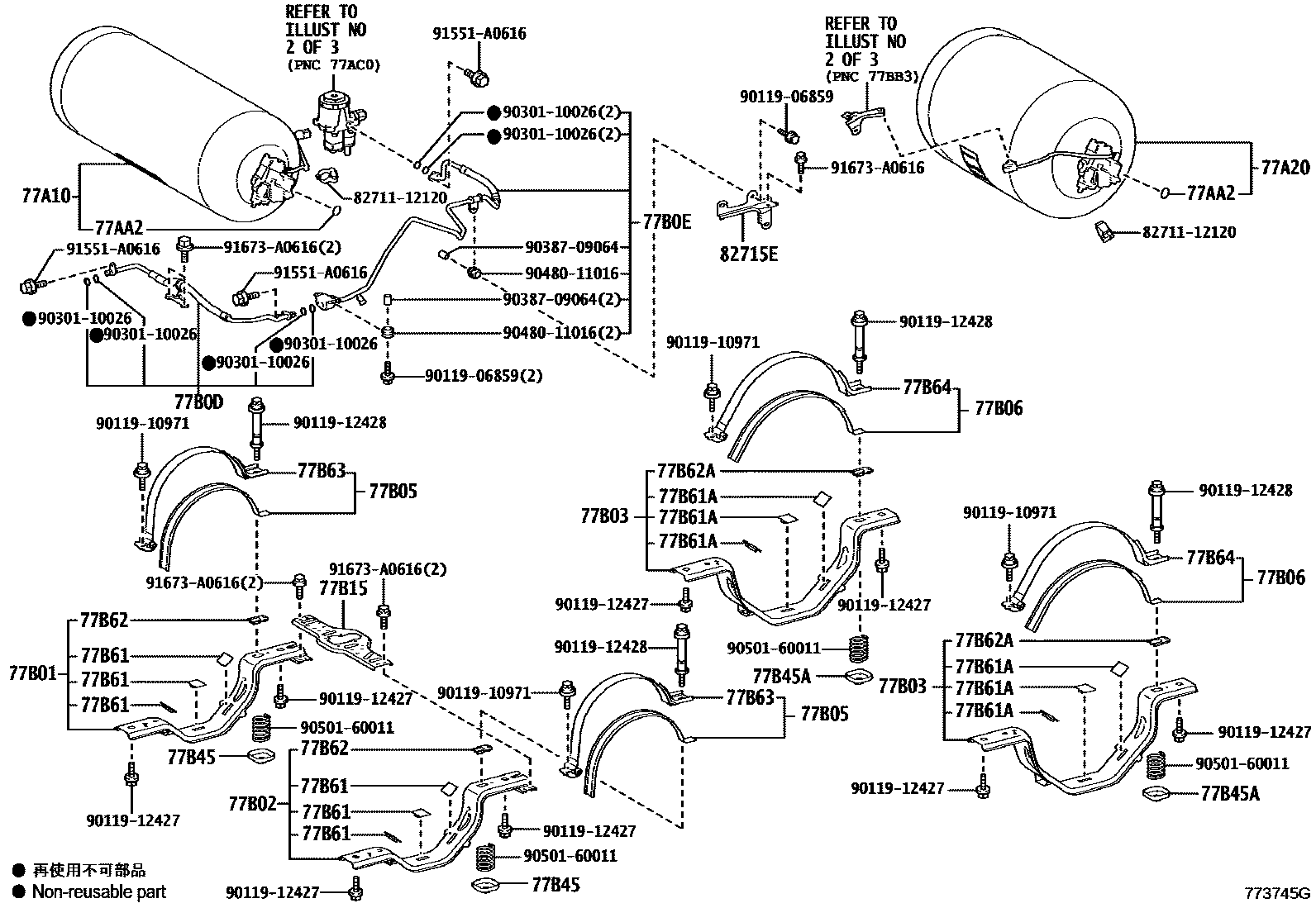

FUEL TANK & TUBE
77A10TANK ASSY, HYDROGEN, NO.1
sub77A10-62150
77A20TANK ASSY, HYDROGEN, NO.2
sub77A20-62140
77AA2COVER, HYDROGEN TANK VALVE
77B01FRAME SUB-ASSY, HYDROGEN TANK, FRONT RH
77B02FRAME SUB-ASSY, HYDROGEN TANK, FRONT LH
77B03FRAME SUB-ASSY, HYDROGEN TANK, REAR
77B05BAND SUB-ASSY, HYDROGEN TANK, FRONT
77B06BAND SUB-ASSY, HYDROGEN TANK, REAR
77B0DTUBE SUB-ASSY, HYDROGEN SUPPLY, NO.1
77B0ETUBE SUB-ASSY, HYDROGEN SUPPLY, NO.2
77B15FRAME, HYDROGEN TANK, FRONT CENTER
77B45CUP, HYDROGEN TANK SPRING BOLT, FRONT
77B45ACUP, HYDROGEN TANK SPRING BOLT, REAR
77B61SEAT, HYDROGEN TANK FRAME, FRONT
77B61ASEAT, HYDROGEN TANK FRAME, REAR
77B62CUSHION, HYDROGEN TANK FRAME SPRING BLOT, FRONT
77B62ACUSHION, HYDROGEN TANK FRAME SPRING BLOT, REAR
77B63CUSHION, HYDROGEN TANK BAND, FRONT
77B64CUSHION, HYDROGEN TANK BAND, REAR
82715EBRACKET, WIRING HARNESS CLAMP
8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12120
9011906859
main90119-06859
9011910971
main90119-10971
9011912427
main90119-12427
9011912428
main90119-12428
9030110026
main90301-10026
9038709064
main90387-09064
9048011016
main90480-11016
9050160011
main90501-60011
91551A0616
main91551-A0616
91673A0616
main91673-A0616
31 parts on this diagram · 3 diagrams in section
