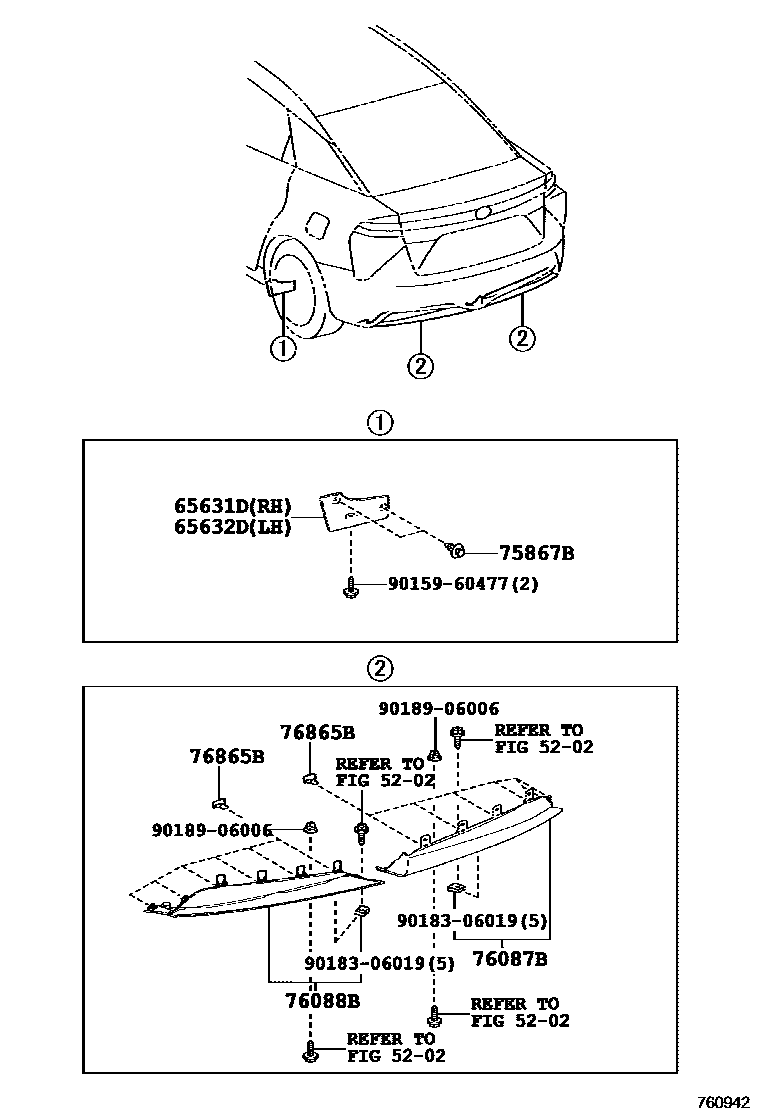

MUDGUARD & SPOILER

5202

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-62010iJPD10201412-202005

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-62010iJPD10201412-202005

75867BCLIP, ROCKER PANEL MOULDING

main75867-33050iJPD10201412-202005

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-62010iJPD10201412-202005

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-62010iJPD10201412-202005

76865BRETAINER, REAR SPOILER

main75392-35200iJPD10201412-202005

9015960477

main90159-60477

9018306019

main90183-06019

9018906006

main90189-06006

10 parts on this diagram · 1 diagram in section
