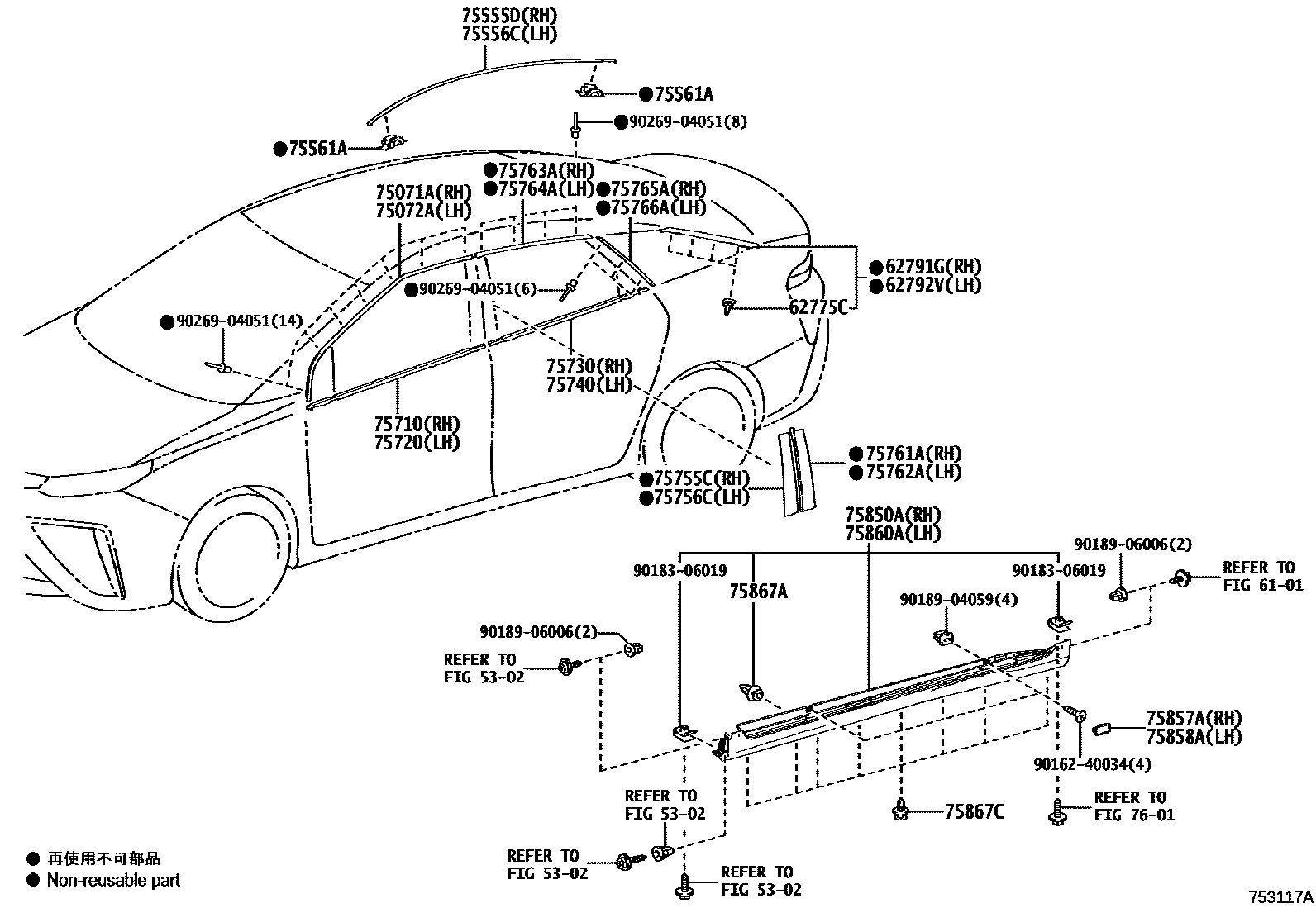

SIDE MOULDING
5302
6101
62775CCLIP, QUARTER WINDOW
62791GMOULDING, QUARTER WINDOW, UPPER RH
62792VMOULDING, QUARTER WINDOW, UPPER LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
WHITE PEARL CS.,2NL
PRECIOUS SILVER,2MR
PRECIOUS BLACK,2MS
DK. RED M.M.,2NM
DK.BLUE MC.,2MT
PURE BLUE ME.,2NV
75857ACOVER, ROCKER PANEL MOULDING, RH
WHITE PEARL CS.,2NL
PRECIOUS SILVER,2MR
PRECIOUS BLACK,2MS
DK. RED M.M.,2NM
DK.BLUE MC.,2MT
PURE BLUE ME.,2NV
75858ACOVER, ROCKER PANEL MOULDING, LH
WHITE PEARL CS.,2NL
PRECIOUS SILVER,2MR
PRECIOUS BLACK,2MS
DK. RED M.M.,2NM
DK.BLUE MC.,2MT
PURE BLUE ME.,2NV
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
WHITE PEARL CS.,2NL
PRECIOUS SILVER,2MR
PRECIOUS BLACK,2MS
DK. RED M.M.,2NM
DK.BLUE MC.,2MT
PURE BLUE ME.,2NV
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
7601
9016240034
main90162-40034
9018306019
main90183-06019
9018904059
main90189-04059
9018906006
main90189-06006
9026904051
main90269-04051
34 parts on this diagram · 1 diagram in section
