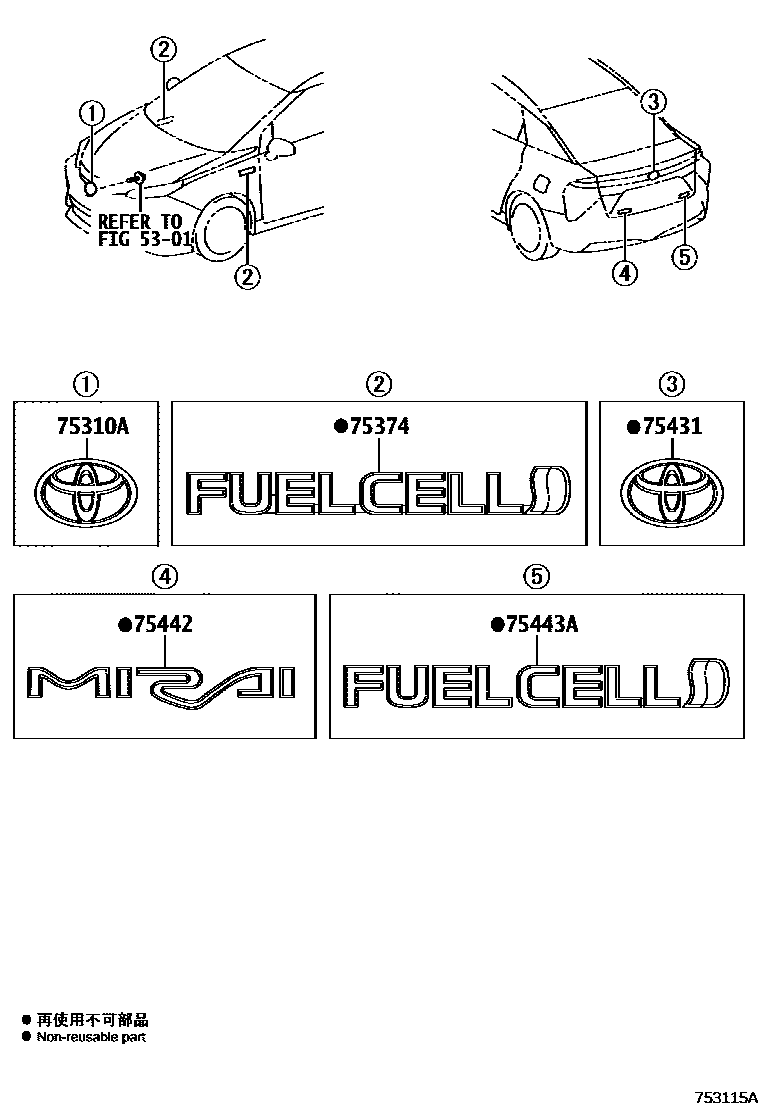

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-33140iJPD10201811-202005

main53141-47011iJPD10201708-201811

main53141-47012iJPD10201412-201707

sub53141-47011

75374EMBLEM, SIDE PANEL

main75374-62010iJPD10201412-202005

main75374-62020iJPD10201412-202005

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75403-48010iJPD10201412-202005

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-62010iJPD10201412-202005

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-62010iJPD10201412-202005

6 parts on this diagram · 1 diagram in section
