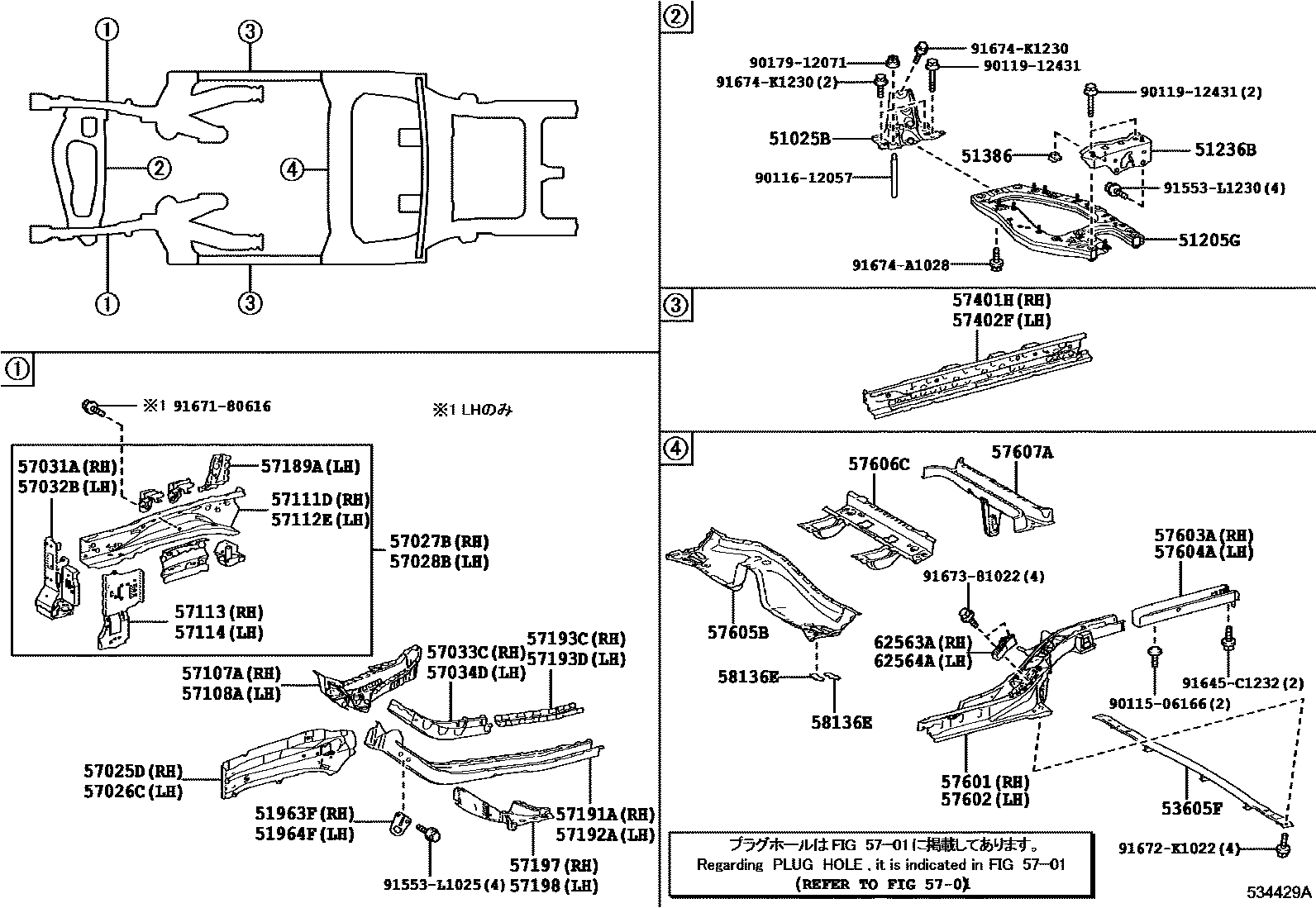

FLOOR SIDE MEMBER

51025BBRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-62010iJPD10201412-202005

51205GCROSSMEMBER SUB-ASSY, FRAME, CENTER

main51205-62010iJPD10201412-202005

51236BPLATE, FRAME CENTER CROSSMEMBER

main51236-62010iJPD10201412-202005

51386SUPPORT, FRONT FRAME ROD, OUTER LH

main51386-62010iJPD10201412-202005

51963FHOOK, TRANSPORT

main51963-12250iJPD10201412-202005

51964FHOOK, TRANSPORT, LH

main51964-12040iJPD10201412-202005

53605FBRACE SUB-ASSY, REAR SUSPENSION

main53605-62010iJPD10201412-202005

5701

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-12010iJPD10201412-202005

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-12020iJPD10201412-202005

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12010iJPD10201412-202005

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-12020iJPD10201412-202005

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010iJPD10201412-202005

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010iJPD10201412-202005

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-62010iJPD10201412-202005

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-62010iJPD10201412-202005

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-62010iJPD10201412-202005

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-62010iJPD10201412-202005

57111DMEMBER, FRONT SIDE, INNER RH

main57111-12230iJPD10201412-202005

57112EMEMBER, FRONT SIDE, INNER LH

main57112-12190iJPD10201412-202005

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220iJPD10201412-202005

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12191iJPD10201412-202005

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-12010iJPD10201412-202005

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-62010iJPD10201412-202005

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-62010iJPD10201412-202005

57193CPLATE, FRONT SIDE MEMBER, NO.8 RH

main57193-62010iJPD10201412-202005

57193DPLATE, FRONT SIDE MEMBER, NO.8 LH

main57194-62010iJPD10201412-202005

57197BOX, TORQUE, FRONT RH

main57197-62010iJPD10201412-202005

57198BOX, TORQUE, FRONT LH

main57198-62010iJPD10201412-202005

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-62010iJPD10201412-202005

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-62010iJPD10201412-202005

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-62010iJPD10201412-202005

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-62010iJPD10201412-202005

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-62010iJPD10201412-202005

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-62010iJPD10201412-202005

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-62010iJPD10201412-202005

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-62010iJPD10201412-202005

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-62010iJPD10201412-202005

58136ECOVER, FRONT SIDE MEMBER

main58136-62010iJPD10201412-202005

62563APROTECTOR, ROCKER PANEL, INNER REAR RH

main62563-62010iJPD10201412-202005

62564APROTECTOR, ROCKER PANEL, INNER REAR LH

main62564-62010iJPD10201412-202005

9011506166

main90115-06166

9011612057

main90116-12057

9011912431

main90119-12431

9017912071

main90179-12071

91553L1025

main91553-L1025

91553L1230

main91553-L1230

91645C1232

main91645-C1232

9167180616

main91671-80616

91672K1022

main91672-K1022

9167381022

main91673-81022

91674A1028

main91674-A1028

91674K1230

main91674-K1230

53 parts on this diagram · 1 diagram in section
