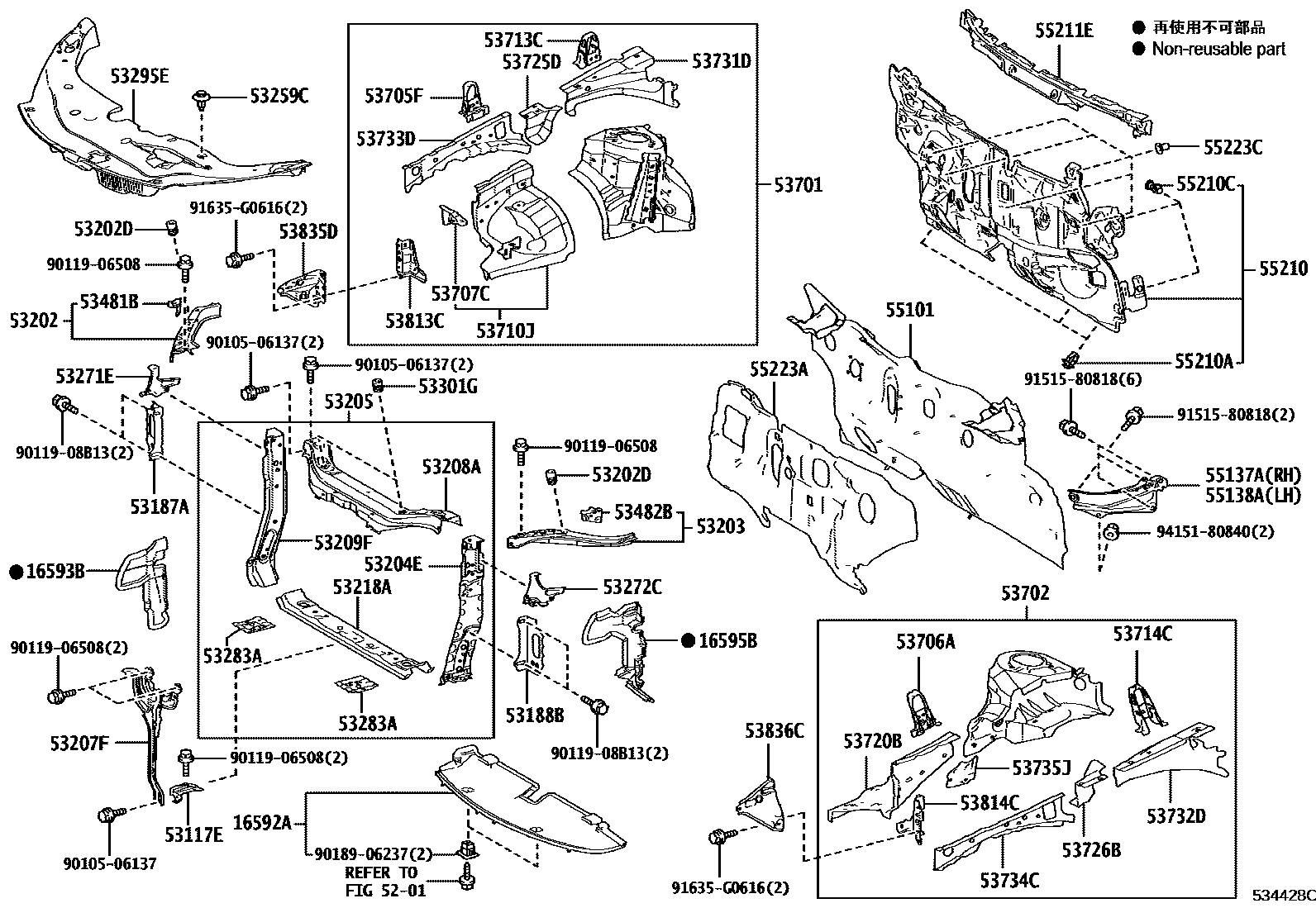

FRONT FENDER APRON & DASH PANEL
16592AGUIDE, RADIATOR AIR, NO.3
16593BGUIDE, RADIATOR AIR, NO.1 RH
16595BGUIDE, RADIATOR AIR, NO.1 LH
5201
53117EBRACKET, RADIATOR GRILLE, LOWER
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53207FRETAINER SUB-ASSY, COOL AIR INTAKE DUCT
53208ASUPPORT SUB-ASSY, HOOD LOCK
53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH
53218ASUPPORT, RADIATOR, LOWER
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER
53295ESEAL, COOL AIR INTAKE DUCT
53301GCUSHION, HOOD BUMPER
53481BBRACKET, HOOD SUPPORT, RH
53482BBRACKET, HOOD SUPPORT LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53705FBRACE SUB-ASSY, FENDER APRON, RH
53706ABRACE SUB-ASSY, FENDER APRON, LH
53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH
53710JAPRON ASSY, FRONT FENDER, RH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53720BAPRON ASSY, FRONT FENDER, LH
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53735JPATCH, FRONT FENDER APRON, NO.5
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53835DBRACKET, FRONT SIDE PANEL, RH
53836CBRACKET, FRONT SIDE PANEL, LH
55101PANEL SUB-ASSY, DASH
55137ABRACE, DASH TO FRAME, RH
55138ABRACE, DASH TO FRAME, LH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55210CCLIP
55211ESILENCER, FRONT PANEL
55223AINSULATOR, DASH PANEL, OUTER
55223CCLIP
9010506137
main90105-06137
9011906508
main90119-06508
9011908B13
main90119-08B13
9018906237
main90189-06237
9151580818
main91515-80818
91635G0616
main91635-G0616
9415180840
main94151-80840
60 parts on this diagram · 1 diagram in section
