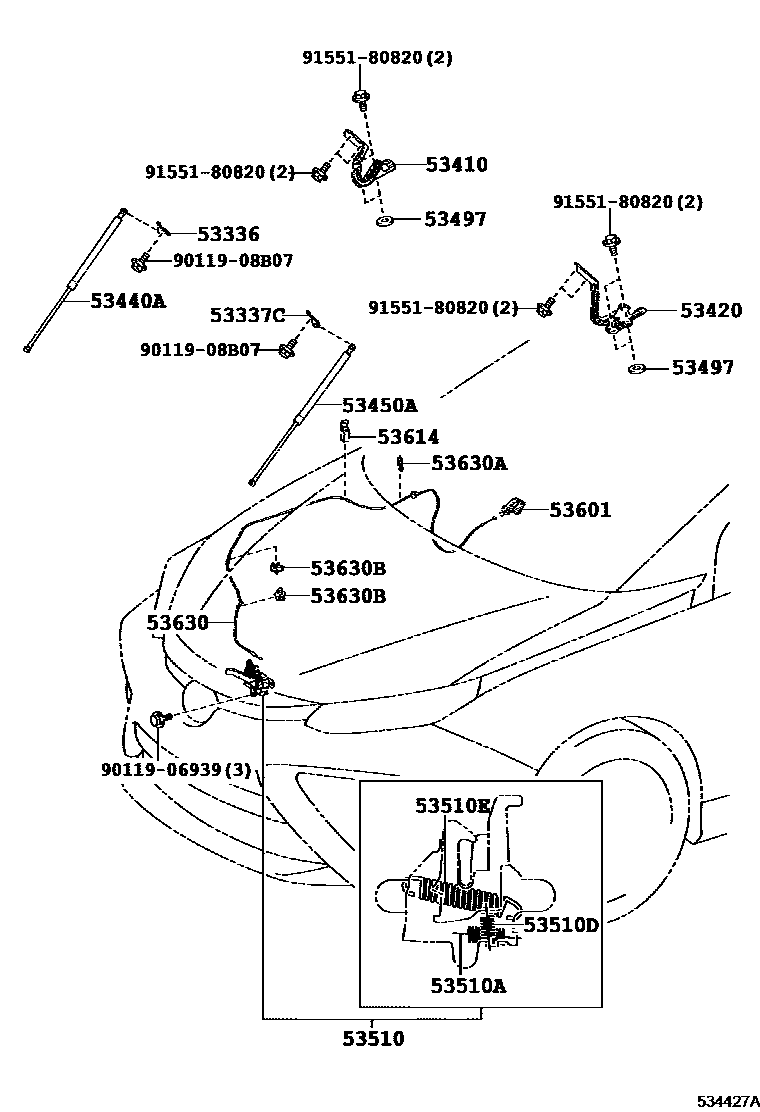

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-75020iJPD10201412-202005

53337CBRACKET, HOOD STAY, LH

main53337-75020iJPD10201412-202005

53410HINGE ASSY, HOOD, RH

main53410-62020iJPD10201412-202005

53420HINGE ASSY, HOOD, LH

main53420-62020iJPD10201412-202005

53440ASUPPORT ASSY, HOOD, RH

main53440-62010iJPD10201412-201611

sub53440-62011

main53440-62011iJPD10201612-201806

sub53440-62012

main53440-62012iJPD10201807-202005

53450ASUPPORT ASSY, HOOD, LH

main53450-62010iJPD10201412-201611

sub53450-62011

main53450-62011iJPD10201612-201806

sub53450-62012

main53450-62012iJPD10201807-202005

53497PAD, HOOD HINGE, NO.1

main53497-20070iJPD10201412-202005

main53497-42010iJPD10201412-202005

53510LOCK ASSY, HOOD

main53510-62010iJPD10201412-201905

sub53510-62011

main53510-62011iJPD10201906-202005

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iJPD10201412-202005

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iJPD10201412-202005

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iJPD10201412-202005

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A9iJPD10201412-202005

WARM WHITE,TRIM00

sub53601-52010

main53601-52010-C0iJPD10201412-201612

BLACK,TRIM01,8#

sub53601-52010

main53601-52010-C1iJPD10201612-202005

BLACK,TRIM01,8#

sub53601-52010

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47020iJPD10201412-202005

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-62010iJPD10201412-202005

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main82817-47G30iJPD10201412-202005

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iJPD10201412-202005

9011906939

main90119-06939

9011908B07

main90119-08B07

9155180820

main91551-80820

19 parts on this diagram · 1 diagram in section
