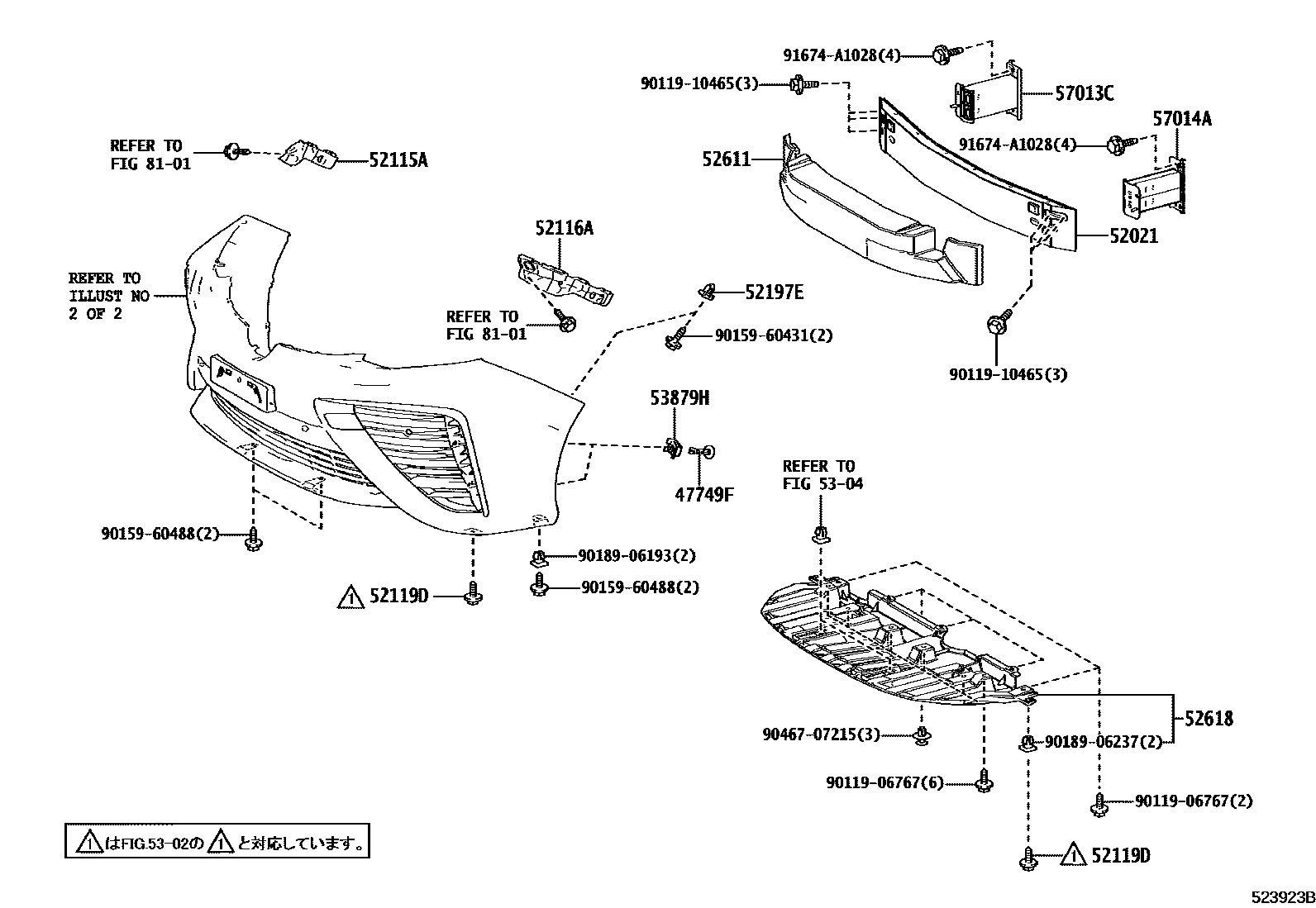

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-50090iJPD10201412-202005

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-62010iJPD10201412-202005

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-62010iJPD10201412-202005

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-62010iJPD10201412-202005

52119DSCREW, NO.1

main90159-60488iJPD10201412-202005

52197EBRACKET, FRONT BUMPER SEAL

main52197-62020iJPD10201412-202005

52611ABSORBER, FRONT BUMPER ENERGY

main52611-62010iJPD10201412-201811

main52611-62011iJPD10201811-202005

52618ABSORBER, FRONT BUMPER, LOWER

main52618-62010iJPD10201412-202005

5304

53879HRETAINER, FRONT FENDER LINER

main53879-30040iJPD10201412-202005

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-75020iJPD10201412-202005

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-75020iJPD10201412-202005

8101

9011906767

main90119-06767

9011910465

main90119-10465

9015960431

main90159-60431

9015960488

main90159-60488

9018906193

main90189-06193

9018906237

main90189-06237

9046707215

main90467-07215

91674A1028

main91674-A1028

21 parts on this diagram · 2 diagrams in section
