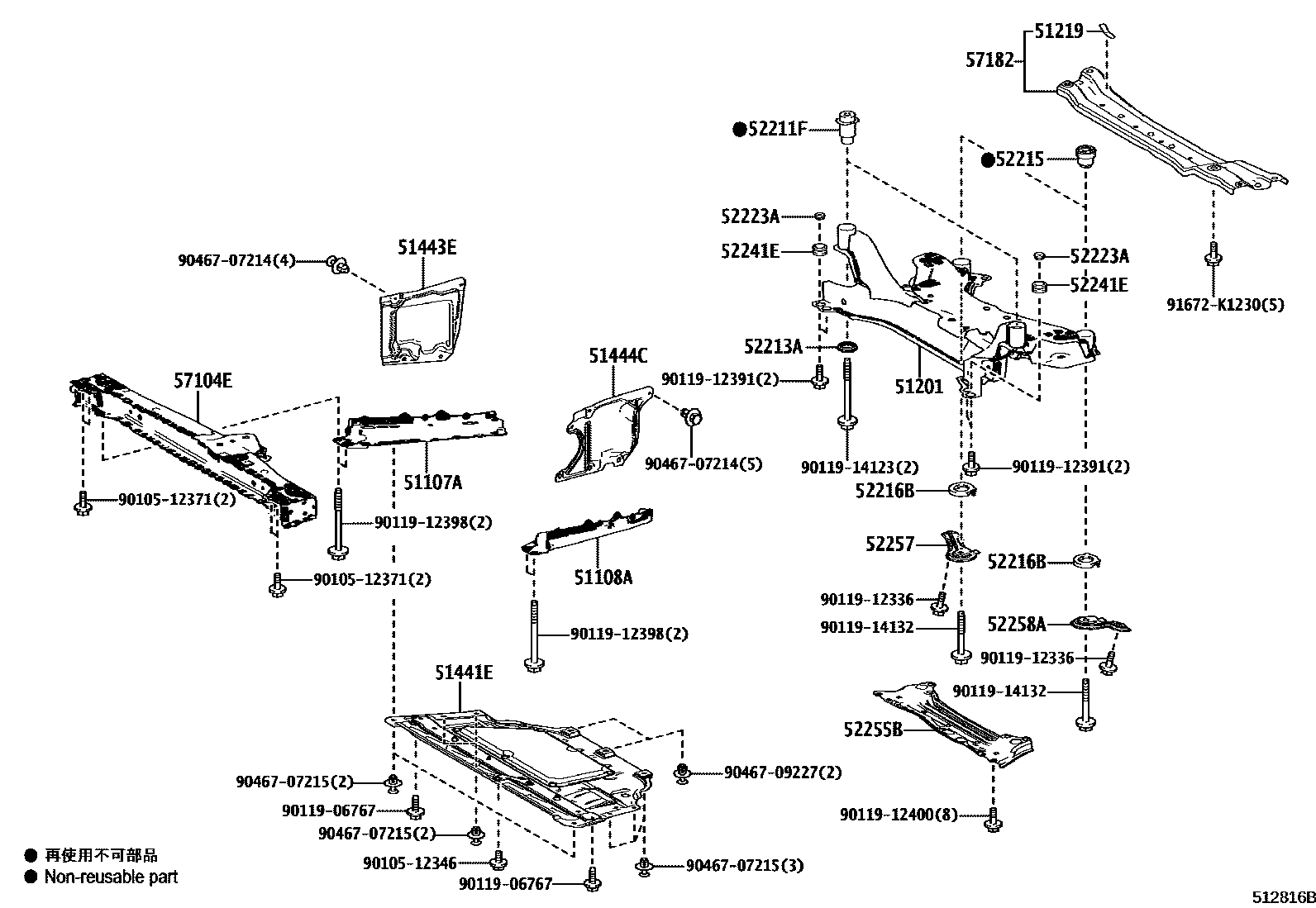

SUSPENSION CROSSMEMBER & UNDER COVER
51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51441ECOVER, MOTOR UNDER, NO.1
51443ECOVER, MOTOR UNDER, REAR RH
51444CCOVER, MOTOR UNDER, REAR LH
52211FCUSHION, BODY MOUNTING, FRONT UPPER
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52223ASPACER, CAB REAR MOUNTING, LOWER
52241ECUSHION, CAB REAR MOUNTING
52255BBRACE, FRONT SUSPENSION MEMBER
52257BRACE, FRONT SUSPENSION MEMBER, REAR RH
52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH
57104EMEMBER SUB-ASSY, FRONT CROSS
57182BRACE SUB-ASSY, SUSPENSION MEMBER TO FRONT CROSSMEMBER
9010512346
9010512371
9011906767
9011912336
9011912391
9011912398
9011912400
9011914123
9011914132
9046707214
9046707215
9046709227
91672K1230
31 parts on this diagram · 1 diagram in section
