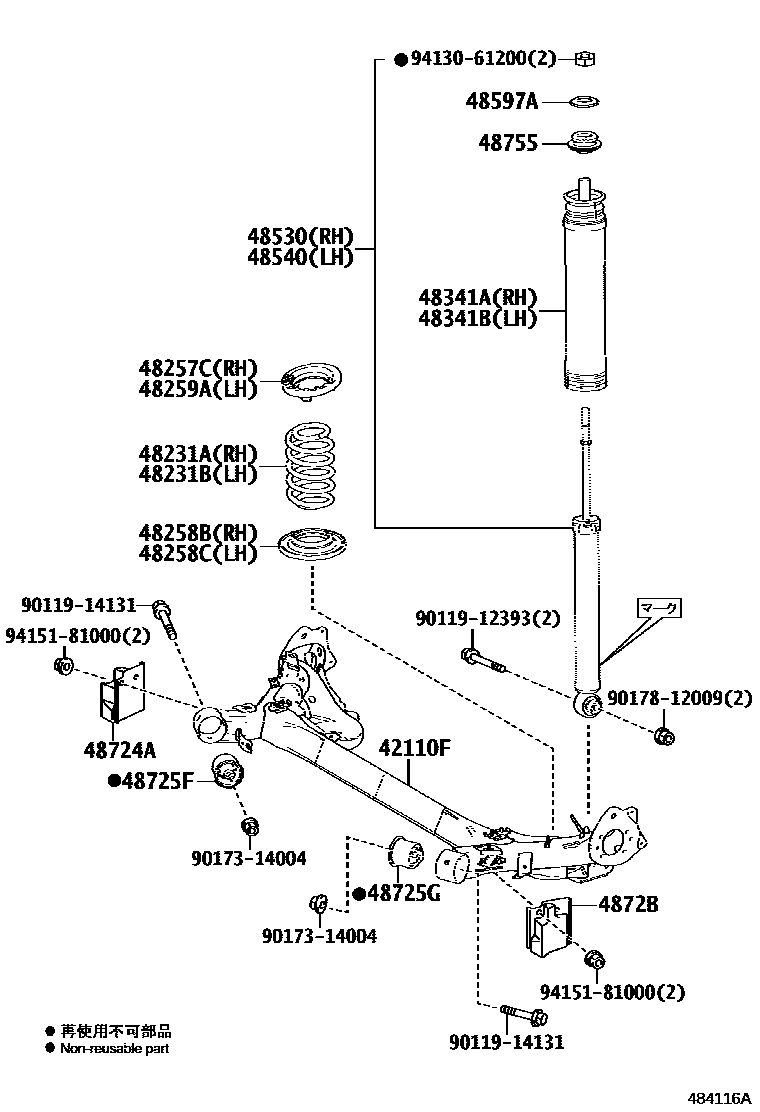

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48724ADAMPER, REAR AXLE BEAM DYNAMIC
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
4872BDAMPER, RR AXLE BEAM DYNAMIC, LH
48755SUPPORT, REAR SUSPENSION
9011912393
main90119-12393
9011914131
main90119-14131
9017314004
main90173-14004
9017812009
main90178-12009
9413061200
main94130-61200
9415181000
main94151-81000
23 parts on this diagram · 1 diagram in section
