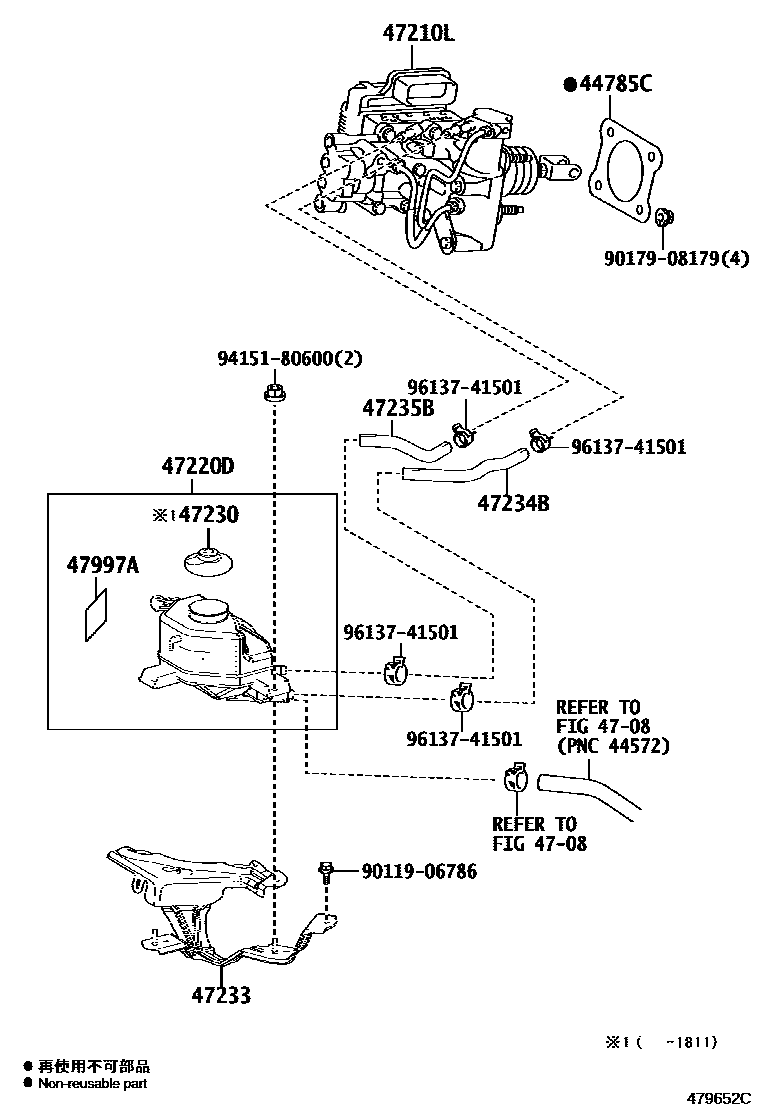

BRAKE MASTER CYLINDER

44785CGASKET, BRAKE BOOSTER

main44785-12040iJPD10201412-202005

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-62010iJPD10201412-201811

main47050-62030iJPD10201811-202005

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-47070iJPD10201412-201811

main47220-47110iJPD10201811-202005

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iJPD10201412-201811

main47230-47110iJPD10201811-202005

47233BRACKET, RESERVOIR

main47233-75010iJPD10201412-202005

47234BTUBE, RESERVOIR, NO.1

main47234-75010iJPD10201412-202005

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-75010iJPD10201412-202005

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iJPD10201412-202005

9011906786

main90119-06786

9017908179

main90179-08179

9415180600

main94151-80600

9613741501

main96137-41501

13 parts on this diagram · 1 diagram in section
