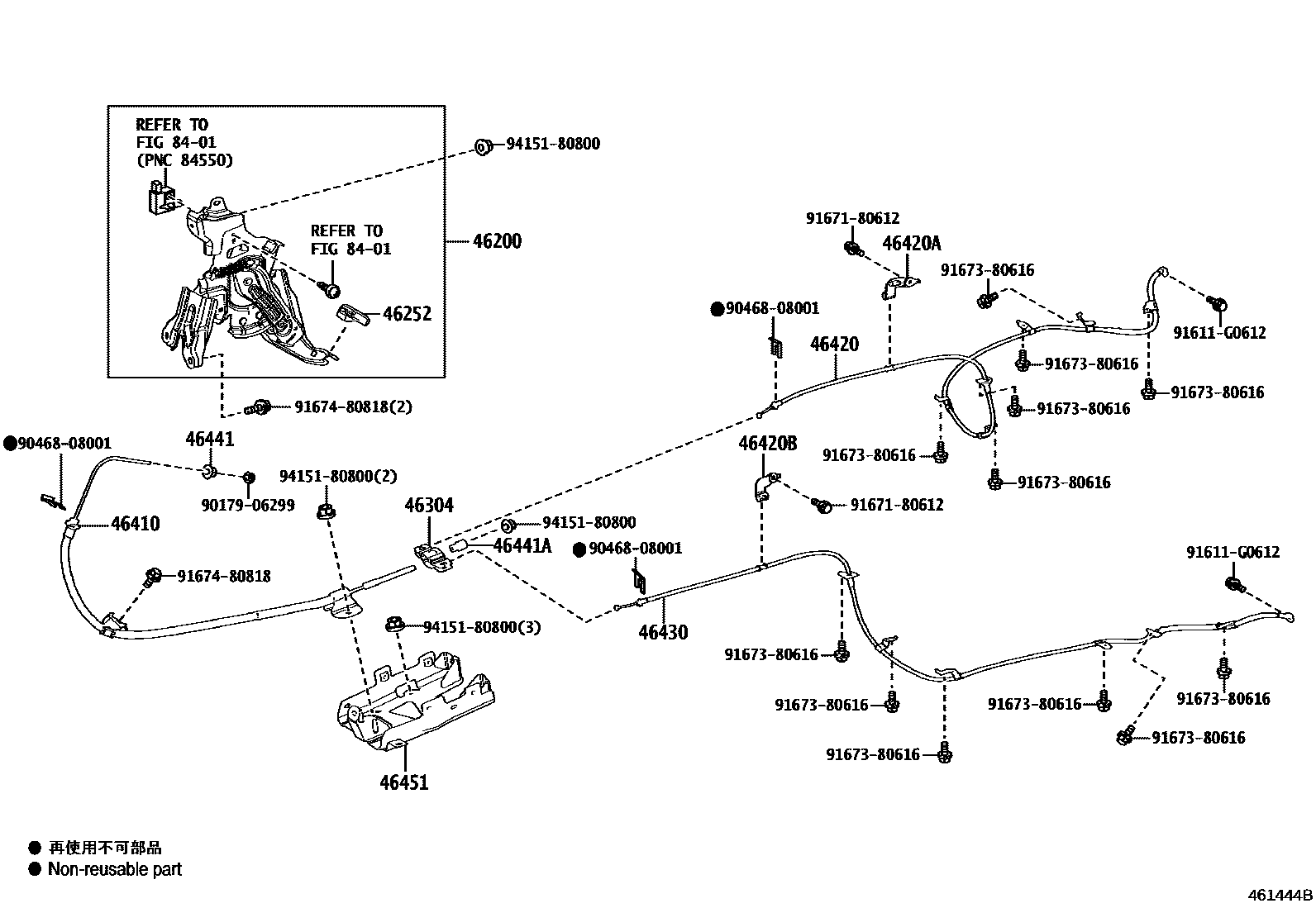

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46210-76010iJPD10201412-202005

46252PAD, PARKING PEDAL

main46252-47010iJPD10201412-202005

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-17020iJPD10201412-202005

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-62010iJPD10201412-202005

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-62010iJPD10201412-202005

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-62010iJPD10201412-202005

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-62010iJPD10201412-202005

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-62010iJPD10201412-202005

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iJPD10201412-202005

46441ANUT, WIRE ADJUSTING, NO.2

main46441-47020iJPD10201412-202005

46451BRACKET, CABLE SUPPORT

main46451-62010iJPD10201412-202005

8401

9017906299

main90179-06299

9046808001

main90468-08001

91611G0612

main91611-G0612

9167180612

main91671-80612

9167380616

main91673-80616

9167480818

main91674-80818

9415180800

main94151-80800

19 parts on this diagram · 2 diagrams in section
