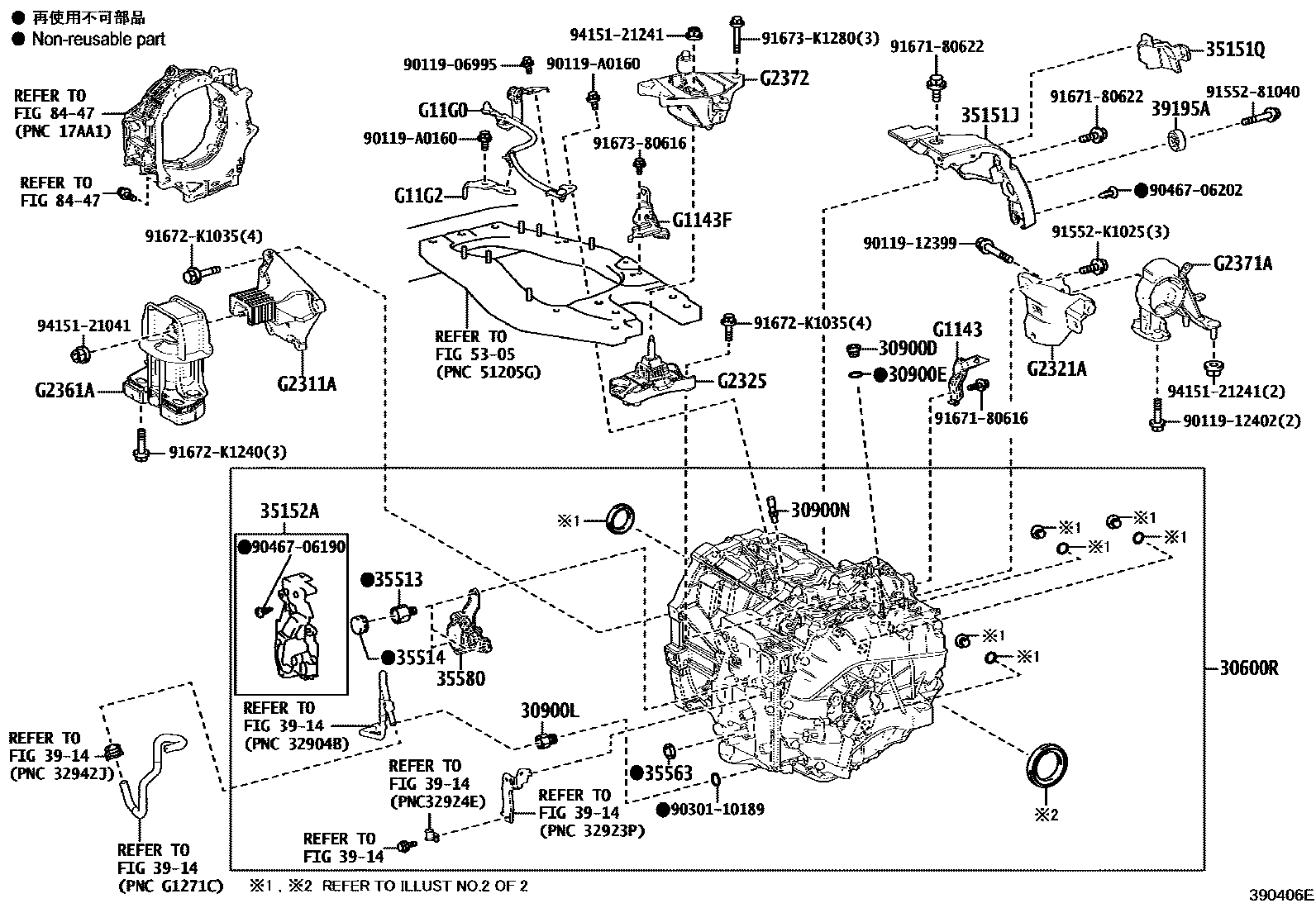

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30600RTRANSAXLE ASSY, FCV W/MOTOR
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900LUNION(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
35151JCOVER, AUTOMATIC TRANSMISSION CASE
35151QCOVER, AUTOMATIC TRANSMISSION CASE, NO.2
35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2
35513BOLT, SHIFT CONTROL ACTUATOR
35514CAP, SHIFT CONTROL ACTUATOR BOLT
35563SEAL, SHIFT CONTROL ACTUATOR
35580ACTUATOR ASSY, SHIFT CONTROL
3914
39195ADAMPER, FCV TRANSAXLE MASS
5305
8447
G1143BRACKET, MOTOR CABLE
G1143FBRACKET, MOTOR CABLE, NO.2
G11G0CABLE ASSY, FCV TRACTION MOTOR BOND
G11G2BRACKET, FCV MOTOR WIRE CLAMP, NO.2
G2311ABRACKET, MOTOR MOUNTING, FRONT
G2321ABRACKET, MOTOR MOUNTING, REAR
G2325BRACKET, MOTOR MOUNTING, LH
G2361AINSULATOR, MOTOR MOUNTING, FRONT
G2371AINSULATOR, MOTOR MOUNTING, REAR
G2372INSULATOR, MOTOR MOUNTING, LH
9011906995
main90119-06995
9011912399
main90119-12399
9011912402
main90119-12402
90119A0160
main90119-A0160
9030110189
main90301-10189
9046706190
main90467-06190
9046706202
main90467-06202
9155281040
main91552-81040
91552K1025
main91552-K1025
9167180616
main91671-80616
9167180622
main91671-80622
91672K1035
main91672-K1035
91672K1240
main91672-K1240
9167380616
main91673-80616
91673K1280
main91673-K1280
9415121041
main94151-21041
9415121241
main94151-21241
43 parts on this diagram · 2 diagrams in section
