E
EPC Data

MIRROR

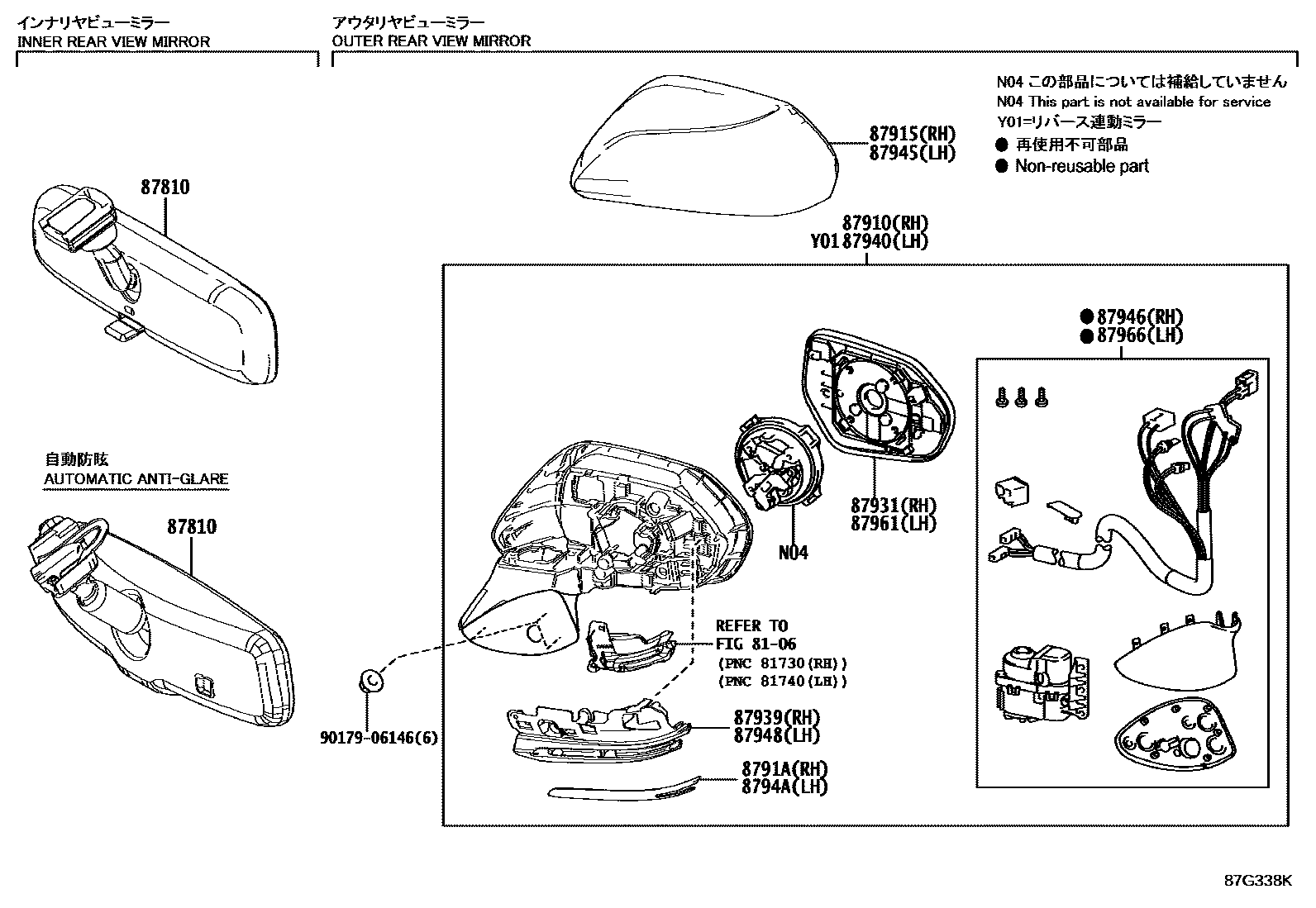

Parts diagram
8106
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WS50i201706-202101
main87810-0WS51i202102
main87810-53200i201706-201807
sub87810-53210
main87810-53210i201808-202101
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-33D00i201706-202101
main87910-33D10i201706-201910
main87910-33D10i201706-201910
main87910-33D10i201808-201910
main87910-33D10i201910-202101
main87910-33K00i202102
main87910-33K10i202102
main87910-33K20i202102-202209
main87910-33K21i202209
87915COVER, OUTER MIRROR, RH
main87915-33030-A1i201706-202101
PLATINUM WHITE PEARL MC.,089
main87915-33030-B0i201706-202101
SILVER ME.,1F7
main87915-33030-B3i202102
PRECIOUS METAL,1L5
main87915-33030-C0i202102
ATTITUDE BLACK MC.,218 ,2PS ,2RC ,2SC ,2XM
main87915-33030-C0i201706-202101
ATTITUDE BLACK MC.,218
main87915-33030-C0i201808-202101
ATTITUDE BLACK MC.,218 ,2PS ,2RC ,2SC
main87915-33030-C2i202008-202101
PRECIOUS BLACK,219
main87915-33030-D0i201706-201808
EMOTIONAL RED,3T7
main87915-33030-D1i201808-202208
EMOTIONAL RED 2,3U5
main87915-33030-D3i202208
EMOTIONAL RED 3,3U9
main87915-33030-E1i201706-202101
STEEL BLONDE ME.,4X1
main87915-33030-E2i201706-202101
GRAPHITE ME.,4X7
main87915-33030-J0i201706-202101
DK.BLUE M.M.,8W7
8791ACOVER, OUTER MIRROR, RH NO.2
main8791B-47360i201706-202101
87931OUTER MIRROR, RH
main87902-33170i201706-202101
main87902-33180i201706-201910
main87902-33180i201706-201910
main87902-33180i201808-201910
main87902-33180i201910-202101
main87902-33340i202102
main87902-33350i202102
87939COVER, OUTER MIRROR HOLE, RH
main87939-33D50i202102-202208
main87939-47360i201706-202101
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-33D00i201706-202101
main87940-33D10i201706-201910
main87940-33D10i201808-201910
main87940-33D10i201910-202101
main87940-33D10i201706-201910
main87940-33K00i202102
main87940-33K10i202102
main87940-33K20i202102-202209
main87940-33K21i202209
87945COVER, OUTER MIRROR, LH
main87945-33030-A1i201706-202101
PLATINUM WHITE PEARL MC.,089
main87945-33030-B0i201706-202101
SILVER ME.,1F7
main87945-33030-B3i202102
PRECIOUS METAL,1L5
main87945-33030-C0i202102
ATTITUDE BLACK MC.,218 ,2PS ,2RC ,2SC ,2XM
main87945-33030-C0i201706-202101
ATTITUDE BLACK MC.,218
main87945-33030-C0i201808-202101
ATTITUDE BLACK MC.,218 ,2PS ,2RC ,2SC
main87945-33030-C2i202008-202101
PRECIOUS BLACK,219
main87945-33030-D0i201706-201808
EMOTIONAL RED,3T7
main87945-33030-D1i201808-202208
EMOTIONAL RED 2,3U5
main87945-33030-D3i202208
EMOTIONAL RED 3,3U9
main87945-33030-E1i201706-202101
STEEL BLONDE ME.,4X1
main87945-33030-E2i201706-202101
GRAPHITE ME.,4X7
main87945-33030-J0i201706-202101
DK.BLUE M.M.,8W7
87946RETRACTOR, OUTER MIRROR, RH
main87946-33D10i201706-201910
main87946-33D10i201706-201910
main87946-33D10i201808-201910
main87946-33D10i201910-202101
main87946-33D10i202102
main87946-33D20i201706-202101
main87946-33K20i202102-202208
87948COVER, OUTER MIRROR HOLE, LH
main87948-33D50i202102-202208
main87948-47250i201706-202101
8794ACOVER, OUTER MIRROR, LH NO.2
main8794B-47250i201706-202101
87961MIRROR OUTER, LH
main87907-12020i202102
main87907-33150i201706-202101
main87907-33160i201706-201910
main87907-33160i201706-201910
main87907-33160i201808-201910
main87907-33160i201910-202101
main87907-33170i202102
87966RETRACTOR, OUTER MIRROR, LH
main87966-33D10i201706-201910
main87966-33D10i201706-201910
main87966-33D10i201808-201910
main87966-33D10i201910-202101
main87966-33D10i202102
main87966-33D20i201706-202101
main87966-33K20i202102-202208
9017906146
main90179-06146

15 parts on this diagram · 2 diagrams in section
