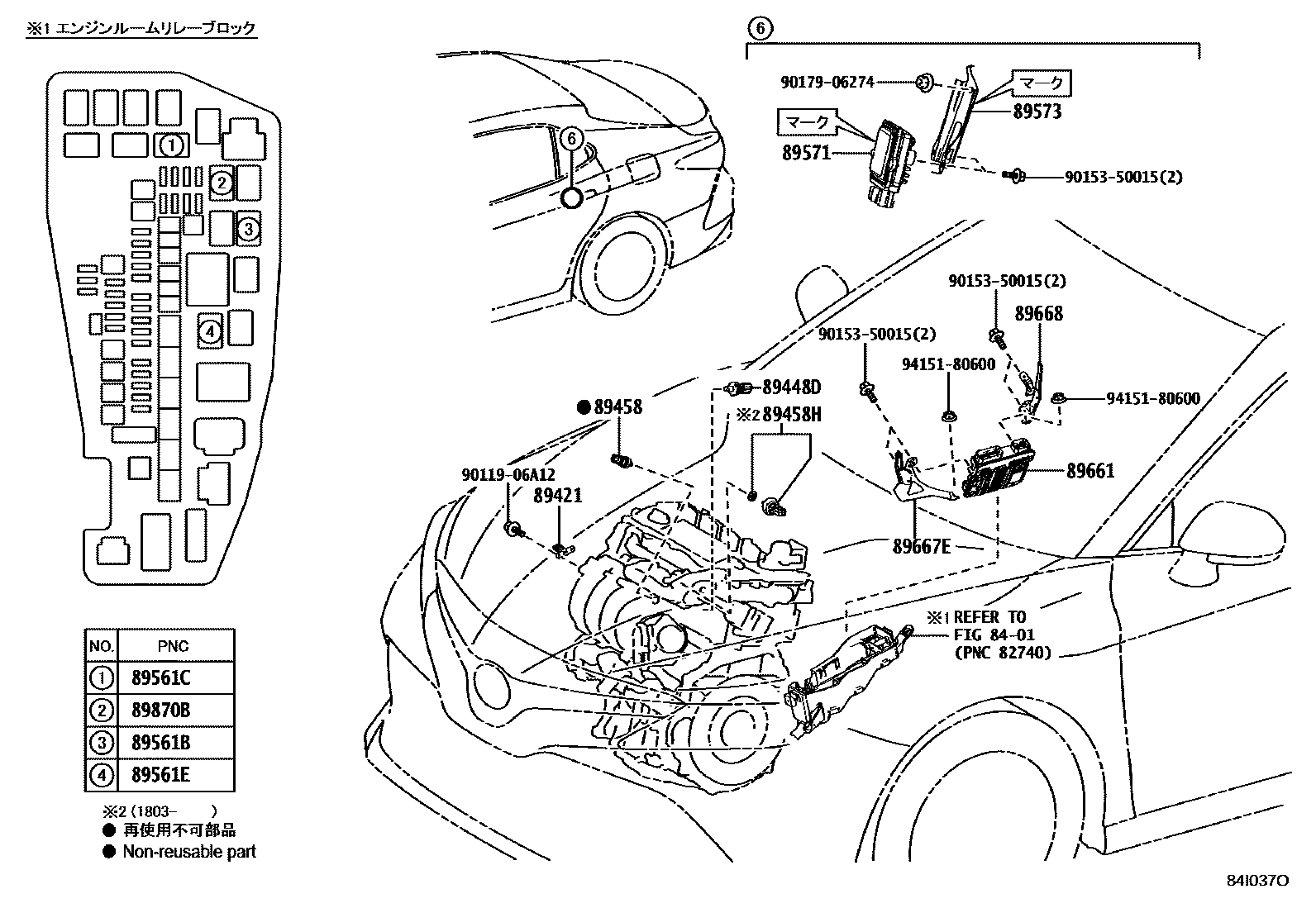

ELECTRONIC FUEL INJECTION SYSTEM
8401
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89448DSENSOR, OIL PRESSURE & TEMPERATURE
89458SENSOR, FUEL PRESSURE
89458HSENSOR, FUEL PRESSURE, NO.2
89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
89561ERELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
89571COMPUTER, FUEL PUMP CONTROL
89573BRACKET, FUEL PUMP CONTROL COMPUTER
89661COMPUTER, ENGINE CONTROL
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89870BRELAY, ELECTRONIC DRIVER UNIT
9011906A12
main90119-06A12
9015350015
main90153-50015
9017906274
main90179-06274
9415180600
main94151-80600
18 parts on this diagram · 1 diagram in section
