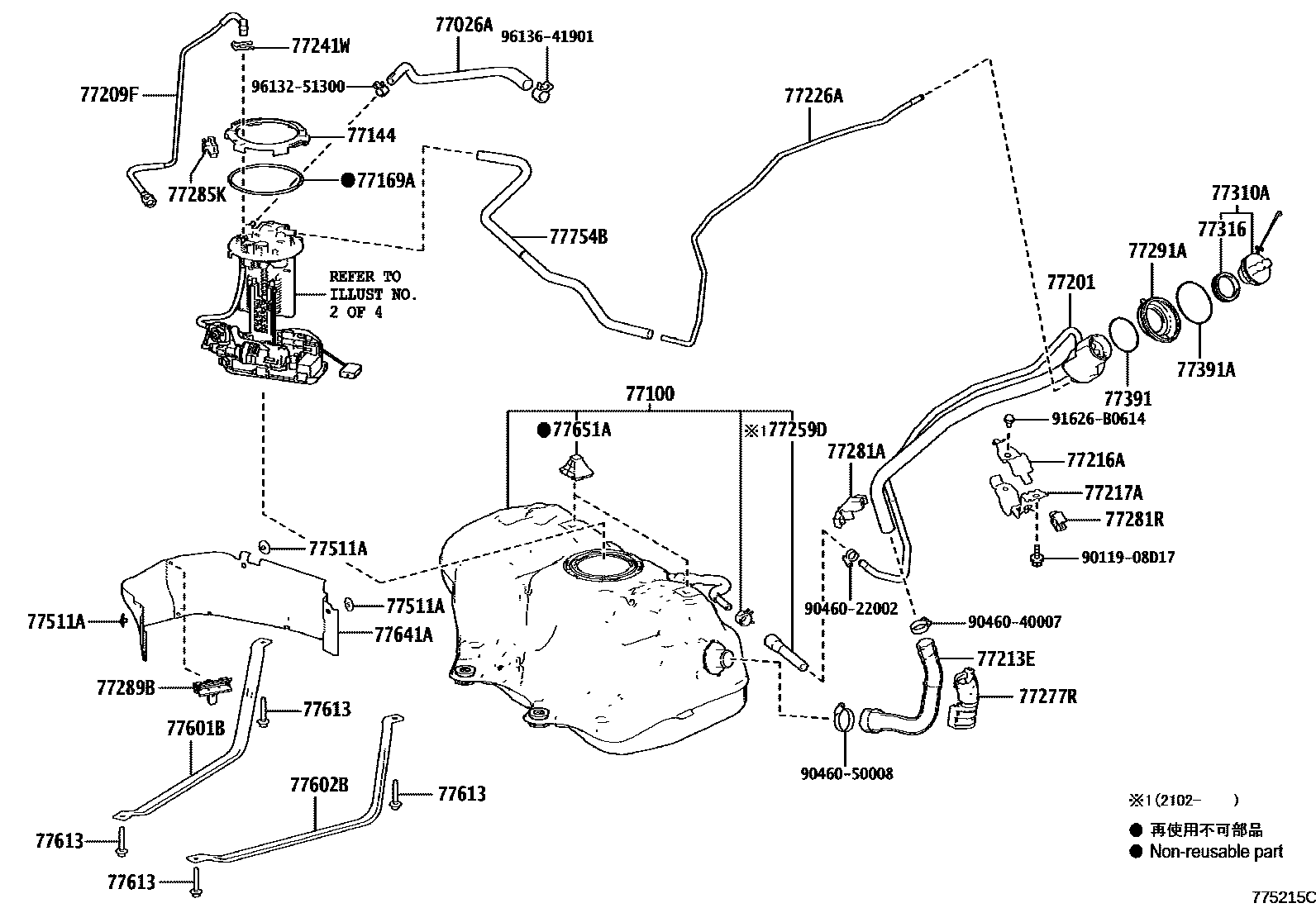

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1����� ����� 0004 1����� ����� 0005 1����� ����� 0006 1���������� 0007 1����� ���� �����

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-33040iAXVH7#202102

main77026-33050iAXVH70201706-201912

77100TANK ASSY, FUEL

main77001-33280iAXVH70201706-201912

main77001-33311iAXVH7#202208

main77001-33430iAXVH7#201912-202101

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAXVH7#202102

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iAXVH7#202102-202208

main77169-47040iAXVH7#202208

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-33400iAXVH7#201706-202101

main77201-33560iAXVH7#202208

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-33140iAXVH7#201706-202101

main77209-33171iAXVH7#202208

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-33130iAXVH7#201706-202101

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33150iAXVH7#201706-202101

main77216-33190iAXVH7#202208

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33090iAXVH7#201706-202101

main77217-33130iAXVH7#202208

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33130iAXVH7#201706-202101

main77226-33250iAXVH7#202208

77241WCLIP, TUBE JOINT

main77241-33011iAXVH7#201706-202101

main77241-60550iAXVH7#202108

77259DHOSE, FUEL, NO.1

main77259-33080iAXVH7#202102-202208

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-33110iAXVH7#201706-202101

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-33080iAXVH7#201706-202101

77281ACLAMP, FUEL FILLER PIPE

main77281-33050iAXVH7#201706-202101

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-30110iAXVH7#201706-202101

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350iAXVH7#201706-202101

77289BCLAMP, FUEL TUBE, NO.3

main77289-33090iAXVH7#201912-202101

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33110iAXVH7#201706-202101

77310ACAP ASSY, FUEL TANK

main77300-12020iAXVH7#202102-202208

main77300-48020iAXVH7#202208

77316GASKET, FUEL TANK CAP

main77316-52040iAXVH7#201706-202101

main77316-75020iAXVH7#202208

77391RING, FUEL INLET BOX

main77391-12020iAXVH7#201706-202101

77391ARING, FUEL INLET BOX

main77391-20040iAXVH70201706-201803

main77391-33060iAXVH7#201804-202101

77511ABRACKET, FUEL TANK

main77512-35140×2iAXVH7#201912-202101

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33180iAXVH70201706-202101

main77601-33200iAXVH75201912-202101

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33190iAXVH70201706-202101

main77602-33210iAXVH75202102

77613BOLT, FUEL TANK BAND SET

main90119-10995×4iAXVH70201706-202101

77641APROTECTOR, FUEL TANK, NO.1

main77606-33030iAXVH70201706-201912

main77606-33050iAXVH7#201912-202101

77651ACUSHION, FUEL TANK, NO.1

main77651-33060×2iAXVH7#201706-202101

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-33080iAXVH7#201706-202101

9011908D17

main90119-08D17

9046022002

main90460-22002

9046040007

main90460-40007

9046050008

main90460-50008

91626B0614

main91626-B0614

9613251300

main96132-51300

9613641901

main96136-41901

37 parts on this diagram · 7 diagrams in section
