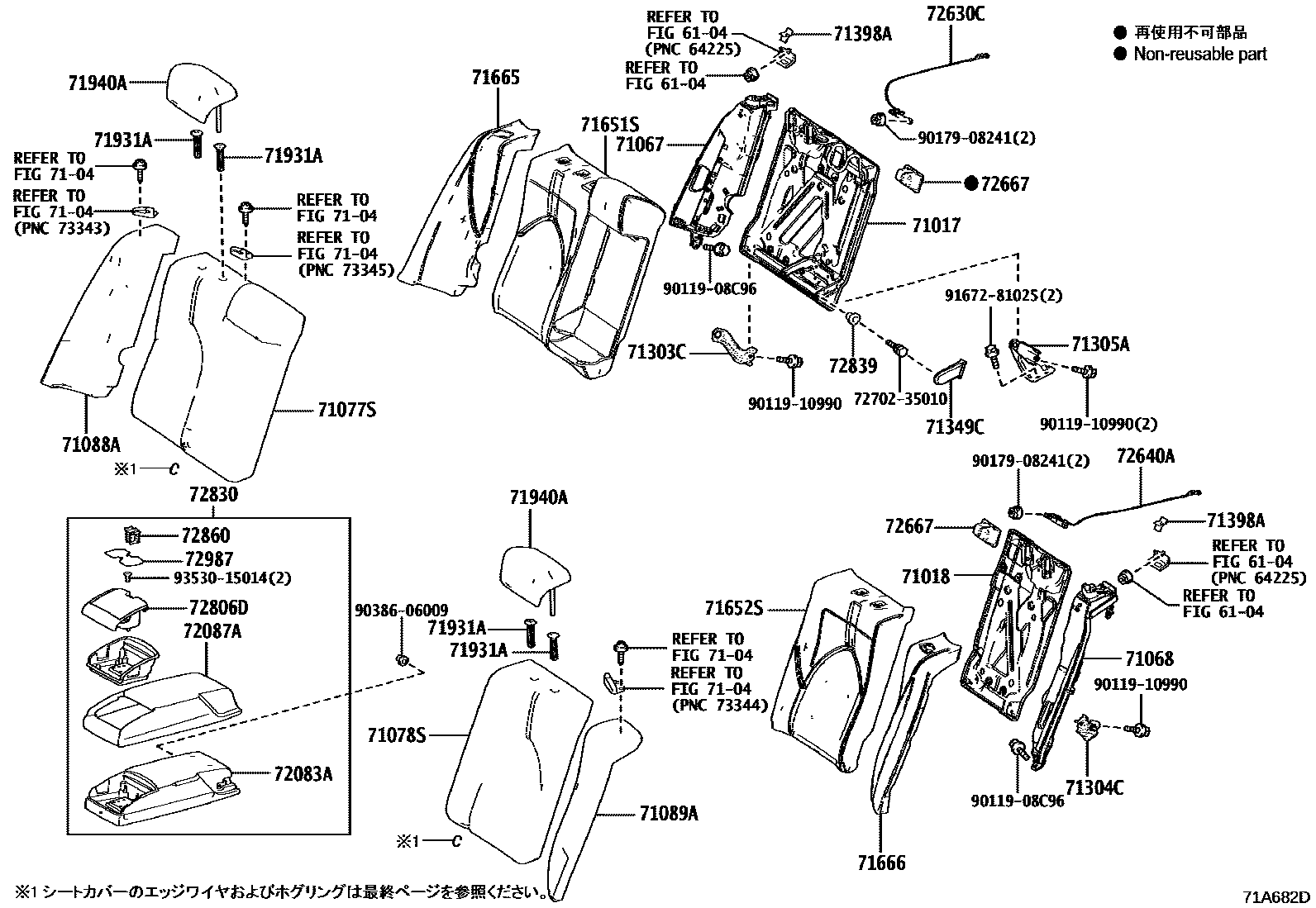

REAR SEAT & SEAT TRACK

0001 1������� 0002 1�������� 0003 1�������������� & �������

6104

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-33240iAXVH7#201706-202101

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-33170iAXVH7#201706-202101

7104

71067FRAME SUB-ASSY, REAR SIDE SEATBACK, RH

main71067-33010iAXVH7#201706-202101

71068FRAME SUB-ASSY, REAR SIDE SEATBACK, LH

main71068-33010iAXVH7#201706-202101

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-33K70-21iAXVH7#..G,X202102

BLACK/BLACK,TRIM2#

main71077-33K70-C5iAXVH70201706-201808

BLACK,TRIM2#

main71077-33K70-C9iAXVH7#..G,X201808-202101

BLACK,TRIM2#

main71077-33Q01-C2iAXVH7#..WS201808-202101

BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-33890-21iAXVH7#..G,X202102

BLACK/BLACK,TRIM2#

main71078-33890-C5iAXVH70201706-201808

BLACK,TRIM2#

main71078-33890-C9iAXVH7#..G,X201808-202101

BLACK,TRIM2#

main71078-33B71-C2iAXVH7#..WS201808-202101

BLACK,TRIM2#

71088ACOVER SUB-ASSY, REAR SIDE SEATBACK, RH

main71088-33370-C4iAXVH70201706-201807

BLACK,TRIM2#

main71088-33371-C6iAXVH70..G,X201808-201910

BLACK,TRIM2#

main71088-33371-C7iAXVH7#..G,X201910-202101

BLACK,TRIM2#

main71088-33371-C8iAXVH7#..G,X202102

BLACK/BLACK,TRIM2#

main71088-33411-C3iAXVH70..WS201808-201910

BLACK,TRIM2#

main71088-33411-C4iAXVH7#..WS201910-202101

BLACK,TRIM2#

71089ACOVER SUB-ASSY, REAR SIDE SEATBACK, LH

main71089-33360-C4iAXVH70201706-201807

BLACK,TRIM2#

main71089-33361-C6iAXVH70..G,X201808-201910

BLACK,TRIM2#

main71089-33361-C7iAXVH7#..G,X201910-202101

BLACK,TRIM2#

main71089-33361-C8iAXVH7#..G,X202102

BLACK/BLACK,TRIM2#

main71089-33401-C3iAXVH70..WS201808-201910

BLACK,TRIM2#

main71089-33401-C4iAXVH7#..WS201910-202101

BLACK,TRIM2#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-33080iAXVH7#201706-202101

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-33020iAXVH7#201706-202101

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-33110iAXVH7#201706-202101

71349CCOVER, REAR SEATBACK HINGE

main71349-33040-C0iAXVH7#201706-202101

BLACK,TRIM2#

main71349-33040-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

71398AHOLDER, REAR SEATBACK

main71398-33010iAXVH7#202104

main71398-33010-C1iAXVH7#201706-202104

BLACK

sub71398-33010

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-33240iAXVH7#201706-202101

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-33150iAXVH7#201706-202101

71665PAD, REAR SEATBACK SIDE, RH

main71665-33060iAXVH7#201706-202101

71666PAD, REAR SEATBACK SIDE, LH

main71666-33070iAXVH7#201706-202101

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5iAXVH7#..G202102-202208

main71930-47050-C5iAXVH7#..WS,X201706-202101

main71930-47050-C5iAXVH7#..G202208

main71930-47050-C5iAXVH7#..WS201808-202101

main71930-47050-E0iAXVH7#..G201706-202101

main71930-47050-E0iAXVH7#..G202102-202208

main71931-47030-C4iAXVH7#..G,X201706-202101

main71931-47030-C4iAXVH7#..WS201808-202101

main71931-47030-C4iAXVH7#..G202102-202208

main71931-47030-C4iAXVH7#..G202208

main71931-47030-E0iAXVH7#..G201706-202101

main71931-47030-E0iAXVH7#..G202102-202208

71940AHEADREST ASSY, REAR SEAT

main71940-33E60-C3iAXVH7#..G,X201706-202101

BLACK,TRIM2#

main71940-33E91-C5iAXVH7#..G201808-202101

main71940-33E91-C5iAXVH7#..WS201808-202101

BLACK,TRIM2#

main71940-33E91-C5iAXVH7#..WS202102

main71940-33E91-D0iAXVH7#..WS202008-202101

SENSUAL RED,TRIM3#

72083APAD SUB-ASSY, REAR SEAT CENTER ARMREST

main72083-33170iAXVH7#201706-202101

72087ACOVER SUB-ASSY, REAR SEAT CENTER ARMREST

main72087-33790-C2iAXVH7#..G,X201706-202101

BLACK,TRIM2#

main72087-33B41-C1iAXVH70..WS201808-201910

BLACK,TRIM2#

main72087-33B41-C2iAXVH7#..WS201910-202101

BLACK,TRIM2#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-33080iAXVH7#201706-202101

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-33090iAXVH7#201706-202101

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-33010iAXVH7#201706-202101

72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-33090-C0iAXVH7#..G,X201706-202101

BLACK,TRIM2#

main72806-33090-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-33D60-C5iAXVH70201706-201808

BLACK,TRIM2#

main72830-33D60-C6iAXVH70..G,X201808-201910

BLACK,TRIM2#

main72830-33D60-C7iAXVH7#..G,X201910-202101

BLACK,TRIM2#

main72830-33L01-C2iAXVH70..WS201808-201910

BLACK,TRIM2#

main72830-33L01-C3iAXVH7#..WS201910-202101

BLACK,TRIM2#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-12010iAXVH7#201706-202101

72860BOX ASSY, REAR SEAT CENTER ARMREST

main72860-33370-C0iAXVH7#..G,X201706-202101

BLACK,TRIM2#

main72860-33370-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

72987COVER, REAR SEAT CENTER ARMREST

main72987-33130-C0iAXVH70201706-201808

BLACK,TRIM2#

main72987-33130-C1iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

main72987-33130-C1iAXVH7#..WS201808-202101

BLACK,TRIM2#

7270235010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-35010

9011908C96

main90119-08C96

9011910990

main90119-10990

9017908241

main90179-08241

9038606009

main90386-06009

9167281025

main91672-81025

9353015014

main93530-15014

38 parts on this diagram · 3 diagrams in section
