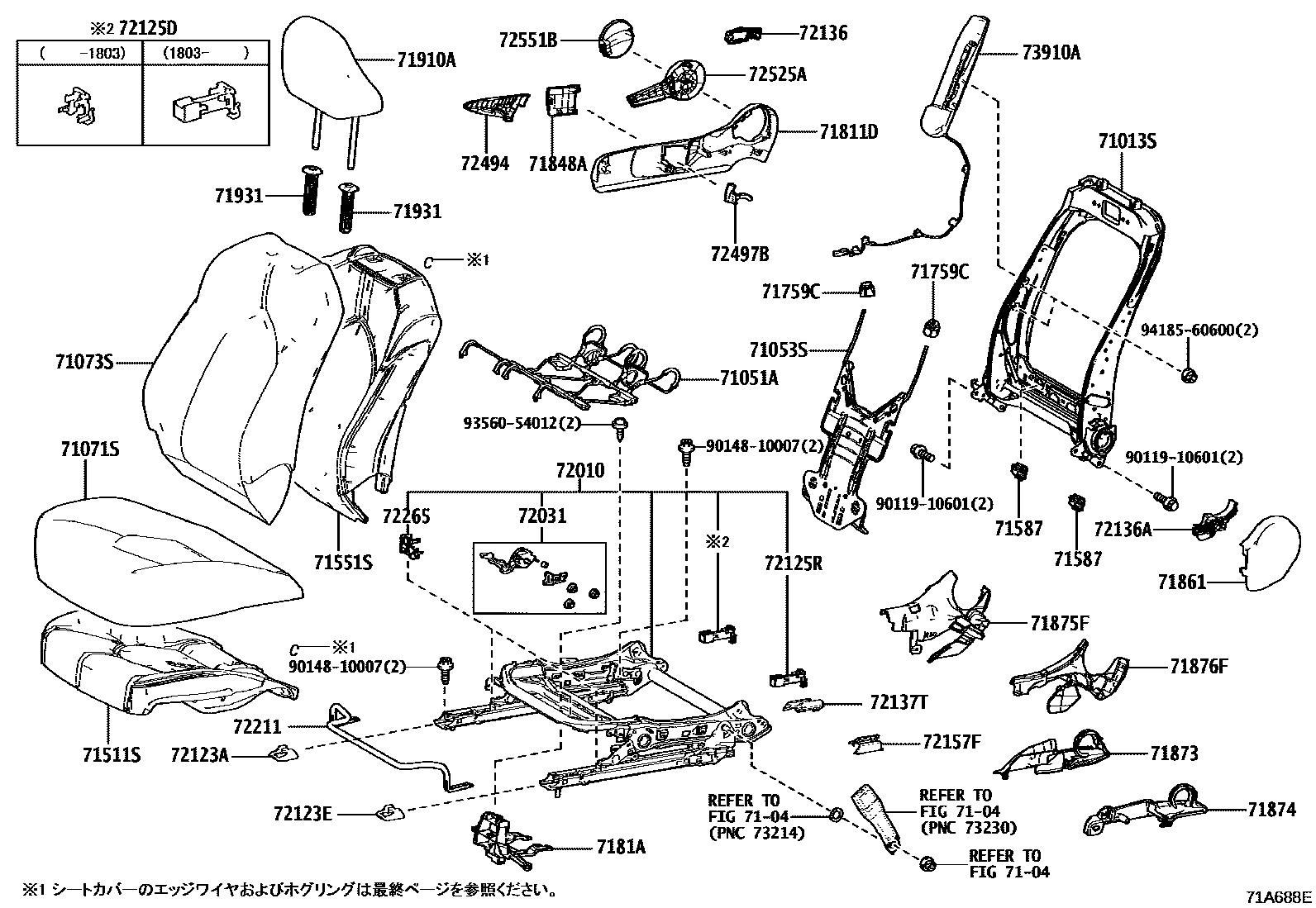

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71759CHOOK, FRONT SEATBACK, NO.1
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,41
NEUTRAL BEIGE,TRIM40
NEUTRAL BEIGE,TRIM4#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71848ACAP, SEAT ADJUSTER COVER, RH
BLACK,TRIM2#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
SENSUAL RED,TRIM3#
71931SUPPORT, FRONT SEAT HEADREST
72010ADJUSTER ASSY, FRONT SEAT, RH
72031ADJUSTER ASSY, FRONT SEAT VERTICAL
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123ECOVER, SEAT TRACK BRACKET, INNER FRONT RH
72125DCOVER, SEAT TRACK, UPPER REAR NO.2
72125RCOVER, SEAT TRACK, UPPER REAR NO.1
72136SPACER, SEAT TRACK, LOWER NO.1
72136ASPACER, SEAT TRACK, LOWER NO.2
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH
72211HANDLE, SEAT TRACK ADJUSTING
72265COVER, SEAT TRACK UPPER RAIL, RH
72494HANDLE, VERTICAL ADJUSTING, RH
BLACK,TRIM2#
72497BCOVER, VERTICAL ADJUSTER BRACKET, RH
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
BLACK,TRIM2#
72551BCOVER, RECLINING HINGE, RH
BLACK,TRIM2#
73910AAIRBAG ASSY, FRONT SEAT, RH
9011910601
9014810007
9356054012
9418560600
41 parts on this diagram · 5 diagrams in section
