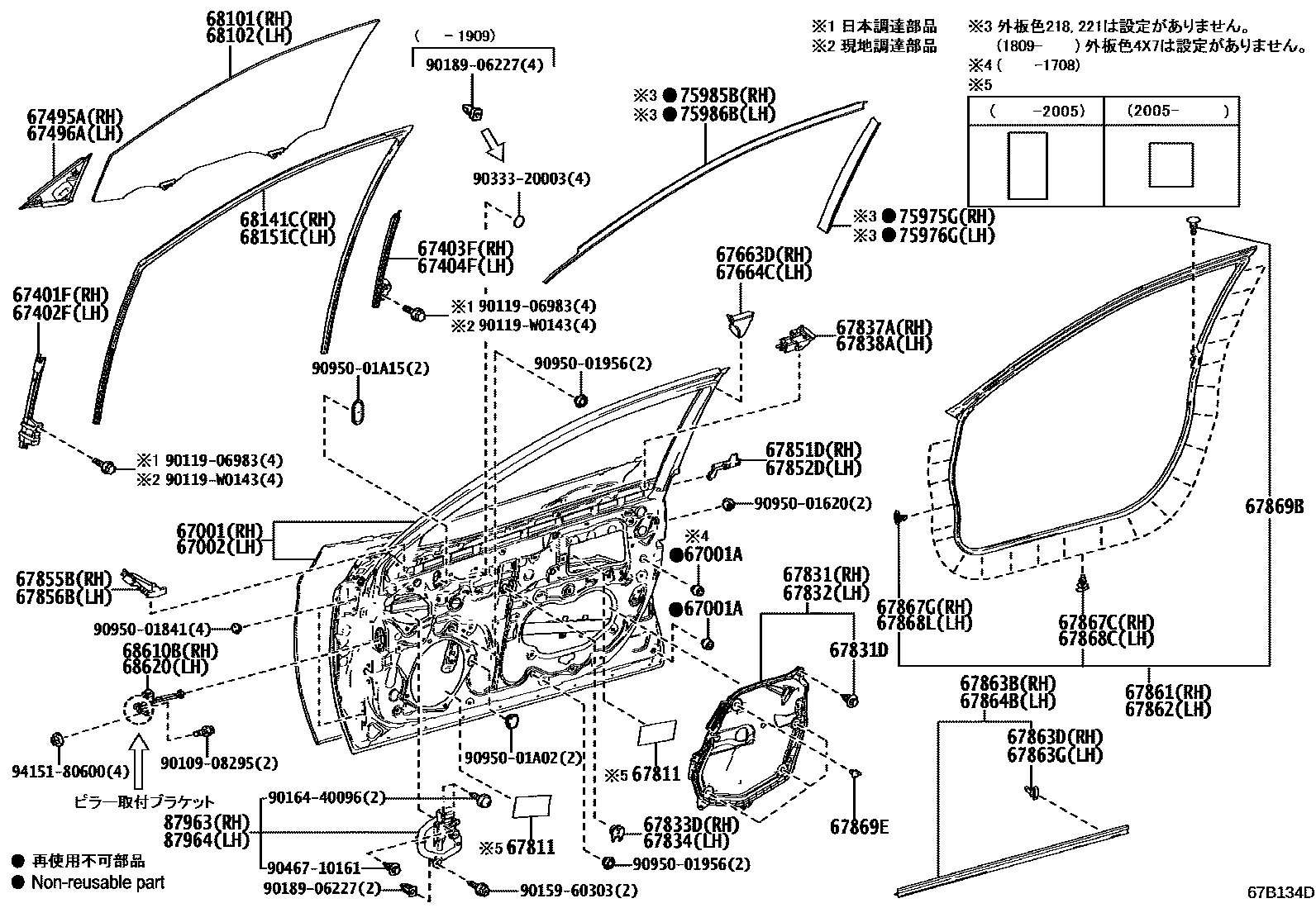

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-33230iAXVH7#201706-202101

main67001-33231iAXVH7#202305

67001ACUSHION, FRONT DOOR PANEL

main90541-09143×2iAXVH7#201708-202101

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-33250iAXVH7#202102-202304

main67002-33251iAXVH7#202305

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-33100iAXVH7#201706-202101

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-33110iAXVH7#201706-202101

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-33091iAXVH7#201706-202101

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-33091iAXVH7#201706-202101

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-33040iAXVH7#..X201706-202101

main67495-33060iAXVH7#..G,WS201706-202101

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-33030iAXVH7#..X202102

main67496-33050iAXVH7#..G,WS201706-202101

67663DGARNISH, DOOR FRAME, RH

main67663-33060iAXVH7#201706-202101

67664CGARNISH, DOOR FRAME, LH

main67664-33060iAXVH7#201706-202101

67811PAD, FRONT DOOR SILENCER

main67811-12180×4iAXVH7#202005-202101

main67811-33040×4iAXVH7#201706-202005

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-33130iAXVH7#202102

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×6iAXVH7#201706-202101

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-33130iAXVH7#201706-202101

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-47010iAXVH7#201706-202101

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-47010iAXVH7#201706-202101

67837ASEAL, FRONT DOOR VENT, RH

main67837-33030iAXVH70201706-201810

main67837-33031iAXVH7#201811-202101

67838ASEAL, FRONT DOOR VENT, LH

main67838-33020iAXVH70201706-201810

main67838-33021iAXVH7#201811-202101

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-33010iAXVH7#201706-202101

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-33010iAXVH7#201706-202101

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-33030iAXVH7#201706-202101

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-33010iAXVH7#201706-202101

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-33130supersedes 67861-33120iAXVH7#202102

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-33130supersedes 67862-33120iAXVH7#201706-202101

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-33050iAXVH7#202102

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-52010×8iAXVH7#201706-202101

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-52010×8iAXVH7#201706-202101

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-33050iAXVH7#201706-202101

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×22iAXVH7#201706-202101

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52030iAXVH7#201706-202101

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×22iAXVH7#201706-202101

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52030iAXVH7#201706-202101

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67868-30030×2iAXVH7#202102

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×8iAXVH7#201706-202101

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-33320iAXVH7#201706-202101

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-33330iAXVH7#201706-202101

68141CRUN, FRONT DOOR GLASS, RH

main68141-33130iAXVH7#201706-202101

main68141-33131iAXVH7#202209

68151CRUN, FRONT DOOR GLASS, LH

main68151-33120iAXVH7#201706-202101

main68151-33121iAXVH7#202209

68610BCHECK ASSY, FRONT DOOR, RH

main68610-33130iAXVH70201706-201712

main68610-33131iAXVH70201801-201802

main68610-33132iAXVH7#201802-202101

68620CHECK ASSY, FRONT DOOR, LH

main68610-33130iAXVH70201706-201712

main68610-33131iAXVH70201801-201802

main68610-33132iAXVH7#201802-202101

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-33040iAXVH7#201706-202101

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-33040iAXVH7#201706-202101

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-33040iAXVH7#201706-202101

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-33040iAXVH7#201706-202101

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-33030iAXVH7#201706-202101

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-33020iAXVH7#201706-202101

9010908295

main90109-08295

9011906983

main90119-06983

90119W0143

main90119-W0143

9015960303

main90159-60303

9016440096

main90164-40096

9018906227

main90189-06227

9033320003

main90333-20003

9046710161

main90467-10161

9095001620

main90950-01620

9095001841

main90950-01841

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A15

main90950-01A15

9415180600

main94151-80600

61 parts on this diagram · 2 diagrams in section
