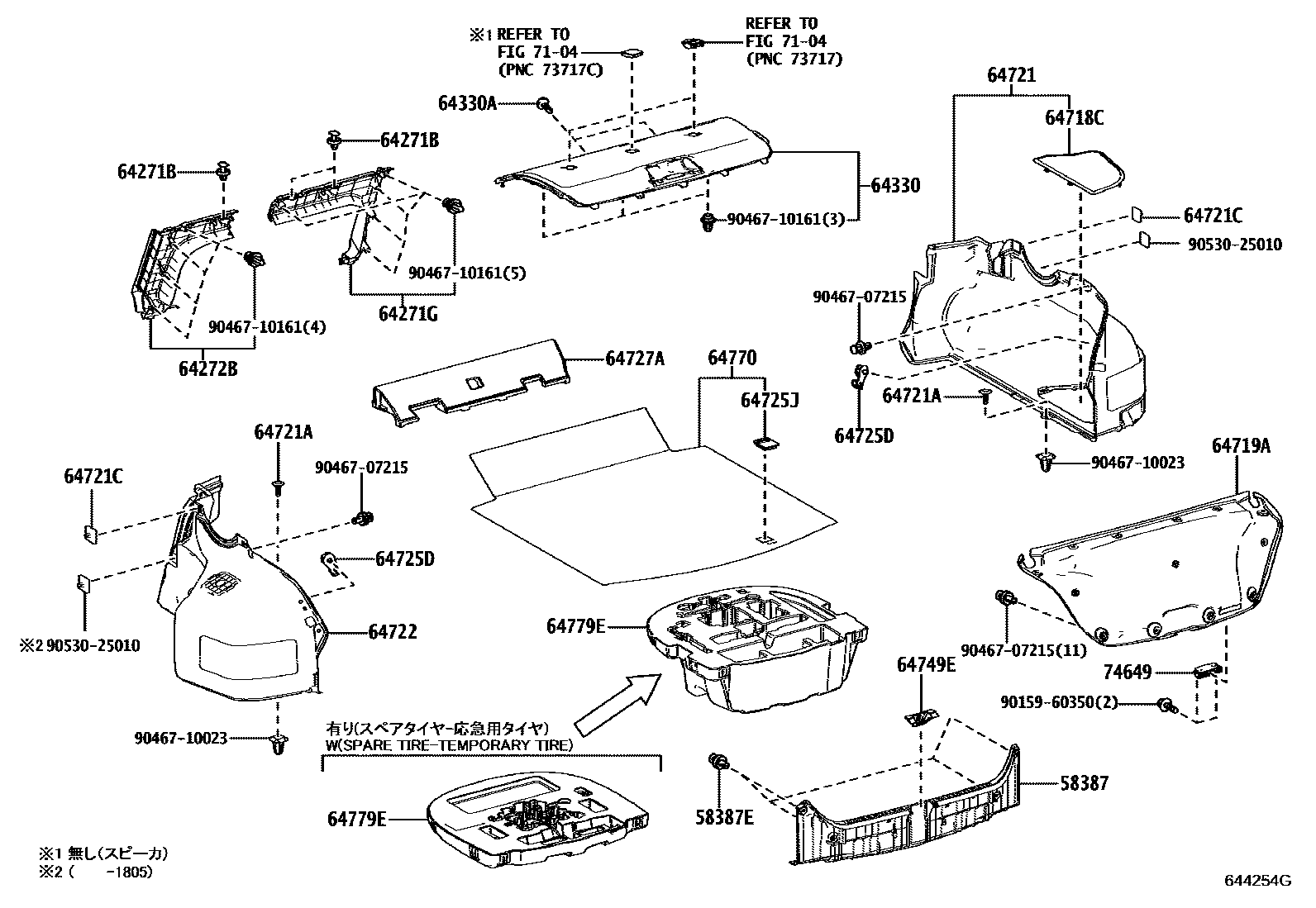

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-33140-C0iAXVH7#..G201706-202101

BLACK,TRIM2#

main58387-33140-C0iAXVH7#..WS,X201706-202101

BLACK,TRIM2#,4#

main58387-33140-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-07215iAXVH7#201706-202101

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-07220iAXVH7#201706-202101

64271GBOARD, ROOM PARTITION, RH

main64271-33120-C0iAXVH70..WS,X201706-202101

BLACK,TRIM2#,4#

main64271-33120-C0iAXVH70..WS,X201706-202101

BLACK,TRIM2#

main64271-33120-C0iAXVH70..WS201808-202101

BLACK,TRIM2#,3#

main64271-33150-C0iAXVH75..X201912-202101

BLACK,TRIM2#

main64271-33150-C0iAXVH75..WS201912-202101

BLACK,TRIM2#,3#

main64271-33150-C0iAXVH75..WS201912-202101

BLACK,TRIM2#,4#

64272BBOARD, ROOM PARTITION, LH

main64272-33060-C0iAXVH7#..X201706-202101

BLACK,TRIM2#

main64272-33060-C0iAXVH7#..X201706-202101

BLACK,TRIM2#,4#

main64272-33060-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-33810-C0iAXVH7#..G201706-202101

BLACK,TRIM2#,4#

main64330-33810-C0iAXVH7#..G201706-202101

BLACK,TRIM2#

main64330-33810-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

main64330-33860-C0iAXVH7#..G202102

main64330-33860-C0iAXVH7#..WS202102

main64330-33860-C0iAXVH70..G201808-201910

main64330-33860-C0iAXVH70..G201808-201910

main64330-33860-C0iAXVH7#..G201910-202101

main64330-33860-C0iAXVH7#..G201910-202101

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-05164-C7iAXVH7#..X201706-202101

BLACK,TRIM2#

sub90467-05164

main90467-05164-C7iAXVH7#..X201706-202101

BLACK,TRIM2#,4#

sub90467-05164

main90467-05164-C7iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

sub90467-05164

64718CCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-33030-C1iAXVH70..G201706-202101

BLACK,TRIM2#,4#

main64718-33030-C1iAXVH70..G201706-202101

BLACK,TRIM2#

main64718-33030-C1iAXVH70..WS201808-202101

BLACK,TRIM2#,3#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-33180-C1iAXVH7#..X201706-202101

BLACK,TRIM2#

main64719-33180-C1iAXVH7#..X201706-202101

BLACK,TRIM2#,4#

main64719-33180-C1iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-33200-C1iAXVH70..G201706-202101

BLACK,TRIM2#,4#

main64721-33200-C1iAXVH70..G201706-202101

BLACK,TRIM2#

main64721-33200-C1iAXVH70..WS201808-202101

BLACK,TRIM2#,3#

main64721-33210-C1iAXVH70..G202102

main64721-33210-C1iAXVH70..G201706-202101

main64721-33210-C1iAXVH70..WS201808-202101

main64721-33210-C1iAXVH70..G202102

main64721-33300-C0iAXVH75..WS201912-202101

BLACK,TRIM2#

main64721-33300-C0iAXVH75..G201912-202101

BLACK,TRIM2#,3#

main64721-33300-C0iAXVH75..G201912-202101

BLACK,TRIM2#,4#

main64721-33310-C0iAXVH75..X202008-202101

main64721-33310-C0iAXVH75..WS202008-202101

main64721-33310-C0iAXVH75..WS202008-202101

main64721-33310-C0iAXVH75..WS202102

main64721-33310-C0iAXVH75..WS202102

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08222-C1iAXVH7#201706-202101

BLACK

64721CCLIP(LUGGAGE COMPARTMENT)

main90530-25010iAXVH7#201706-202101

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-33200-C2iAXVH7#..G201706-202101

BLACK,TRIM2#,4#

main64722-33200-C2iAXVH7#..X201706-202101

BLACK,TRIM2#

main64722-33200-C2iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-33090-C2iAXVH7#..WS,X201706-202101

BLACK,TRIM2#,4#

main64725-33090-C2iAXVH7#..X201706-202101

BLACK,TRIM2#

main64725-33090-C2iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-33100iAXVH7#201706-202101

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-33060iAXVH70201706-202101

main64727-33090iAXVH75201912-202007

sub64727-33091

main64727-33091iAXVH75202008-202101

64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-33030-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

main64749-33030-C0iAXVH7#..X201706-202101

BLACK,TRIM2#,4#

main64749-33030-C0iAXVH7#..WS,X201706-202101

BLACK,TRIM2#

64770COVER ASSY, SPARE WHEEL

main64770-33140-C1iAXVH70..WS,X201706-202101

BLACK,TRIM2#,4#

main64770-33140-C1iAXVH70..G201706-202101

BLACK,TRIM2#

main64770-33140-C1iAXVH70..WS201808-202101

BLACK,TRIM2#,3#

main64770-33160-C1iAXVH70..WS202102

main64770-33160-C1iAXVH70..G202102

main64770-33160-C1iAXVH70..G201706-202101

main64770-33160-C1iAXVH70..WS201808-202101

main64770-33200-C0iAXVH75..G201912-202007

BLACK,TRIM2#,4#

sub64770-33201

main64770-33200-C0iAXVH75..WS,X201912-202007

BLACK,TRIM2#

sub64770-33201

main64770-33201-C0iAXVH75..G202008-202101

BLACK,TRIM2#,3#

main64770-33201-C0iAXVH75..WS202008-202101

BLACK,TRIM2#,4#

main64770-33201-C0iAXVH75..WS202008-202101

BLACK,TRIM2#

64779ETRAY, SPARE WHEEL COVER

main64779-33140iAXVH75201912-202101

main64779-33150iAXVH75..G,WS202102

main64779-33150iAXVH75202008-202101

main64779-33240iAXVH70201706-202101

main64779-33260iAXVH70201706-202101

main64779-33270iAXVH70..G,WS202102

main64779-33270iAXVH70..G,WS201706-202101

7104

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010-C3iAXVH7#..G201706-202101

BLACK,TRIM2#,4#

sub74649-51010

main74649-51010-C3iAXVH7#..WS,X201706-202101

BLACK,TRIM2#

sub74649-51010

main74649-51010-C3iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

sub74649-51010

9015960350

main90159-60350

9046707215

main90467-07215

9046710023

main90467-10023

9046710161

main90467-10161

9053025010

main90530-25010

26 parts on this diagram · 2 diagrams in section
