FLOOR PAN & LOWER BACK PANEL

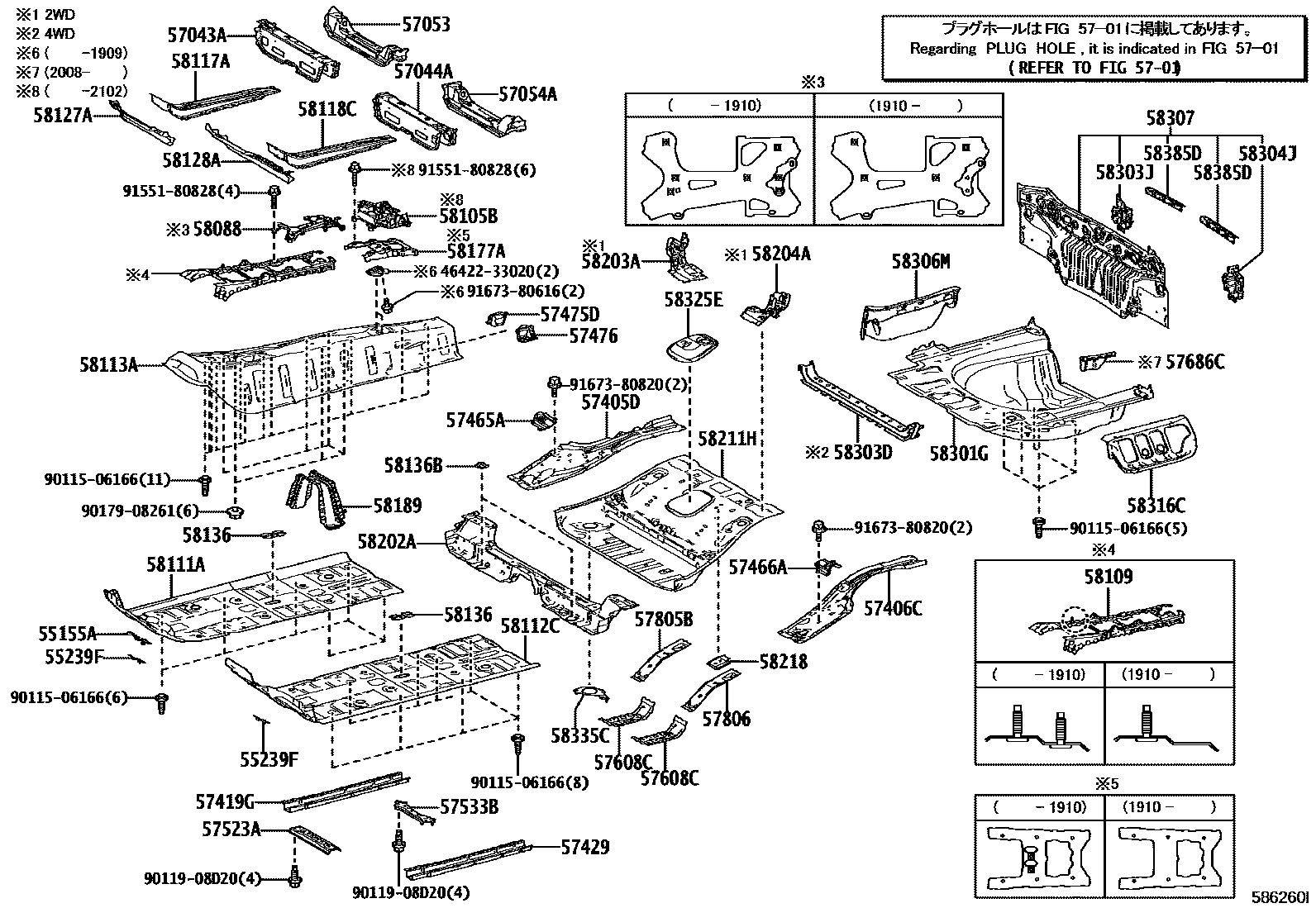

Parts diagram
55155ABRACKET, ACCELERATOR PEDAL
main55155-33030i201706-202101
55239FPLATE, DASH PANEL INSULATOR, NO.3
main55239-33030×2i201706-202101
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
main57043-33060i201706-202101
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
main57044-33050i201706-202101
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
main57053-33040i201706-202101
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
main57054-33080i201706-202101
57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH
main57405-33020i201706-202101
57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH
main57406-33020i201706-202101
57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH
main57419-33080i201706-202101
57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH
main57419-33080i201706-202101
57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH
main57465-33020i201706-201906
main57465-33021i201907-202101
57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH
main57466-33010i201706-202101
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
main57475-33020i201706-202101
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
main57476-33020i201706-202101
57523ABRACE, CENTER FLOOR CROSSMEMBER
main57523-33010i201706-202101
57533BBRACE, FRONT FLOOR, CENTER
main57533-33040i201706-202101
57608CBRACKET SUB-ASSY, FUEL TANK MOUNTING
main57608-33060×2i201706-202101
57686CBRACKET, FUEL TANK MOUNTING, NO.3
main57686-33050i202008-202101
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
main57805-33030i201706-202101
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
main57805-33030i201706-202101
58088BRACKET SUB-ASSY, FLOOR SHIFT LINK
main58088-33020i201706-202101
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
main58105-33030i201706-202101
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
main58109-33010i201706-201910
sub58109-06010
main58109-33011i201910-202101
58111APAN, FRONT FLOOR, RH
main58111-33110i201706-201909
main58111-33111i201910-202101
main58111-33130i202301
58112CPAN, FRONT FLOOR, LH
main58112-33010i201706-201909
main58112-33011i201910-202101
main58112-33070i202301
58113APANEL, FRONT FLOOR, CENTER
main58113-33010i201706-201910
sub58113-06010
main58113-33011i201910-202101
main58113-33050i202301
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
main58117-33010i201706-202101
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
main58117-33010i202102
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
main58127-33010i201706-201908
main58127-33050i201909-202101
58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH
main58128-33010i201706-201908
main58128-33040i201909-202101
58136COVER, FRONT FLOOR HOLE
main58136-33010×2i201706-202101
58136BCOVER, CENTER FLOOR HOLE
main58136-33020×2i201706-202101
58177AEXTENSION, FRONT FLOOR PANEL, RH
main58177-33010i201706-201910
sub58177-06010
main58177-33011i202102
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
main58189-33080i201706-202101
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
main58202-33030i201706-202101
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
main58203-33040i201706-202101
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
main58204-33040i201706-202101
58211HPAN, CENTER FLOOR
main58211-33201i201907-202101
main58211-33900i201706-201907
sub58211-33902
main58211-33901i201912-202101
58218PLATE, SEAT FLOOR PANEL
main58218-33040i201706-202101
58301GPAN SUB-ASSY, REAR FLOOR
main58301-33901i201706-201806
main58301-33907i202102
main58301-33910i201912-202004
main58301-33911i202102
main58301-33902i201706-201805
main58301-33909i202102
58303DPANEL SUB-ASSY, REAR FLOOR PARTITION
main58303-33070i201912-202101
58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
main58303-33040i201706-202101
58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
main58304-33030i201706-202101
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
main58306-33040i201706-202101
58307PANEL SUB-ASSY, BODY LOWER BACK
main58307-33180i201706-202101
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
main58316-33030i201706-202101
58325ECOVER, REAR FLOOR SERVICE HOLE
main58325-33090i201706-202101
58335CPLATE, FLOOR SIDE, FRONT RH
main58335-33030i201706-202101
58385DBRACKET, REAR BUMPER COVER
main58385-33060×2i201706-202101
4642233020CAP, PARKING BRAKE CABLE, CASING
main46422-33020
9011506166
main90115-06166
9011908D20
main90119-08D20
9017908261
main90179-08261
9155180828
main91551-80828
9167380616
main91673-80616
9167380820
main91673-80820

57 parts on this diagram · 1 diagram in section
