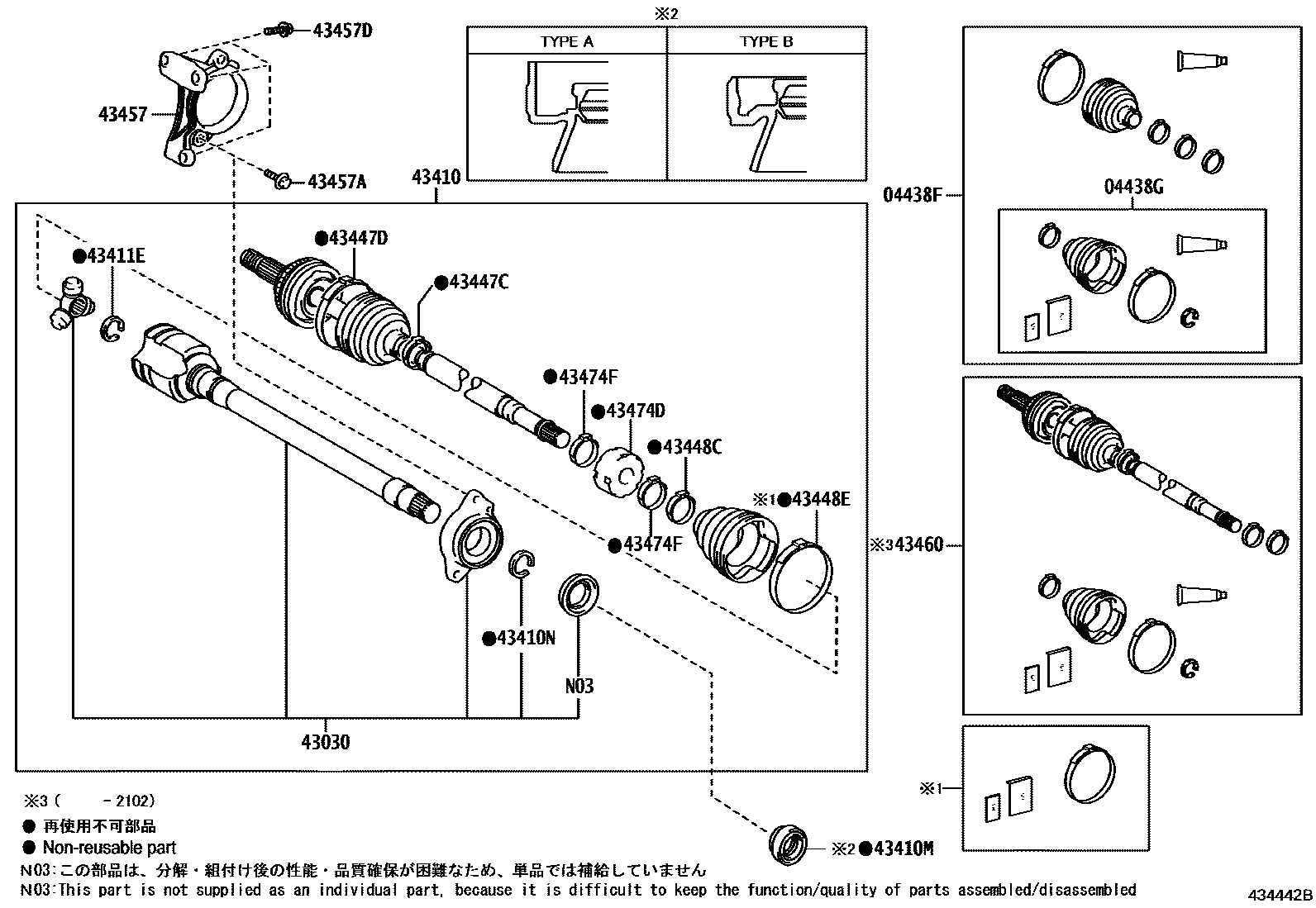

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-33120iAXVH7#202102

main04427-33130iAXVH7#201706-202101

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-33090iAXVH7#201706-202101

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-33070iAXVH7#201706-202101

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-33360iAXVH7#201706-202101

main43410-33430iAXVH7#202102

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iAXVH7#202102

main90311-40049iAXVH70201902-202101

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iAXVH7#201706-202101

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iAXVH7#201706-202101

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iAXVH7#202102

main42345-42120iAXVH7#201706-202101

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iAXVH7#202102

main42345-42110iAXVH7#201706-202101

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-28090iAXVH7#202310

main42345-33120iAXVH7#201706-202101

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33140iAXVH7#202102

43457BRACKET, DRIVE SHAFT BEARING

main43457-33060iAXVH7#201706-202101

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2iAXVH7#201706-202101

main90105-W0214×2iAXVH7#202102

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iAXVH7#201706-202101

main90105-W0215×3iAXVH7#202102

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-80413iAXVH70201706-201711

main43470-80459iAXVH7#201711-202101

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-48080iAXVH7#201706-202101

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12090×2iAXVH7#201706-202101

17 parts on this diagram · 2 diagrams in section
