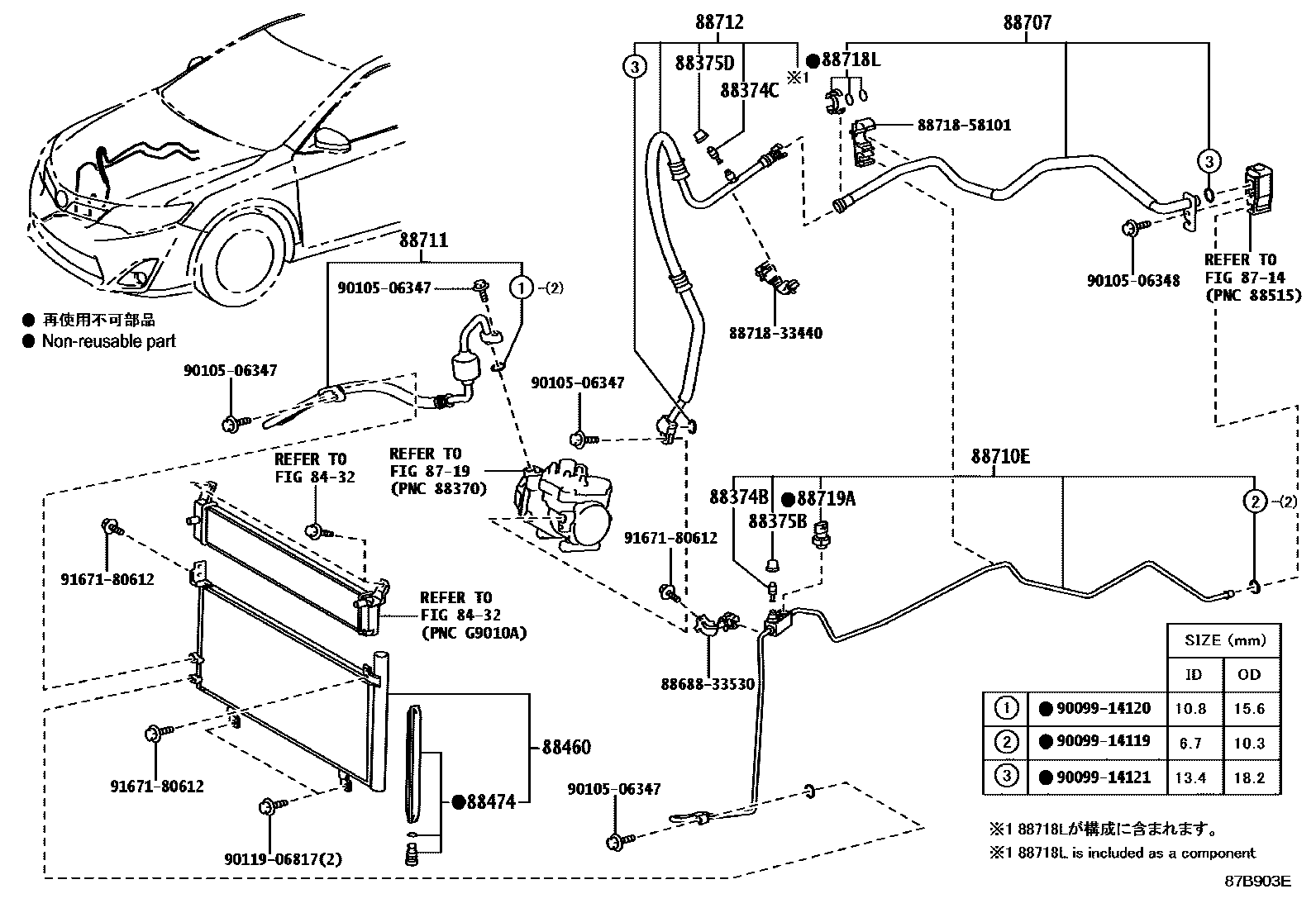

HEATING & AIR CONDITIONING - COOLER PIPING

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAVV50201108-201704

88374CVALVE, SERVICE, NO.2

main88374-30010iAVV50201108-201704

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAVV50201108-201704

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAVV50201108-201704

88460CONDENSER ASSY, COOLER

main88460-33130iAVV50201108-201704

88474DRYER, COOLER

main88474-47020iAVV50201108-201704

88707PIPE SUB-ASSY, SUCTION

main88707-33060iAVV50201108-201704

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-33380iAVV50201108-201704

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33280iAVV50201108-201704

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-33310iAVV50201108-201704

88718LCLAMP, PIPING

main88718-52280iAVV50201108-201704

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAVV50201108-201704

8868833530BRACKET, COOLER DIAPHRAGM

main88688-33530

8871833440PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33440

8871858101PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58101

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

9011906817

main90119-06817

9167180612

main91671-80612

25 parts on this diagram · 1 diagram in section
