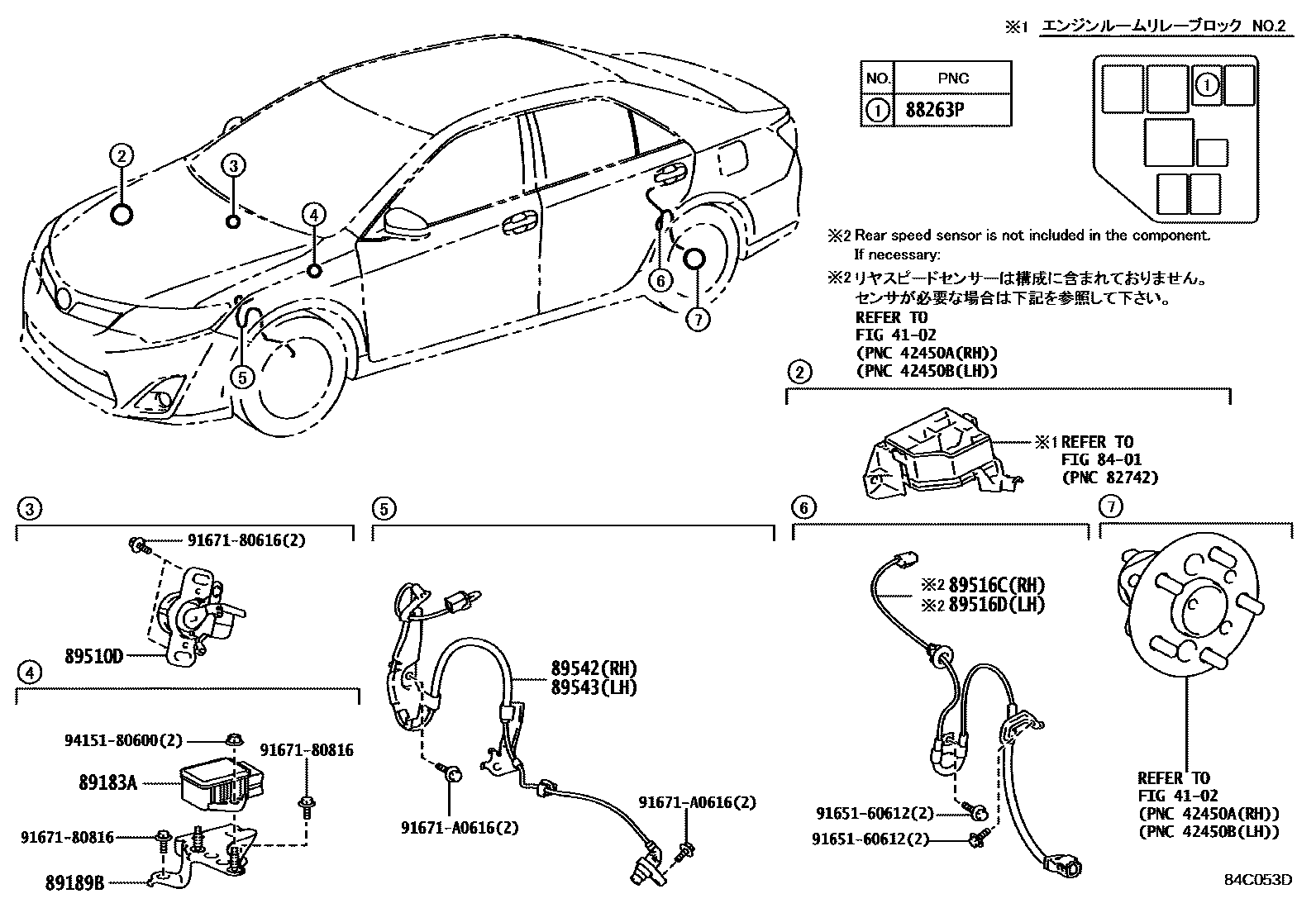

ABS & VSC

0001 1 0002 1

4102

8401

88263PRELAY, STOP LAMP CONTROL

main90987-04004iAVV50201108-201409

89183ASENSOR, YAWRATE

main89183-48030iAVV50201108-201203

89189BBRACKET, YAWRATE SENSOR

main89189-33010iAVV50201108-201203

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iAVV50201108-201704

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-33070iAVV50201108-201704

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-33080iAVV50201108-201704

89542SENSOR, SPEED, FRONT RH

main89542-33100iAVV50201108-201409

sub89542-33120

main89542-33120iAVV50201409-201704

89543SENSOR, SPEED, FRONT LH

main89543-33090iAVV50201108-201409

sub89543-33110

main89543-33110iAVV50201409-201704

9165160612

main91651-60612

9167180616

main91671-80616

9167180816

main91671-80816

91671A0616

main91671-A0616

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
