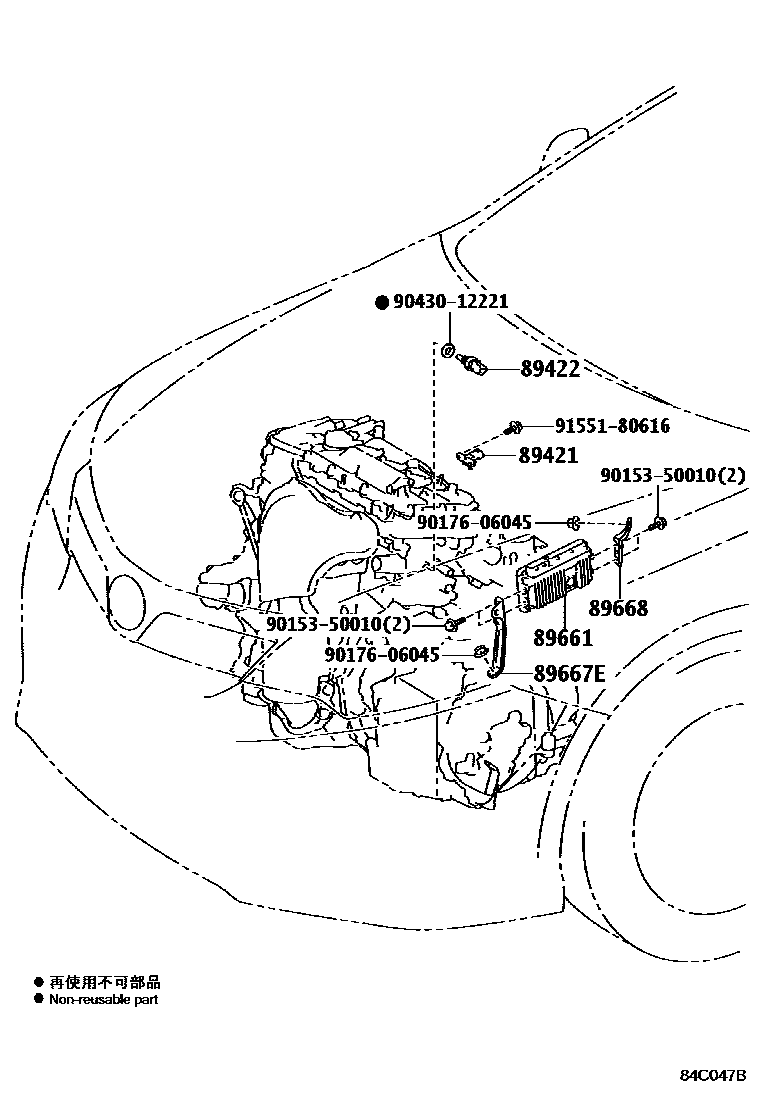

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iAVV50201108-201704

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAVV50201108-201704

89661COMPUTER, ENGINE CONTROL

main89661-33G70iAVV50201108-201302

sub89661-33G71

main89661-33G71iAVV50201303-201402

sub89661-33G72

main89661-33G72iAVV50201403-201409

sub89661-33G73

main89661-33N80iAVV50201409-201704

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33150iAVV50201108-201704

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33230iAVV50201108-201704

9015350010

main90153-50010

9017606045

main90176-06045

9043012221

main90430-12221

9155180616

main91551-80616

9 parts on this diagram · 1 diagram in section
