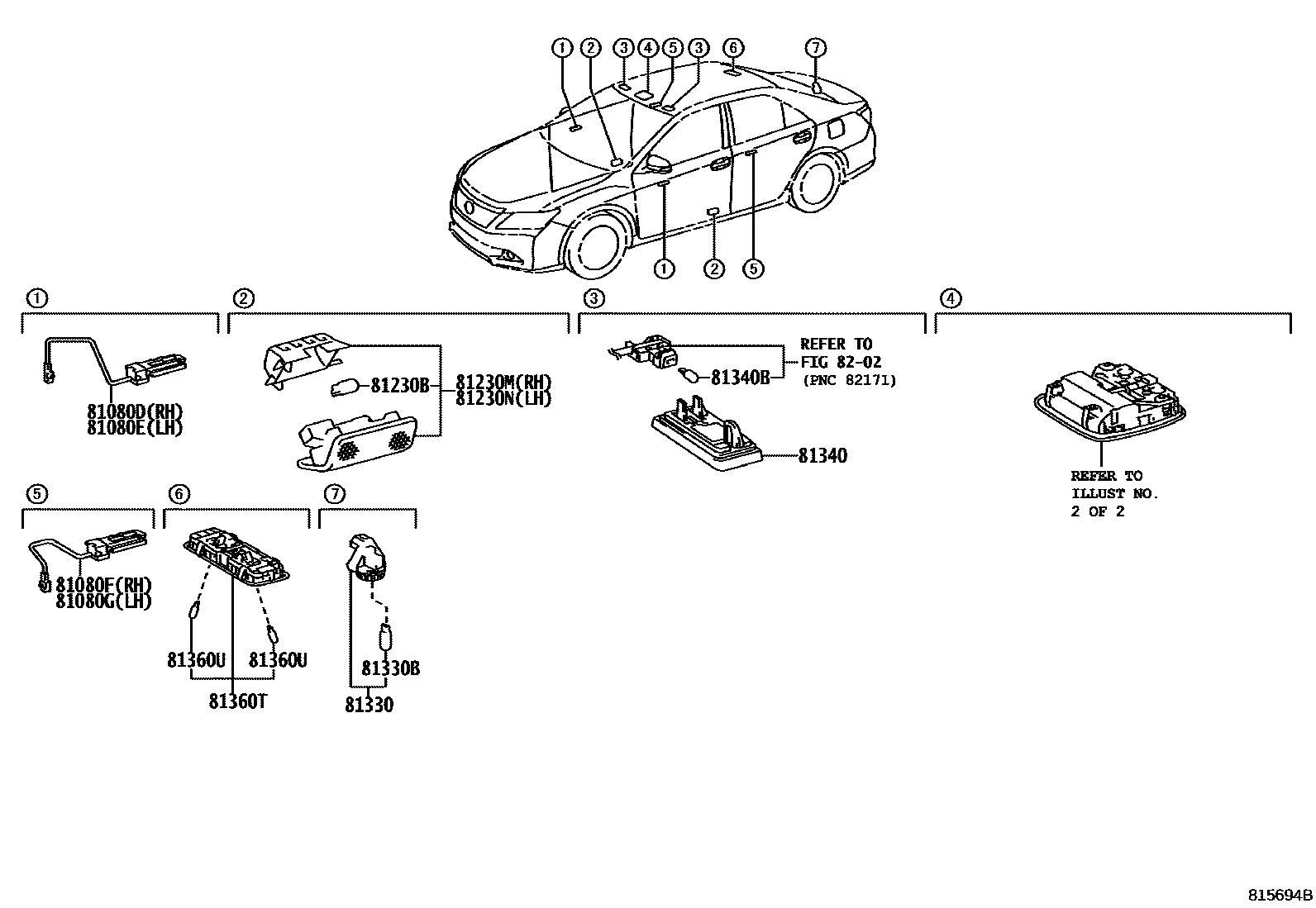

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81230BBULB(FOR COURTESY LAMP)
81230MLAMP ASSY, COURTESY, RH
81230NLAMP ASSY, COURTESY, LH
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
SHELL,TRIM0#
GRAY,TRIM2#
81340BBULB (FOR VANITY LAMP)
81360TLAMP ASSY, SPOT
SHELL,TRIM0#
GRAY,TRIM2#
FLAXEN,TRIM0#
GRAY,TRIM2#
81360UBULB, SPOT LAMP
8202
14 parts on this diagram · 4 diagrams in section
