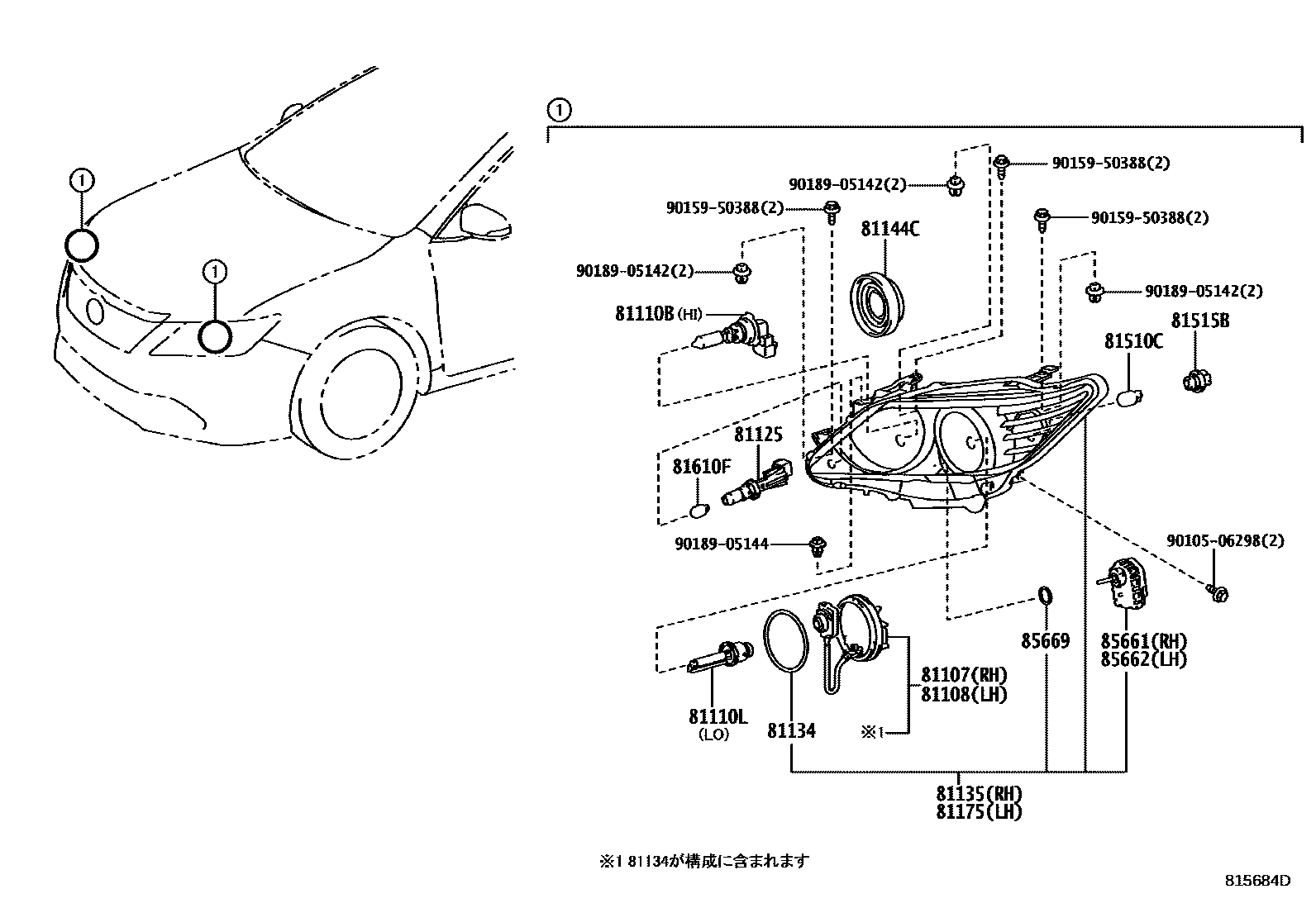

HEADLAMP

0001 1��������� �������� 0002 1LED �������� 0003 1��������� �������� 0004 1LED ��������

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-75020iAVV50201108-201704

main81107-47290iAVV50201309-201409

main81107-60G20iAVV50201505-201704

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-75020iAVV50201108-201704

main81107-47290iAVV50201309-201409

main81107-60G20iAVV50201505-201704

81110HEADLAMP ASSY, RH

main81110-33A10iAVV50201409-201501

sub81110-33A11

main81110-33E60iAVV50201505-201704

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iAVV50201108-201704

81110LBULB, DISCHARGE HEADLAMP

main90981-20024iAVV50201108-201704

81125CORD, HEADLAMP

main81125-48470iAVV50201108-201409

81134GASKET, HEADLAMP

main90075-68007iAVV50201309-201409

81135UNIT ASSY, HEADLAMP, RH

main81145-33850iAVV50201108-201409

main81145-33A10iAVV50201409-201501

sub81145-33A11

main81145-33A11iAVV50201501-201704

main81145-33A80iAVV50201309-201409

main81145-33E60iAVV50201505-201704

81144CCOVER, HEADLAMP SOCKET

main90075-65006iAVV50201108-201704

81175UNIT ASSY, HEADLAMP, LH

main81185-33850iAVV50201108-201409

main81185-33A10iAVV50201409-201501

sub81185-33A11

main81185-33A11iAVV50201501-201704

main81185-33A30iAVV50201309-201409

main81185-33E60iAVV50201505-201704

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iAVV50201108-201704

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iAVV50201108-201704

main81125-20A30iAVV50201309-201409

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iAVV50201108-201409

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020iAVV50201409-201704

main85661-12020iAVV50201108-201409

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020iAVV50201108-201409

main85661-12020iAVV50201409-201704

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iAVV50201108-201704

9010506298

main90105-06298

9015950388

main90159-50388

9018905142

main90189-05142

9018905144

main90189-05144

20 parts on this diagram · 4 diagrams in section
