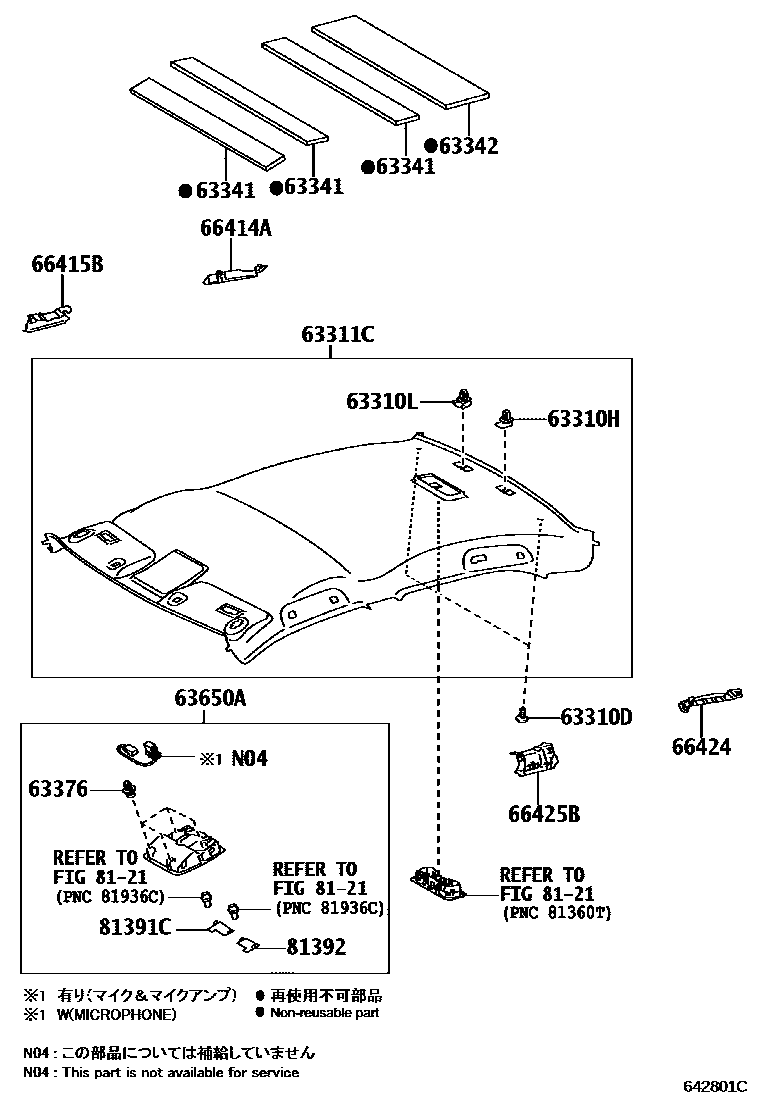

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1��(��� ���)

63310DCLIP, ROOF HEADLINING

main90467-05164-A4iAVV50201108-201409

SHELL,TRIM0#

sub90467-05164

main90467-05164-A8iAVV50201409-201704

FLAXEN,TRIM0#

sub90467-05164

main90467-05164-B6iAVV50201108-201704

GRAY,TRIM2#

sub90467-05164

63310HCLIP(FOR ROOF HEADLINING)

main90467-09126iAVV50201108-201704

63310LCAP(FOR ROOF HEADLINING)

main90467-10181iAVV50201108-201704

63311CHEADLINING, ROOF

main63311-33060-A1iAVV50201108-201409

SHELL,TRIM0#

sub63311-33150

sub90467-09126

sub90467-10181

main63311-33060-A2iAVV50201409-201704

FLAXEN,TRIM0#

sub63311-33150

sub90467-09126

sub90467-10181

main63311-33060-B1iAVV50201108-201704

GRAY,TRIM2#

sub63311-33150

sub90467-09126

sub90467-10181

63341PAD, ROOF SILENCER, NO.1

main63341-33060iAVV50201108-201704

63342PAD, ROOF SILENCER, NO.2

main63342-33120iAVV50201108-201704

63376CLIP, HEADLINING

main90467-10167iAVV50201108-201704

main90467-10167iAVV50201108-201409

main90467-10167iAVV50201409-201704

63650ABOX ASSY, ROOF CONSOLE

main63650-33400-A0iAVV50201111-201409

SHELL,TRIM0#

main63650-33400-B0iAVV50201108-201409

GRAY,TRIM2#

main63650-33690-B0iAVV50201409-201704

GRAY,TRIM2#

66414ASPACER, SIDE RAIL, REAR RH

main62495-33010iAVV50201108-201704

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-33020iAVV50201108-201704

66424SPACER, SIDE RAIL, REAR LH

main62496-33010iAVV50201108-201704

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-33020iAVV50201108-201704

8121

81391CHOLDER, LENS, FRONT RH

main81391-33010iAVV50201108-201704

81392HOLDER, LENS, FRONT LH

main81392-33010iAVV50201108-201704

15 parts on this diagram · 2 diagrams in section
