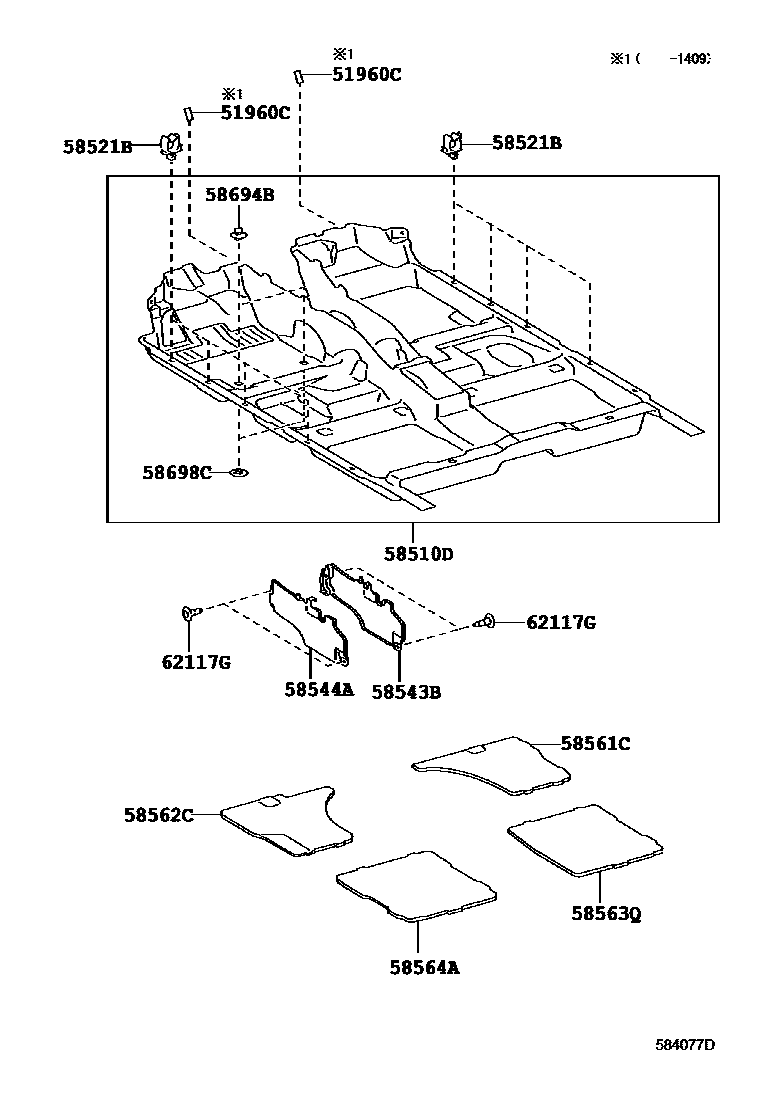

MAT & CARPET

51960CHOOK ASSY, FRONT

main51960-33030iAVV50201108-201409

58510DCARPET ASSY, FLOOR, FRONT

main58510-33700-A0iAVV50201309-201409

SHELL,TRIM0#

sub58510-33810

main58510-33700-C0iAVV50201108-201409

BLACK,TRIM2#

sub58510-33810

main58510-33810-A0iAVV50201409-201510

FLAXEN,TRIM00

main58510-33810-C0iAVV50201409-201510

BLACK,TRIM00,2#

main58510-33810-C0iAVV50201510-201704

BLACK,TRIM0#,2#

58521BHOOK, FLOOR CARPET

main58521-33080iAVV50201108-201704

58543BBRACKET, FLOOR CARPET, RH

main58543-33080iAVV50201108-201704

58544ABRACKET, FLOOR CARPET, LH

main58544-33080iAVV50201108-201704

58561CSILENCER, FRONT FLOOR, NO.1

main58561-33060iAVV50201108-201304

sub58561-33061

main58561-33061iAVV50201305-201704

58562CSILENCER, FRONT FLOOR, NO.2

main58562-33080iAVV50201108-201304

sub58562-33081

main58562-33081iAVV50201305-201704

58563QSILENCER, FRONT FLOOR, NO.3

main58563-33060iAVV50201108-201304

sub58563-33061

main58563-33061iAVV50201305-201704

58564ASILENCER, FRONT FLOOR, NO.4

main58564-33070iAVV50201108-201304

sub58564-33071

main58564-33071iAVV50201305-201704

58694BPLATE, MAT SET, UPPER

main58694-76010iAVV50201108-201704

58698CPLATE, MAT SET, LOWER

main58698-76010iAVV50201108-201704

62117GCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-07076-C0iAVV50201108-201703

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iAVV50201703-201704

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

12 parts on this diagram · 1 diagram in section
