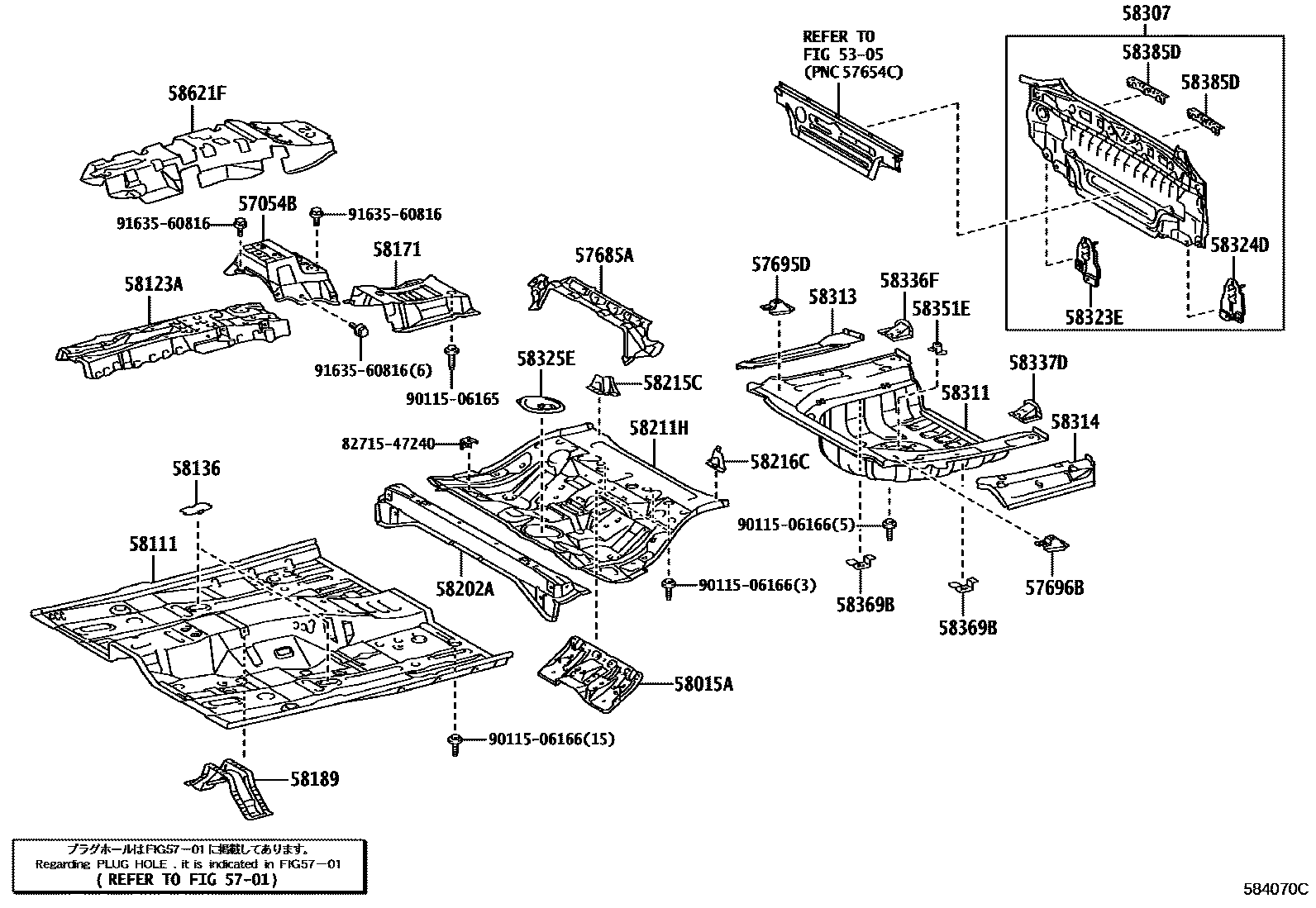

FLOOR PAN & LOWER BACK PANEL
5305
5701
57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4
57685ABRACKET, REAR FLOOR MOUNTING, NO.1 RH
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58211HPAN, CENTER FLOOR
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58351EBRACKET, SPARE WHEEL CLAMP
58369BBRACKET, FUEL TUBE, NO.3
58385DBRACKET, REAR BUMPER COVER
58621FSILENCER, CENTER CONSOLE, NO.1
8271547240BRACKET,WIRING HARNESS CLAMP
9011506165
9011506166
9163560816
33 parts on this diagram · 3 diagrams in section
