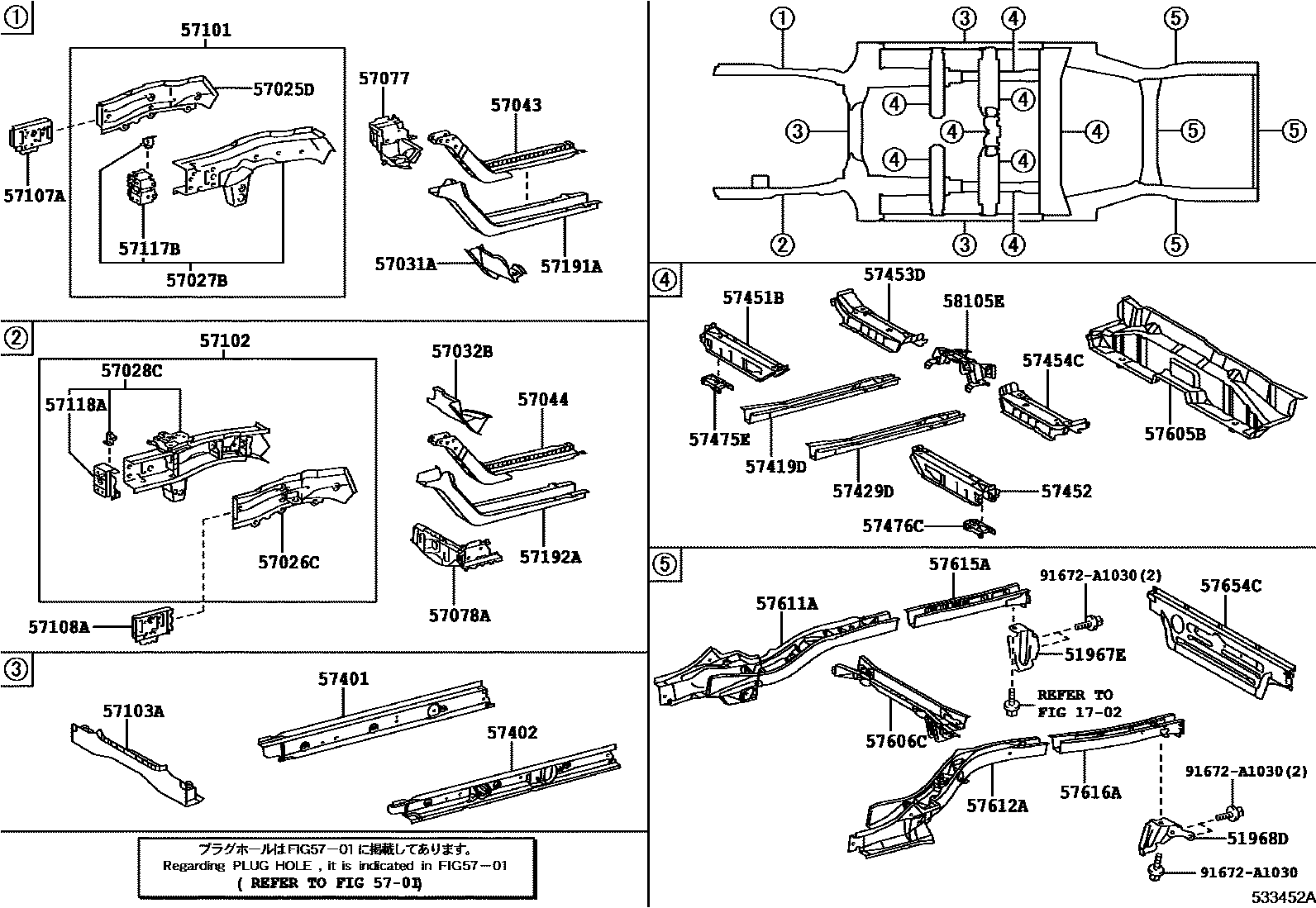

FLOOR SIDE MEMBER

1702

51967EHOOK, TRANSPORT, REAR RH

main51967-33030iAVV50201108-201704

51968DHOOK, TRANSPORT, REAR LH

main51968-33030iAVV50201108-201704

5701

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-33020iAVV50201108-201704

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-33020iAVV50201108-201704

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-33011iAVV50201108-201704

57028CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-33051iAVV50201108-201704

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-33010iAVV50201108-201506

sub57031-33011

main57031-33011iAVV50201507-201704

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-33010iAVV50201108-201506

sub57032-33011

main57032-33011iAVV50201507-201704

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-33040iAVV50201108-201704

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-33020iAVV50201108-201704

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-33040iAVV50201108-201704

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-33040iAVV50201108-201506

sub57078-33041

main57078-33041iAVV50201507-201704

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-33904iAVV50201108-201704

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-33904iAVV50201108-201704

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-33051iAVV50201108-201501

sub57103-33052

main57103-33052iAVV50201502-201704

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-33032iAVV50201108-201704

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-33032iAVV50201108-201704

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-33050iAVV50201108-201704

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-33050iAVV50201108-201704

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-33010iAVV50201108-201704

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-33010iAVV50201108-201704

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-33121iAVV50201108-201704

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-33121iAVV50201108-201704

57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-33050iAVV50201108-201704

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-33020iAVV50201108-201704

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-33060iAVV50201108-201704

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-33031iAVV50201108-201704

57453DMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-33060iAVV50201108-201704

57454CMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-33060iAVV50201108-201704

57475EPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-33010iAVV50201108-201704

57476CPLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-33010iAVV50201108-201704

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-33110iAVV50201108-201704

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-33140iAVV50201108-201704

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-33901iAVV50201108-201704

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-33901iAVV50201108-201704

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-33921iAVV50201108-201704

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-33914iAVV50201108-201704

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-33020iAVV50201108-201704

58105EPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-33020iAVV50201108-201704

91672A1030

main91672-A1030

42 parts on this diagram · 1 diagram in section
