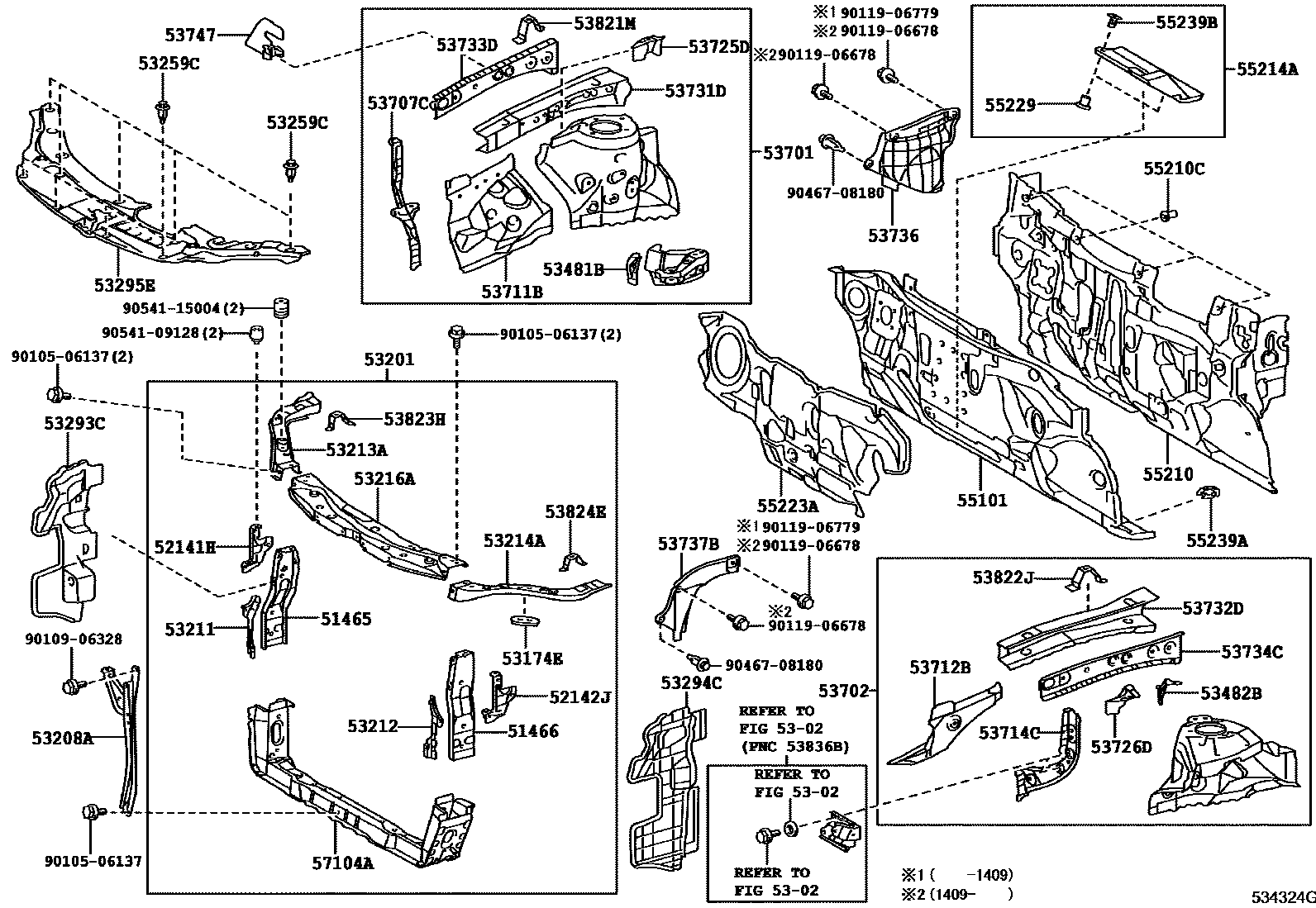

FRONT FENDER APRON & DASH PANEL
51465BRACE, RADIATOR SUPPORT, UPPER RH
51466BRACE, RADIATOR SUPPORT, UPPER LH
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
5302
53174EBRACKET, RADIATOR SUPPORT SIDE
53201SUPPORT SUB-ASSY, RADIATOR
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53295ESEAL, COOL AIR INTAKE DUCT
53481BBRACKET, HOOD SUPPORT, RH
53482BBRACKET, HOOD SUPPORT LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53726DAPRON, FRONT FENDER NO.2 SIDE, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53747PLATE, AIR SEALED, RH
53821MBRACKET, FRONT FENDER, REAR NO.1 RH
53822JBRACKET, FRONT FENDER, REAR NO.1 LH
53823HGUSSET, FRONT FENDER, RH
53824EGUSSET, FRONT FENDER, LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55210CCLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55223AINSULATOR, DASH PANEL, OUTER
55229PLATE, DASH PANEL INSULATOR, NO.4
55239APLATE, DASH PANEL INSULATOR, NO.3
55239BPLATE, FRONT FLOOR FOOTREST, NO.2
9010506137
main90105-06137
9010906328
main90109-06328
9011906678
main90119-06678
9011906779
main90119-06779
9046708180
main90467-08180
9054109128
main90541-09128
9054115004
main90541-15004
54 parts on this diagram · 1 diagram in section
