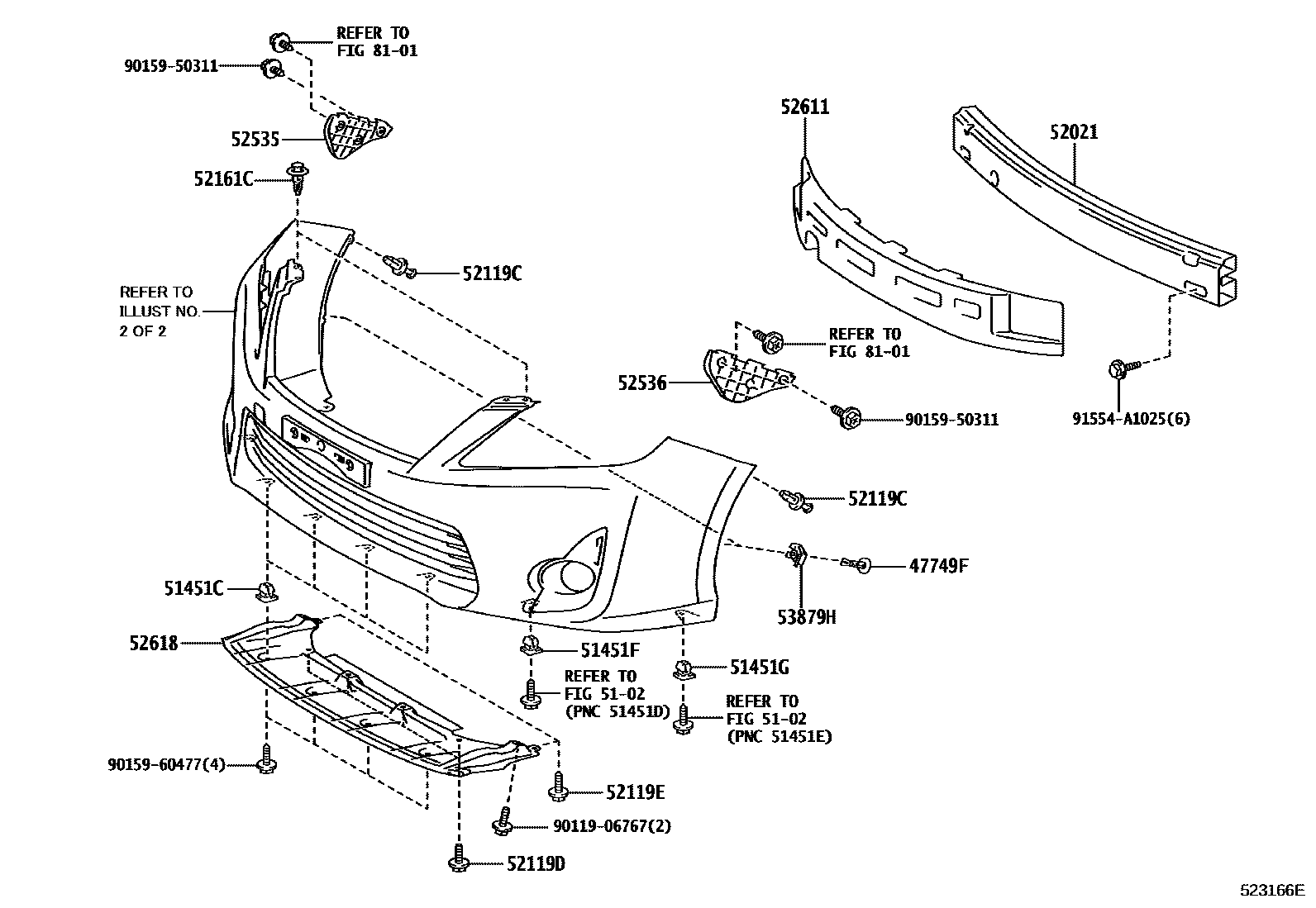

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-58010iAVV50201108-201704

5102

51451CGROMMET(FOR ENGINE UNDER COVER)

main90189-06193iAVV50201108-201704

51451FGROMMET, NO.1

main90189-06193iAVV50201108-201704

51451GGROMMET, NO.2

main90189-06193iAVV50201108-201704

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-33180iAVV50201108-201304

sub52021-33181

main52021-33181iAVV50201305-201704

52119CCLIP, FRONT BUMPER COVER

main90467-05090-B1iAVV50201108-201212

DK.GRAY

sub90467-05090

main90467-05170iAVV50201301-201704

52119DSCREW, NO.1

main90119-06767iAVV50201108-201605

main90119-06A13iAVV50201606-201704

52119ESCREW, NO.2

main90159-60477iAVV50201108-201704

52161CPIECE, FRONT BUMPER

main52161-16010iAVV50201108-201704

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-33050iAVV50201108-201704

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-33050iAVV50201108-201704

52611ABSORBER, FRONT BUMPER ENERGY

main52611-33210iAVV50201108-201409

main52611-33260iAVV50201409-201704

52618ABSORBER, FRONT BUMPER, LOWER

main52618-33020iAVV50201108-201309

sub52618-33021

main52618-33021iAVV50201310-201409

sub52618-33022

main52618-33022iAVV50201409-201704

53879HRETAINER, FRONT FENDER LINER

main53879-30040iAVV50201108-201409

main53879-30050iAVV50201409-201704

8101

9011906767

main90119-06767

9015950311

main90159-50311

9015960477

main90159-60477

91554A1025

main91554-A1025

20 parts on this diagram · 4 diagrams in section
